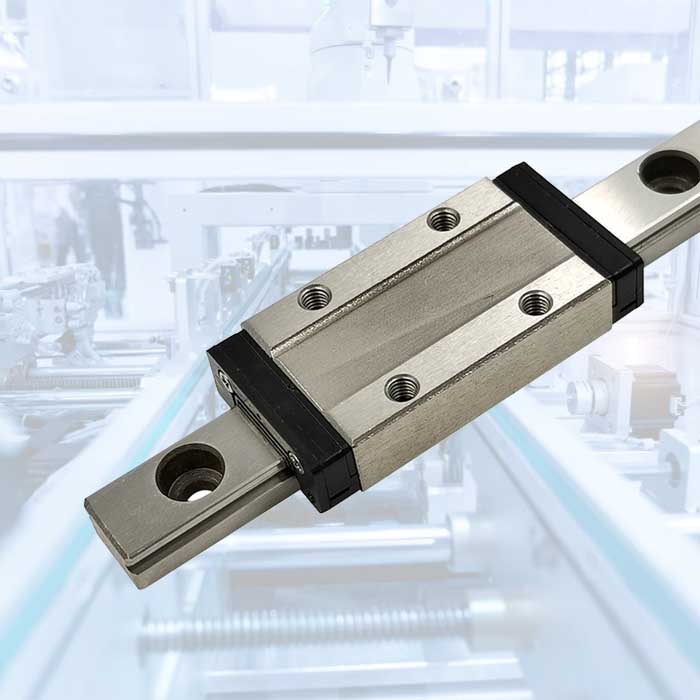

Product name:300mm linear guide with 2 linear blocks mgn9h
Series:MGN
Size:9
Block No:MGN9H, MGN9HZFC, MGN9HZ0C, MGN9HZ0H, MGN9H7CZ1C, MGN9HZ1H
Block Type: Long
Block preload:Light Clearance(ZF), Very Light Preload（Z0), Light Preload (Z1)
Precision code/Accuracy Classes: C,H
| Class | Code | Preload | Accuracy |
| Light Clearance | ZF | Clearance 4~10μm | C |
| Very light preload | Z0 | 0 | C-P |
| Light preload | Z1 | 0.02C | C-P |

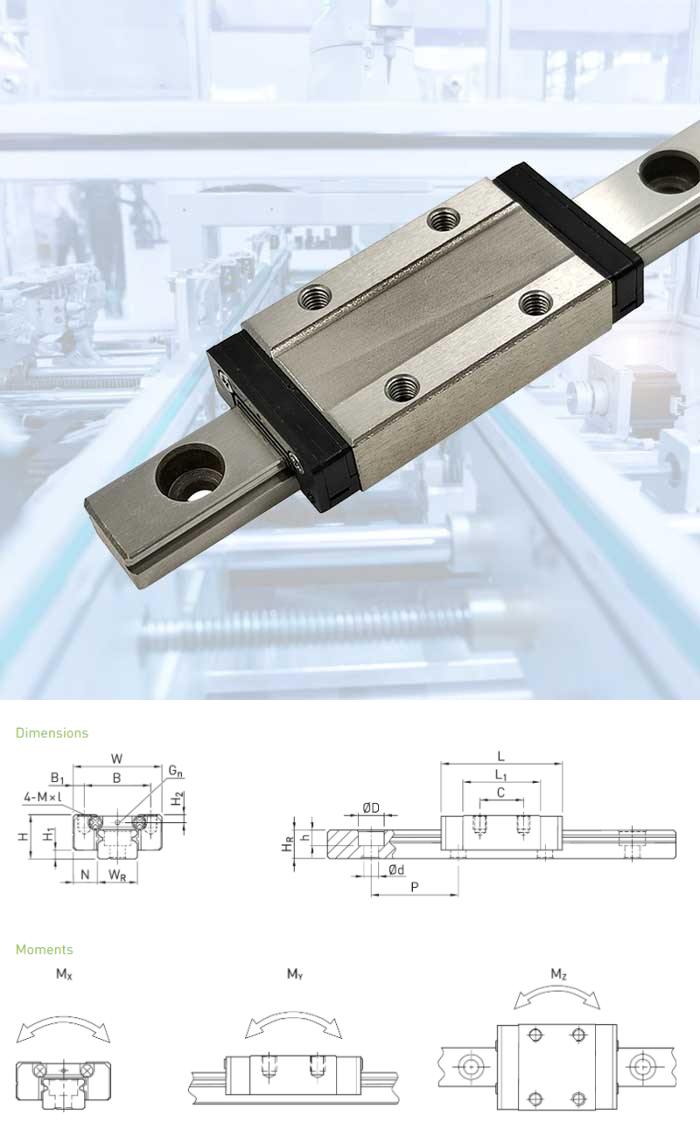

| H | Total height | 10 | mm |
| H1 | 2 | mm | |
| N | 5.5 | mm | |
| W | Block width | 20 | mm |
| B | 15 | mm | |
| B1 | 2.5 | mm | |
| C | 16 | ||
| L1 | 29.9 | mm | |
| L | Block length | 39.9 | mm |
| Gn | Ø1.4 | ||
| M | M3 | mm | |
| l | 3 | mm | |
| H2 | 1.8 | mm | |
| Mass | 0.03 | kg |
