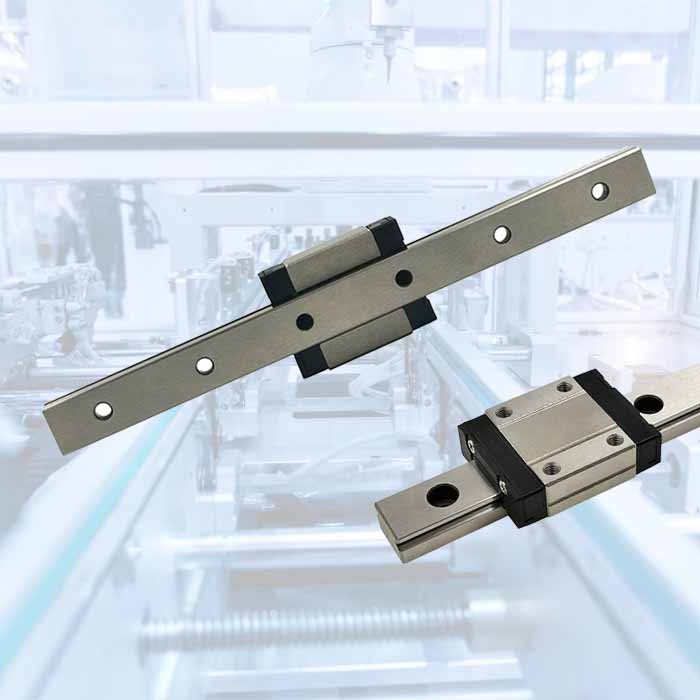

Product name:equivalent hiwin linear guideway MGN12C
Series:MGN
Size:12
Block No:MGN12C, MGN12CZFC, MGN12CZ0C, MGN12CZ0H, MGN12CZ1C, MGN12CZ1H
Block Type: Standard
Block preload:Light Clearance(ZF), Very Light Preload（Z0), Light Preload (Z1)
Precision code/Accuracy Classes: C,H
| Class | Code | Preload | Accuracy |
| Light Clearance | ZF | Clearance 4~10μm | C |
| Very light preload | Z0 | 0 | C-P |
| Light preload | Z1 | 0.02C | C-P |

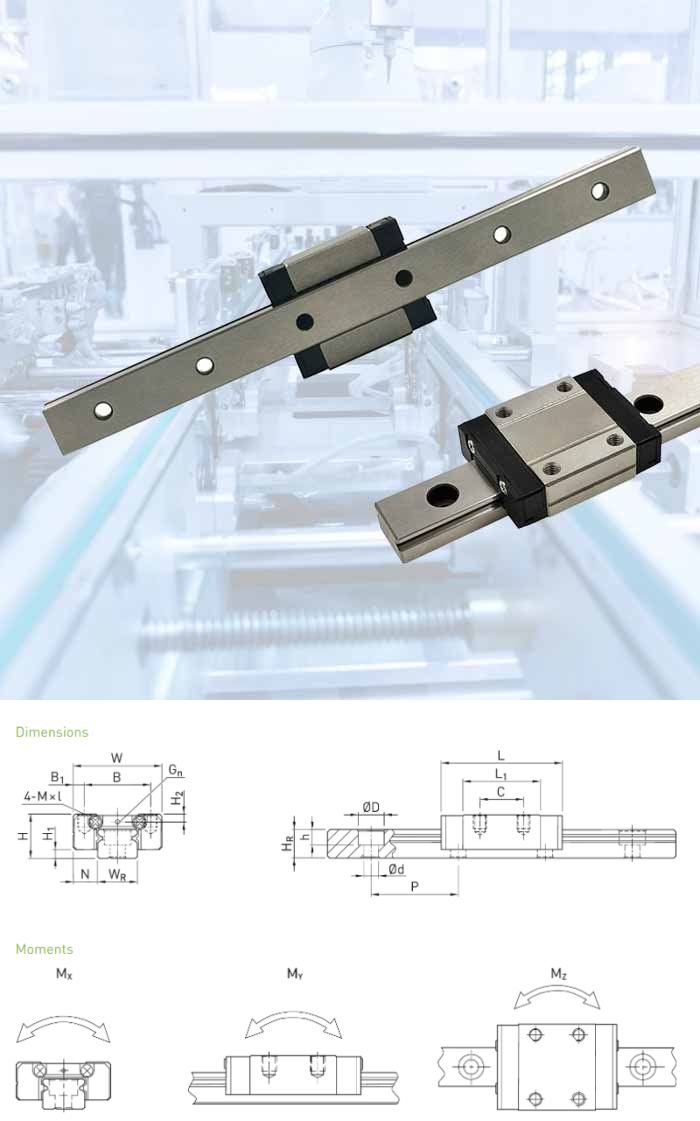

| H | Total height | 13 | mm |
| H1 | 3 | mm | |
| H1 | With bottom seal | 2 | mm |
| N | 7.5 | mm | |
| W | Block width | 27 | mm |
| B | 20 | mm | |
| B1 | 3.5 | mm | |
| C | 15 | ||
| L1 | 21.7 | mm | |
| L | Block length | 34.7 | mm |
| Gn | Ø2 | ||
| M | M3 | mm | |
| l | 3.5 | mm | |
| H2 | 2.5 | mm | |
| Mass | 0.03 | kg |
