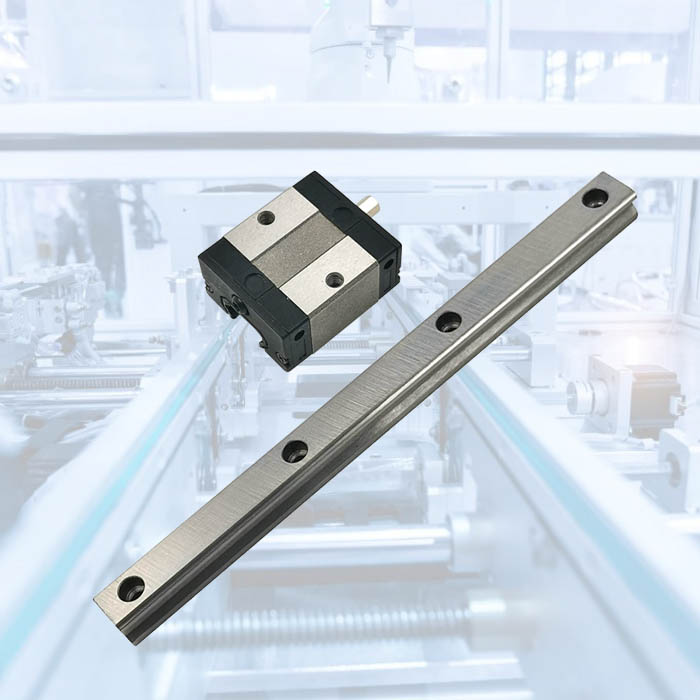

20mm linear guides tianjin EGH20SA
20mm linear guides tianjin EGH20SA

20mm linear guides tianjin EGH20SA

Product Tags :
Product Description

EGH-SA/EGH-CA series

20mm linear guides tianjin EGH20SA

Details of EGH20SA

Product name:20mm linear guides tianjin EGH20SA

Part No : EGH20SA, EGH20SAZ0C, EGH20SAZAC, EGH20SAZBC, EGH20SAZ0H, EGH20SAZAH, EGH20SAZBH

Series: EG series

Block Type: Square type

Model Size : 20 mm

Load Type: Medium load

Block Mounting: Mounting from Top

Block: Standard type block

Preload Class: Very Light Preload (Z0), Light Preload (ZA) , Medium Preload (ZB)

Precision code:C,H

Dust Protection Standard preotection (End seal and bottom seal)

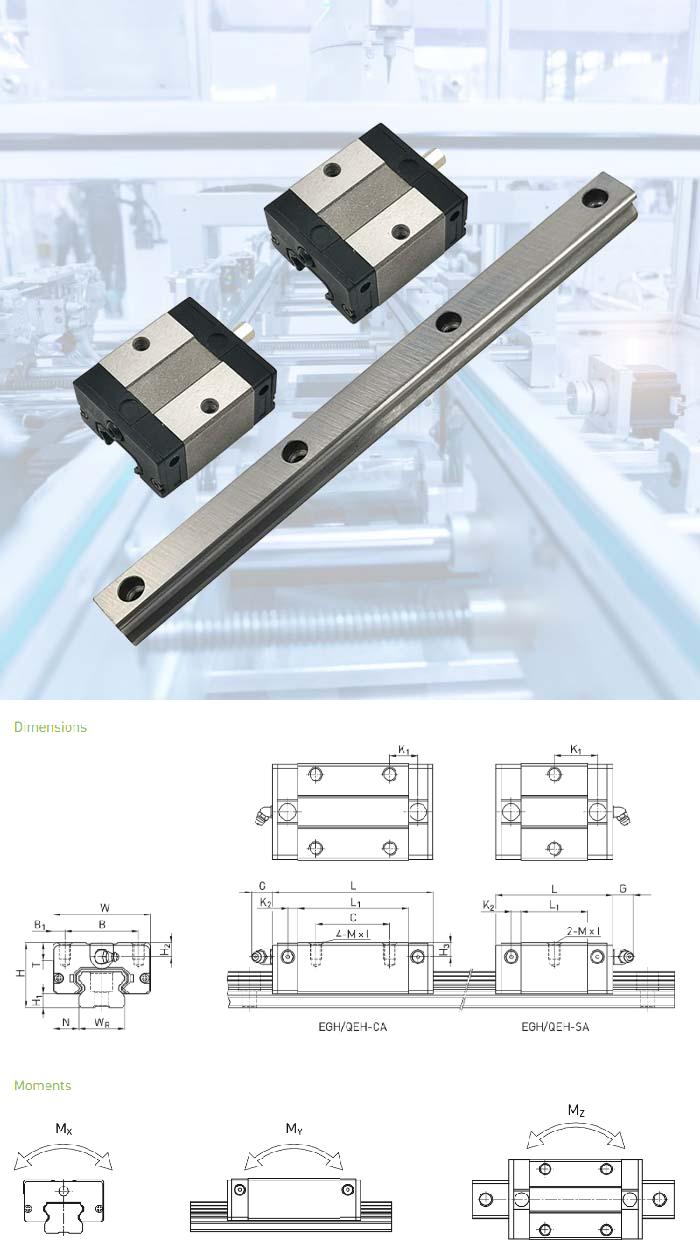

Datasheet of EGH20SA



H Total height 28 mm
H1   6 mm
N   11 mm
W Block width 42 mm
B   32 mm
B1   5 mm
L1   29 mm
L Block length 50 mm
K1   18.75 mm
K2   4.15 mm
G   12 mm
M   M5
l   7 mm
T   7.5 mm
H2   6 mm
H3   6 mm
  Mass 0.15 kg
