cnc linear bearing linear guide rail block EGH25SA
cnc linear bearing linear guide rail block EGH25SA

cnc linear bearing linear guide rail block EGH25SA

Product Tags :
Product Description

EGH-SA/EGH-CA series

cnc linear bearing linear guide rail block EGH25SA

Details of EGH25SA

Product name:cnc linear bearing linear guide rail block EGH25SA

Part No : EGH25SA, EGH25SAZ0C, EGH25SAZAC, EGH25SAZBC, EGH25SAZ0H, EGH25SAZAH, EGH25SAZBH

Series: EG series

Block Type: Square type

Model Size : 25 mm

Load Type: Medium load

Block Mounting: Mounting from Top

Block: Standard type block

Preload Class: Very Light Preload (Z0), Light Preload (ZA) , Medium Preload (ZB)

Precision code:C,H

Dust Protection Standard preotection (End seal and bottom seal)

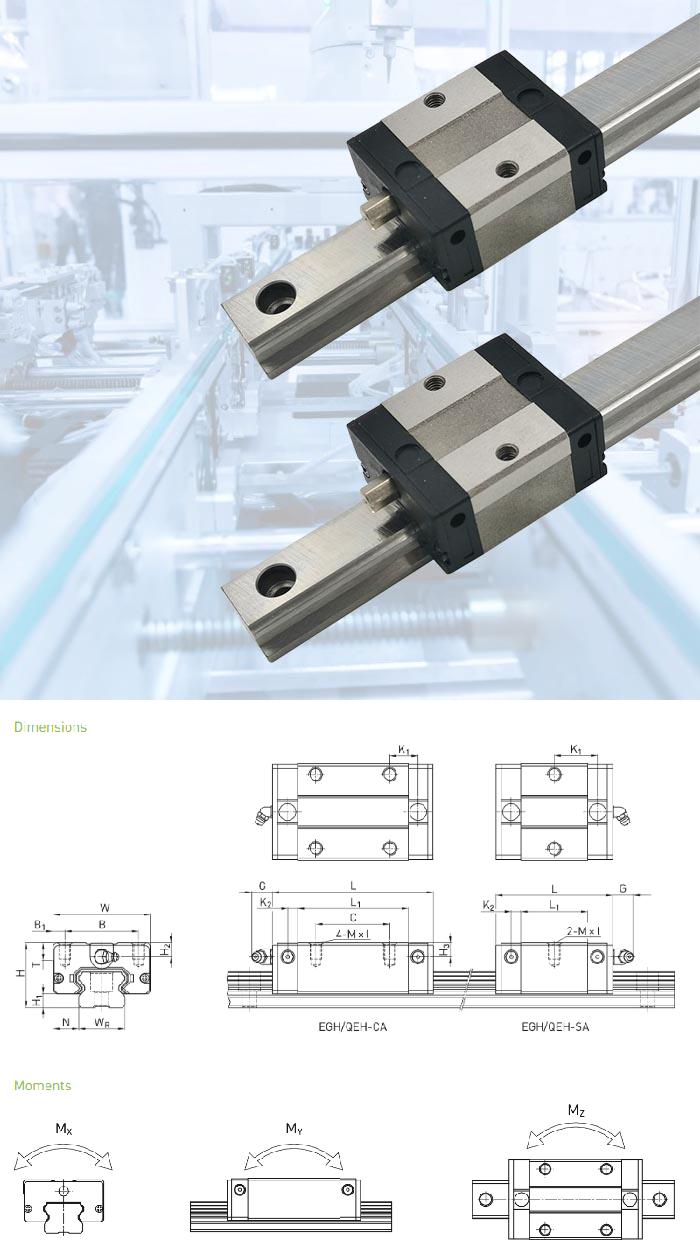

Datasheet of EGH25SA



H Total height 33 mm
H1   7 mm
N   12.5 mm
W Block width 48 mm
B   35 mm
B1   6.5 mm
L1   35.5 mm
L Block length 59.1 mm
K1   21.9 mm
K2   4.55 mm
G   12 mm
M   M6
l   9 mm
T   8 mm
H2   8 mm
H3   8 mm
  Mass 0.25 kg
