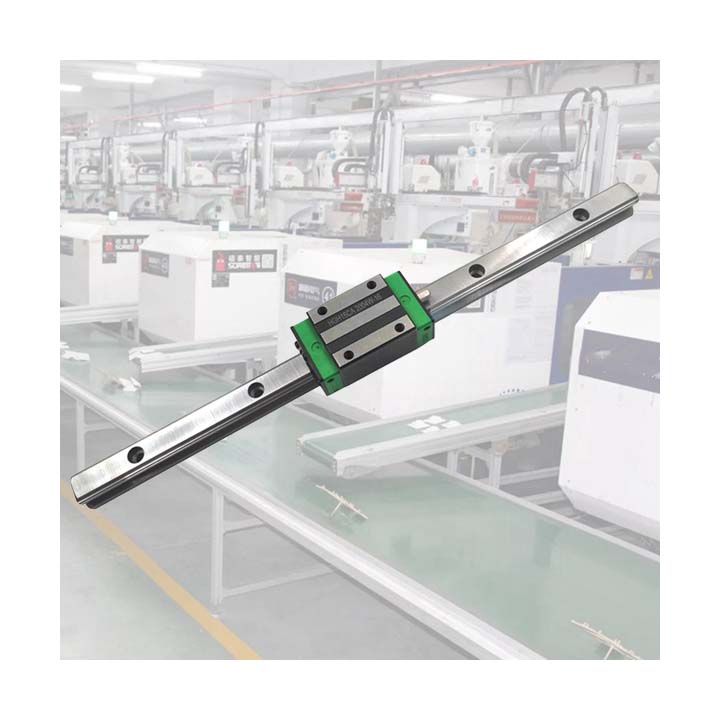

This particular type is a higher but compacter type model. We also have a wider HGW type model available
High Square type model (HGH)
Heavy Load model (CA)
Standard we have Z0 Pre Tension, perfect for CNC-Routers
High Precision Class (H)
4 x Threaded hole in carriage allows mounting from above
Mounting from below not possible (we advise to use HGW model then)

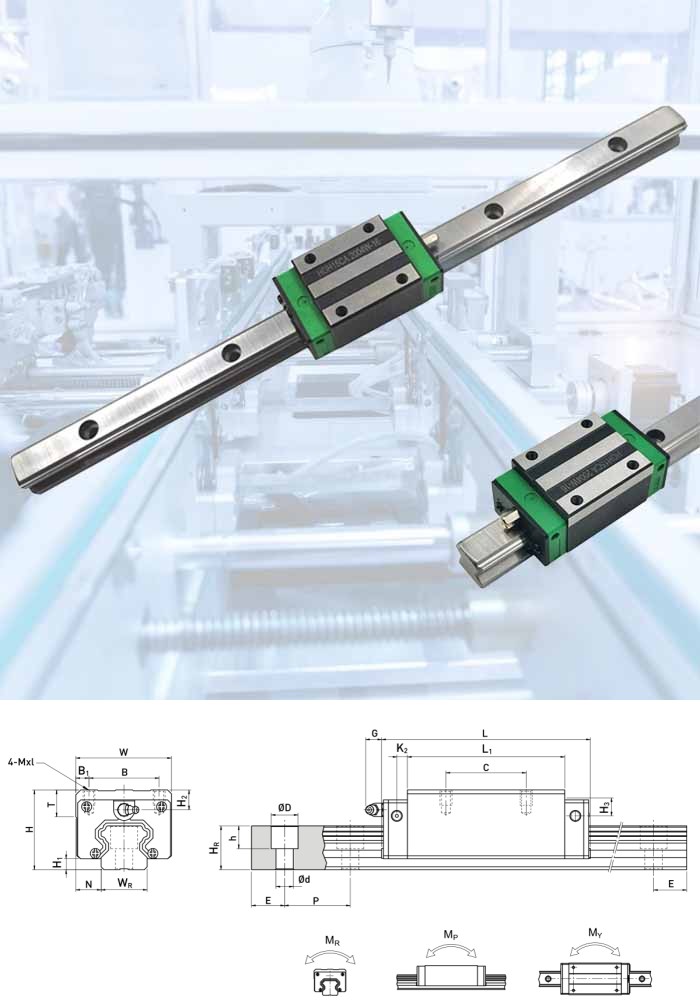

| H | Total height | 28 | mm |
| H1 | 4.3 | mm | |
| N | 9.5 | mm | |
| W | Block width | 34 | mm |
| B | 26 | mm | |
| B1 | 4 | mm | |
| C | 26 | mm | |
| L1 | 39.4 | mm | |
| L | Block length | 61.4 | mm |
| K1 | 10 | mm | |
| K2 | 4.85 | mm | |
| G | 5.3 | mm | |
| M | M4 | ||
| l | 5 | mm | |
| T | 6 | mm | |
| H2 | 7.95 | mm | |
| H3 | 7.7 | mm | |
| Mass | 0.18 | kg |
