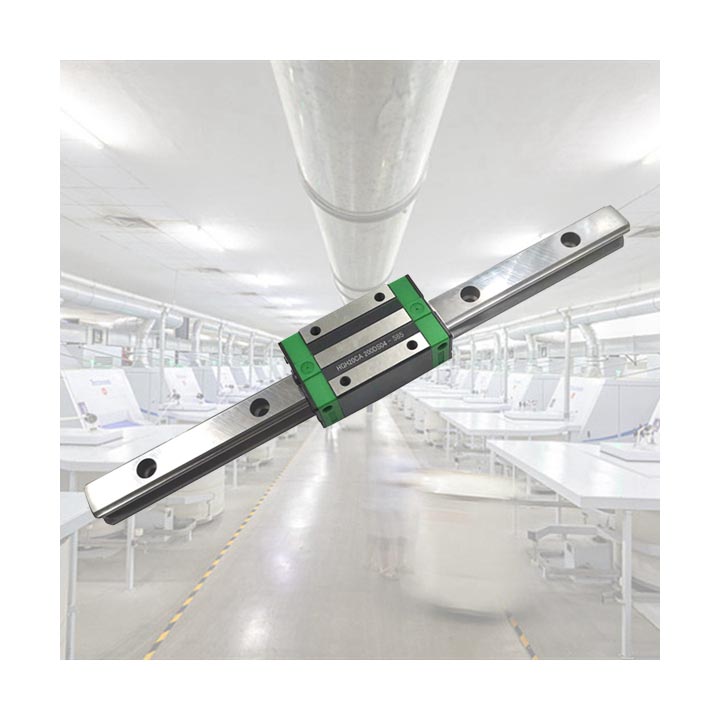

Brand name: FON
Model: HGH20CA, HGH20CAZ0C,HGH20CAZAC,HGH20CAZ0H
Accessory: 1 x Fake Rail
Material: Bearing Steel
Block Length: approx 7.5cm
Weight: 340g
Features:
1.Careful material selection, fine processing, are precisely qualified products.
2.Model HGH20CA, made of bearing steel, longer service life.
3.Suitable use for HG20 Liner Rail Guideway in 3D print machine and linear motion, large machinery.
4.Stable movement and high work efficiency.
Note:
1.Block only, slide rail is NOT included.
2.Mounting screw is NOT included.
3.Please allow 1-3mm error, due to manual measurement.

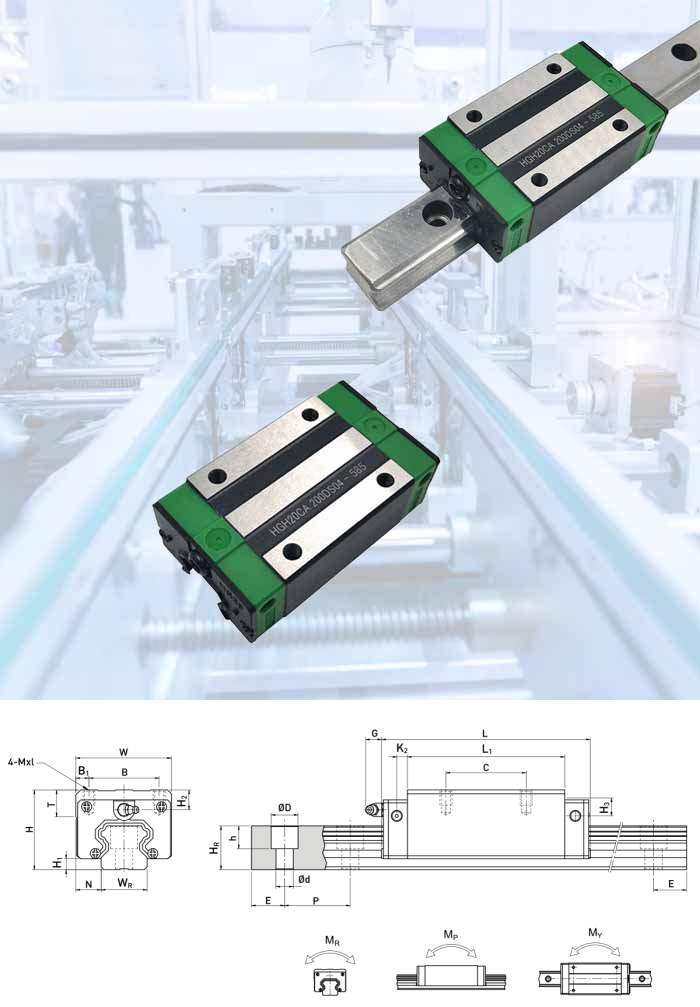

| H | Total height | 30 | mm |
| H1 | 4.6 | mm | |
| N | 12 | mm | |
| W | Block width | 44 | mm |
| B | 32 | mm | |
| B1 | 6 | mm | |
| C | 36 | mm | |
| L1 | 50.5 | mm | |
| L | Block length | 77.5 | mm |
| K1 | 12.25 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M5 | ||
| l | 6 | mm | |
| T | 8 | mm | |
| H2 | 6 | mm | |
| H3 | 6 | mm | |
| Mass | 0.3 | kg |
