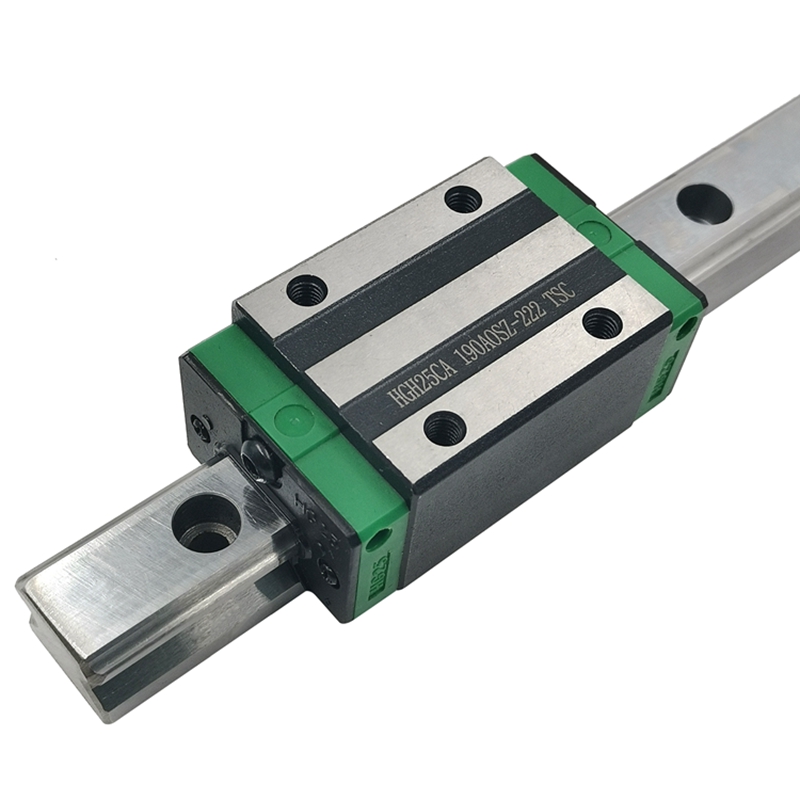

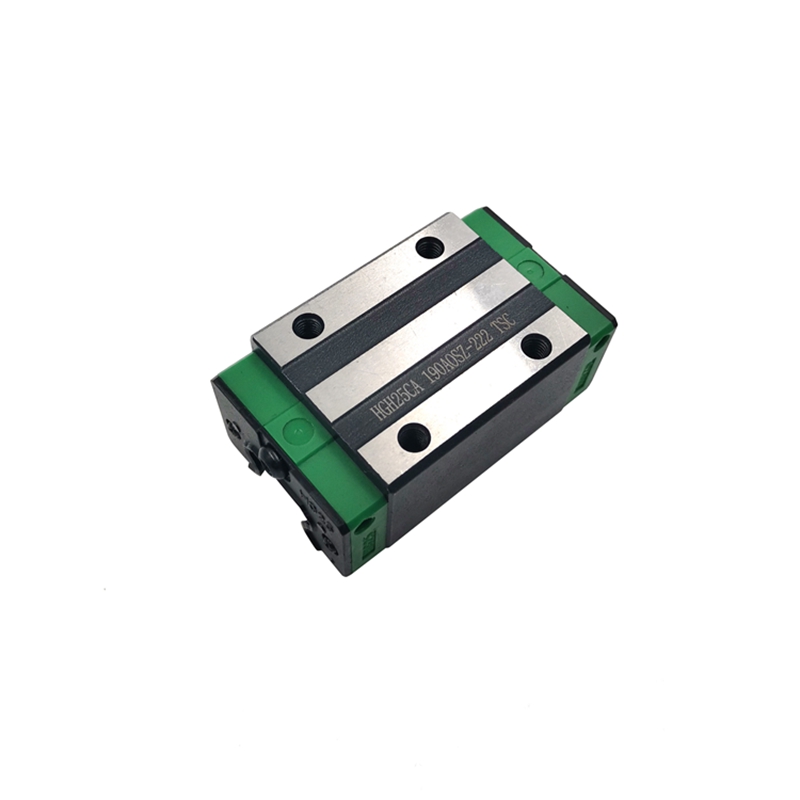

Brand name: FON
Model: HGH25CA，HGH25CAZ0C, HGH25CAZAC, HGH20CAZ0H

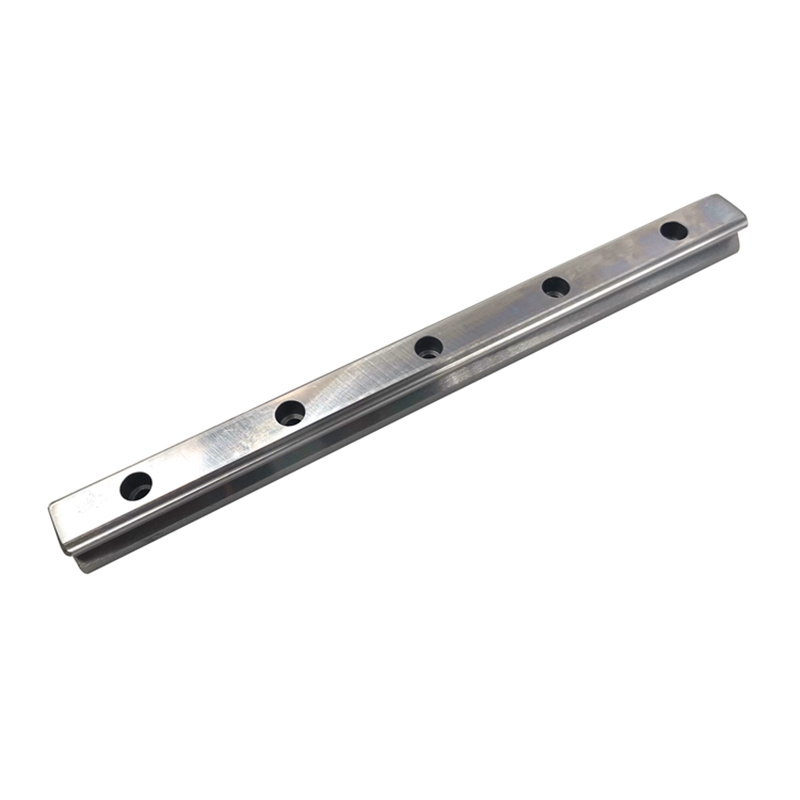

Accessory: 1 x Fake Rail
Material: Bearing Steel
Block Length: approx 8.4cm
Weight: 510g
Application
Machine centers、Machine tools、Precision machining machines、Heavy cutting machines、 Punching machines、Marble cutting machines、 Automatic equipments、Grinding machines、High speed transfer equipments、Injection molding machines、Measuring equipments

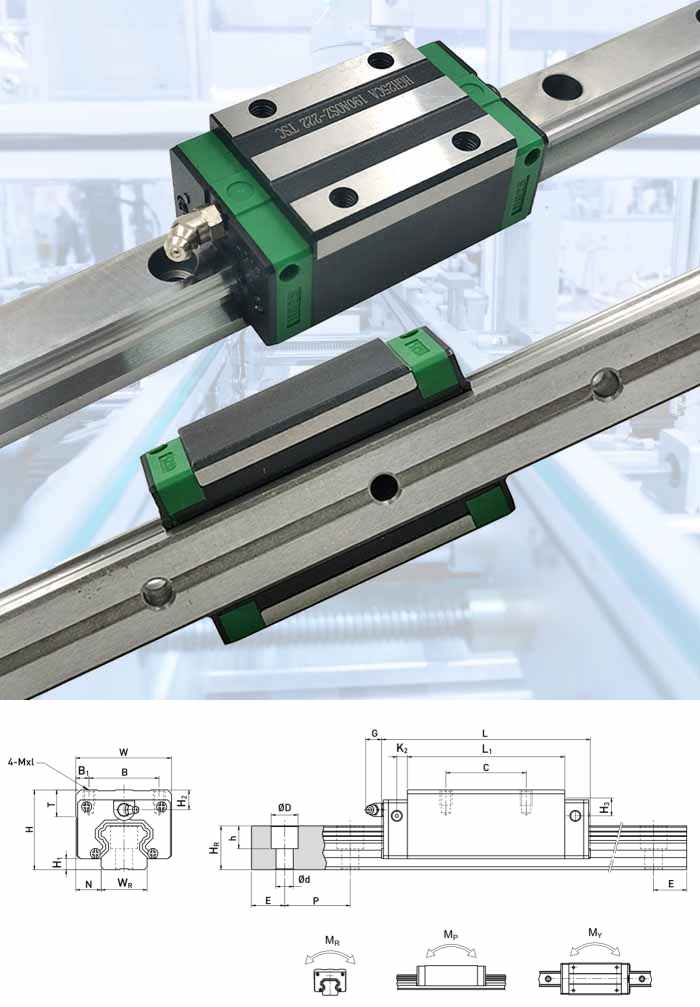

| H | Total height | 40 | mm |
| H1 | 5.5 | mm | |
| N | 12.5 | mm | |
| W | Block width | 48 | mm |
| B | 35 | mm | |
| B1 | 6.5 | mm | |
| C | 35 | mm | |
| L1 | 58 | mm | |
| L | Block length | 84 | mm |
| K1 | 15.7 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M6 | ||
| l | 8 | mm | |
| T | 8 | mm | |
| H2 | 10 | mm | |
| H3 | 9 | mm | |
| Mass | 0.51 | kg |
