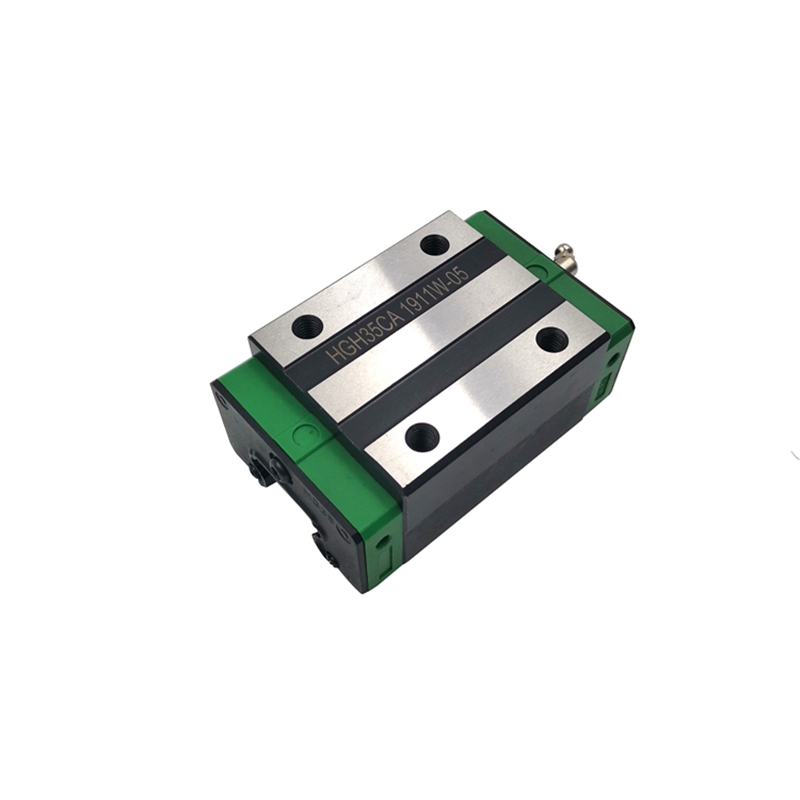

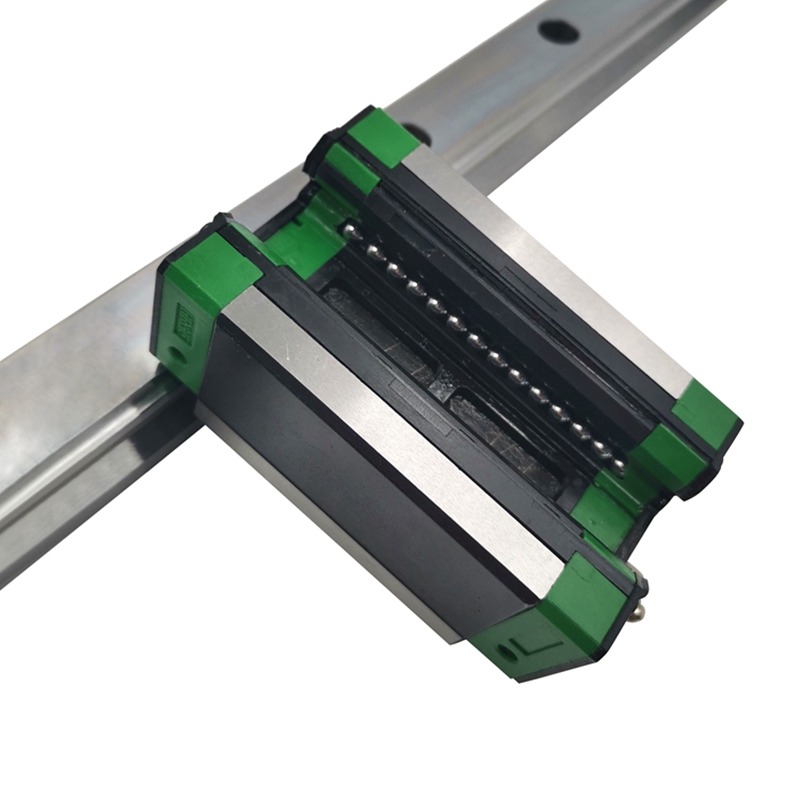

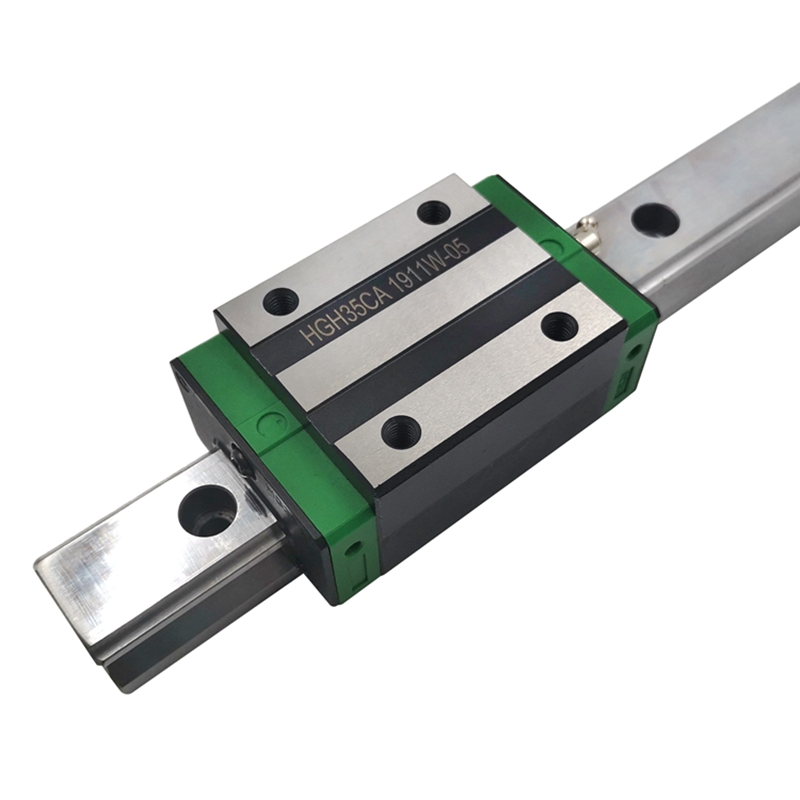

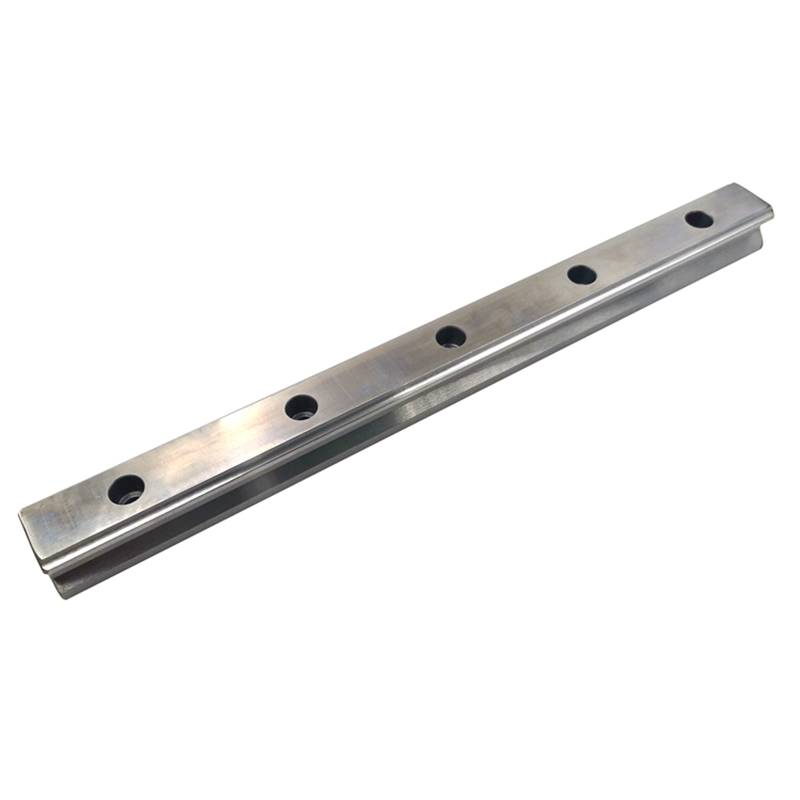

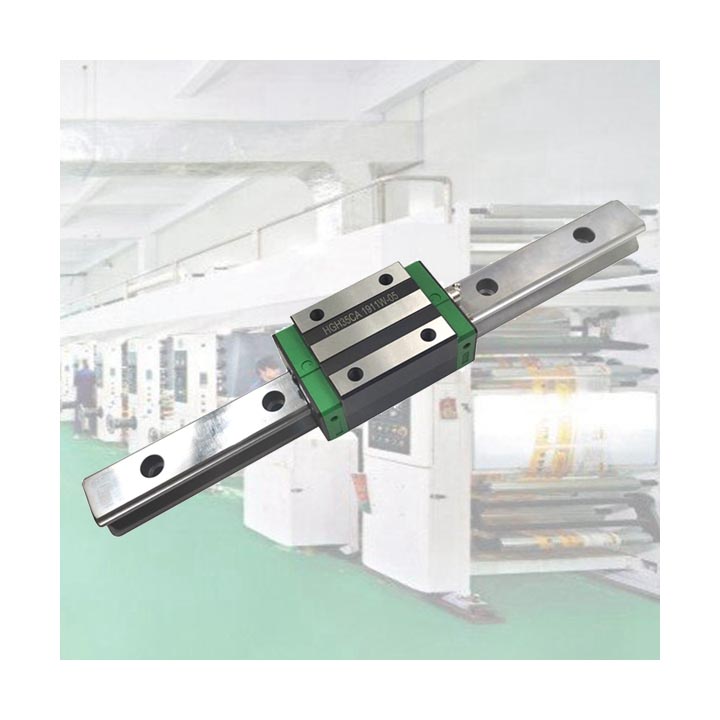

Brand:FON
Part No:HGH35CA, HGH35CAZ0C, HGH35CAZAC, HGH35CAZ0H
Series: HG series
Block Type: Square type
Model Size : 35 mm
Load Type: Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Light Preload (0-0.02 C), Medium Preload (0.05-0.07 C)
Precision code:C,H
Dust Protection:Standard preotection (End seal and bottom seal)
Total height:55mm
Block width:70mm
Block length：112.4mm
Mass:1.45kg

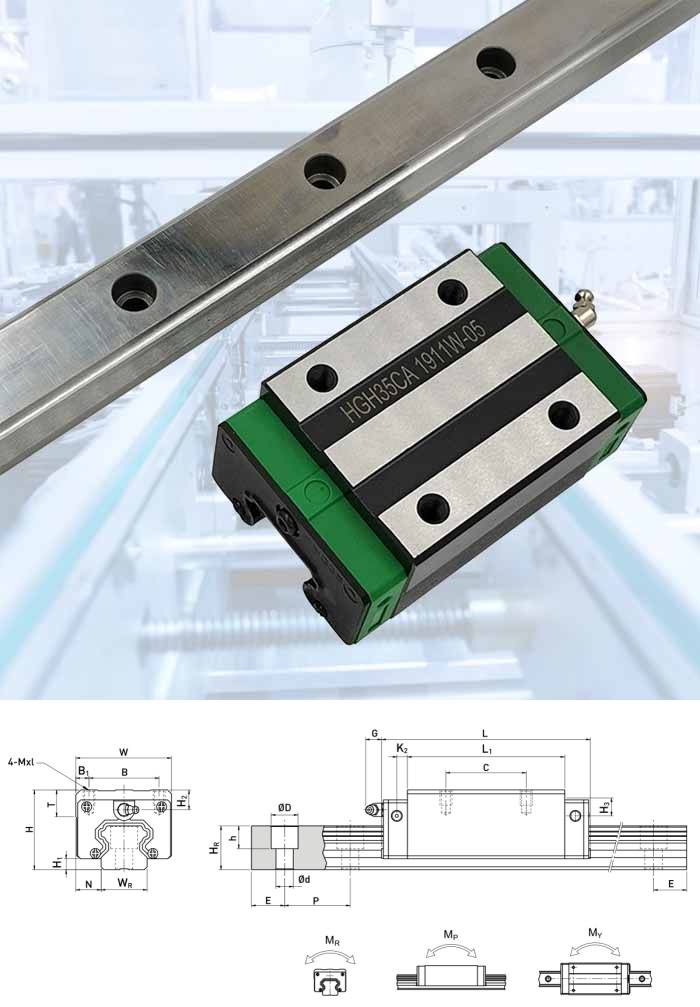

| H | Total height | 55 | mm |
| H1 | 7.5 | mm | |
| N | 18 | mm | |
| W | Block width | 70 | mm |
| B | 50 | mm | |
| B1 | 10 | mm | |
| C | 50 | mm | |
| L1 | 80 | mm | |
| L | Block length | 112.4 | mm |
| K1 | 20.6 | mm | |
| K2 | 7 | mm | |
| G | 12 | mm | |
| M | M8 | ||
| l | 12 | mm | |
| T | 10.2 | mm | |
| H2 | 16 | mm | |
| H3 | 19.6 | mm | |
| Mass | 1.45 | kg |
