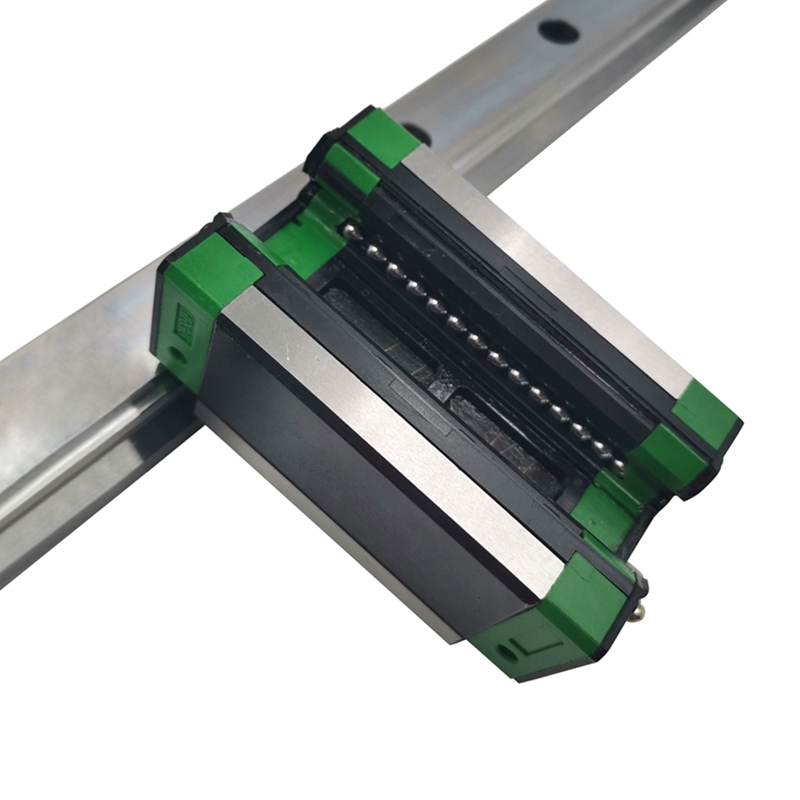

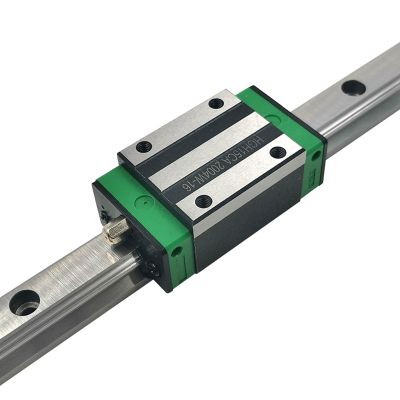

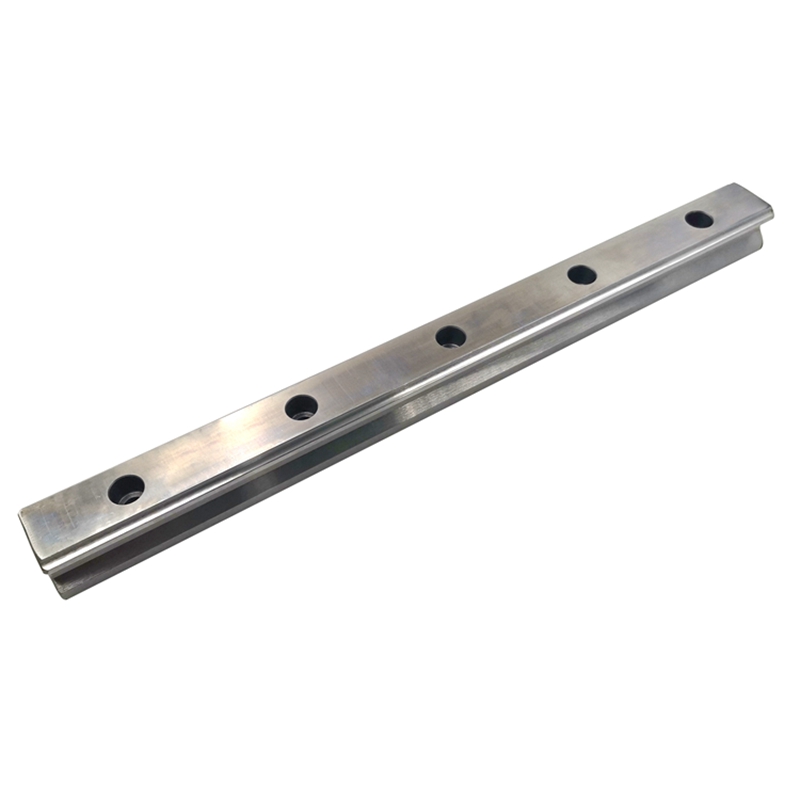

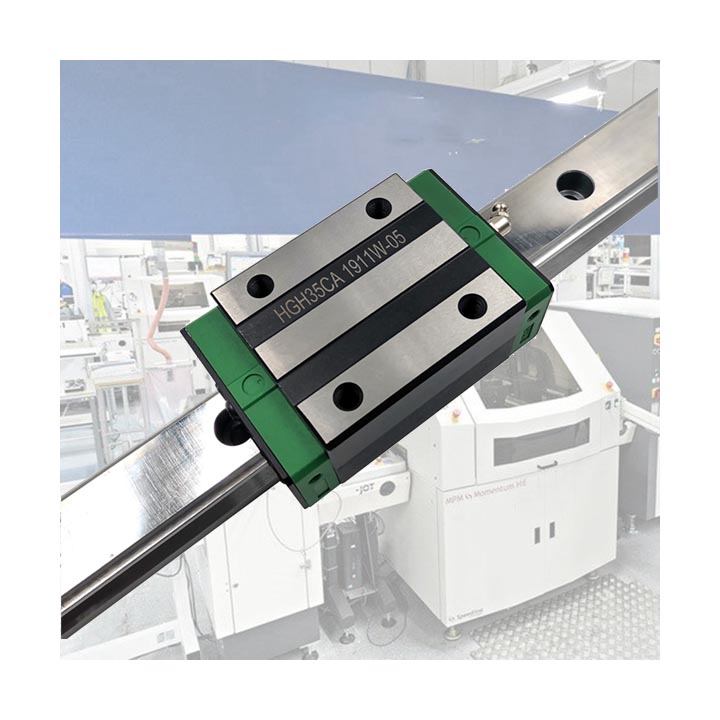

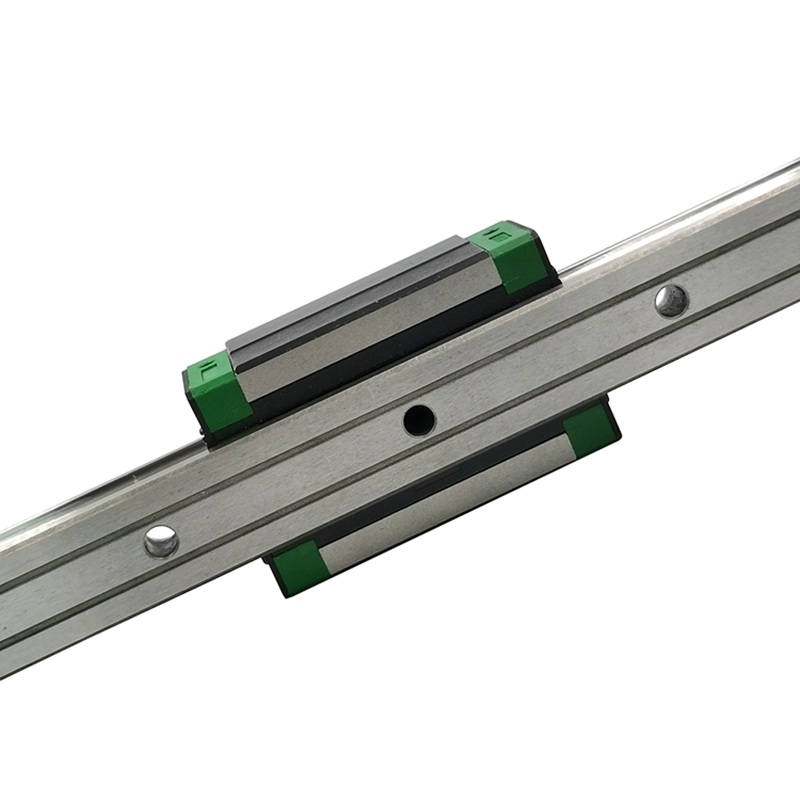

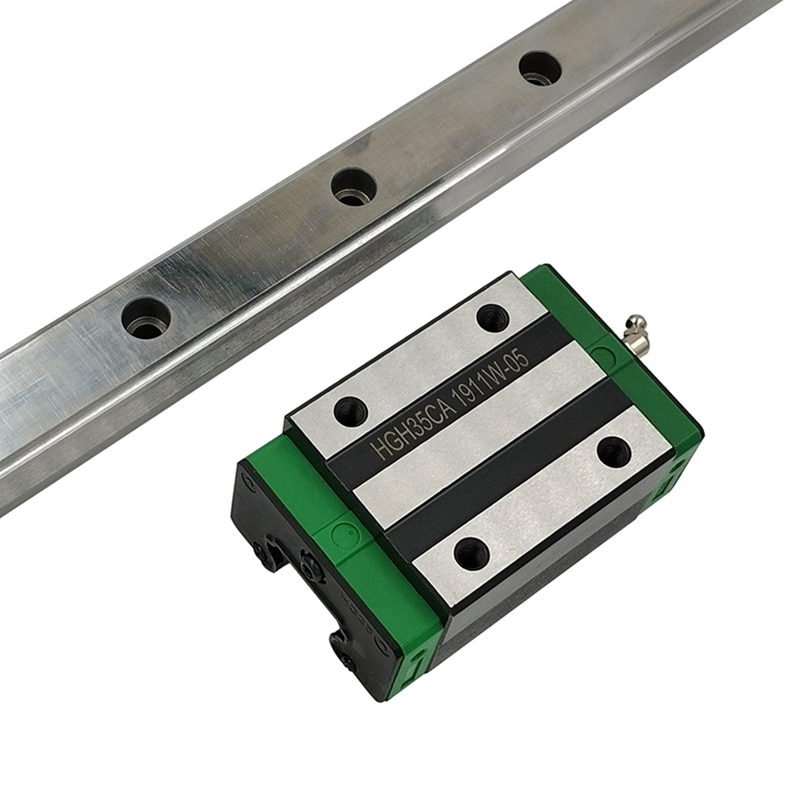

Part No:HGH45CA, HGH45CAZ0C,HGH45CAZAC, HGH45CAZ0H
Series: HG series
Block Type: Square type
Model Size : 45 mm
Load Type: Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Light Preload , Medium Preload
Precision code:C,H
Block height:60.5mm
Block width:86mm
Block length:139.4mm
Mass:2.73mm

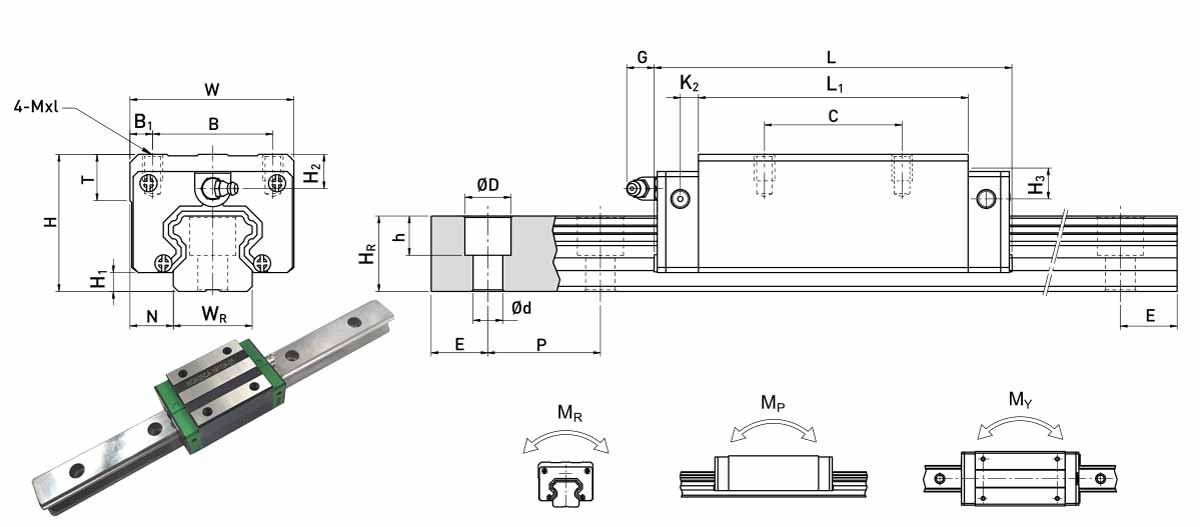

| H | Total height | 70 | mm |
| H1 | 9.5 | mm | |
| N | 20.5 | mm | |
| W | Block width | 86 | mm |
| B | 60 | mm | |
| B1 | 13 | mm | |
| C | 60 | mm | |
| L1 | 97 | mm | |
| L | Block length | 139.4 | mm |
| K1 | 23 | mm | |
| K2 | 10 | mm | |
| G | 12.9 | mm | |
| M | M10 | ||
| l | 17 | mm | |
| T | 6 | mm | |
| H2 | 18.5 | mm | |
| H3 | 30.5 | mm | |
| Mass | 2.73 | kg |
