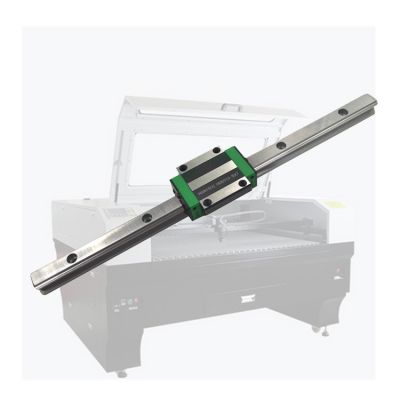

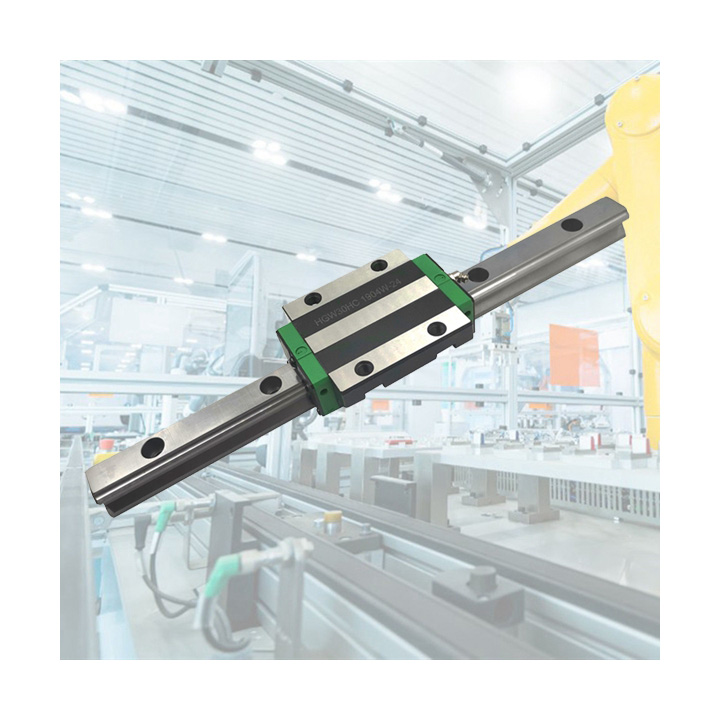

Product name:linear guide slide bearing linear guidance HGW30HC
Part No : HGW30HC, HGW30HCZ0C, HGW30HCZAC, HGW30HCZAH
Series: HG series
Block Type: Flange type
Model Size : 30 mm
Load Type: Super heavy load
Block Mounting: Top or bottom
Block: Standard type block
Preload Class: Light Preload , Medium Preload
Precision code：C,H
Dynamic load rating:58.600N
Static load rating:93.990N
Static moment:880Nm
Static moment:920Nm

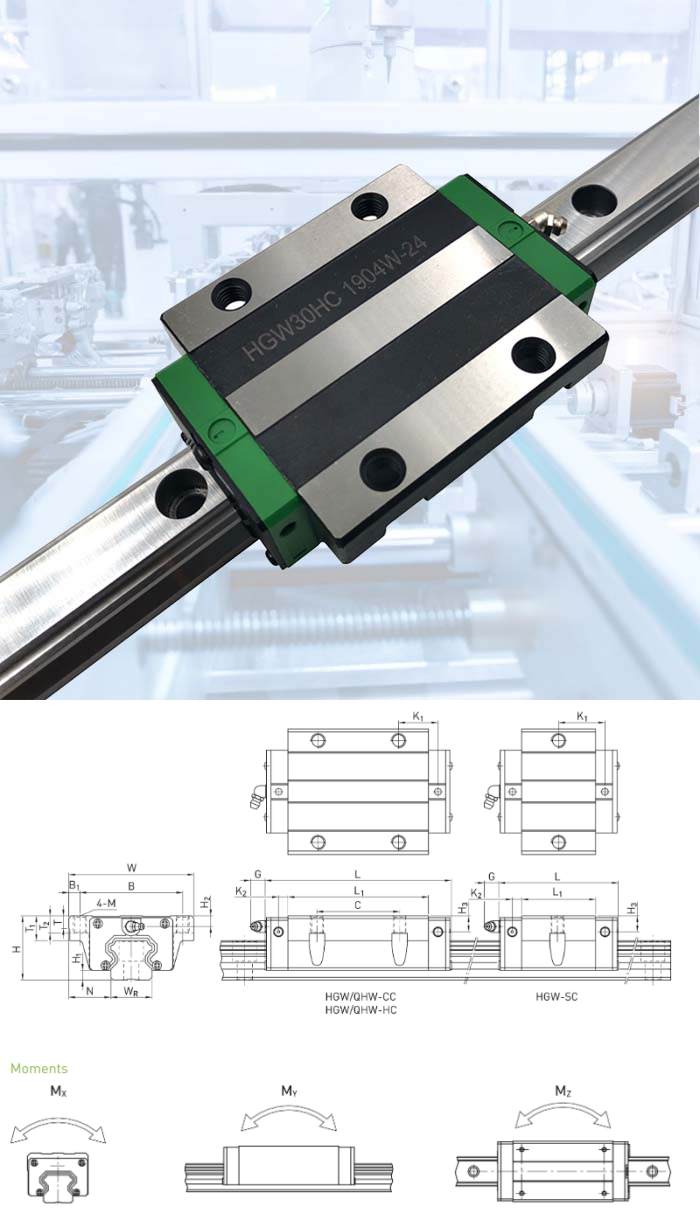

| H | Total height | 42 | mm |
| H1 | 6 | mm | |
| N | 31 | mm | |
| W | Block width | 90 | mm |
| B | 72 | mm | |
| B1 | 9 | mm | |
| C | 52 | mm | |
| L1 | 93 | mm | |
| L | Block length | 120.4 | mm |
| K1 | 25.75 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M10 | ||
| T | 8.5 | mm | |
| T1 | 16 | mm | |
| T2 | 10 | mm | |
| H2 | 6.5 | mm | |
| H3 | 10.8 | mm | |
| Mass | 1.44 | kg |
