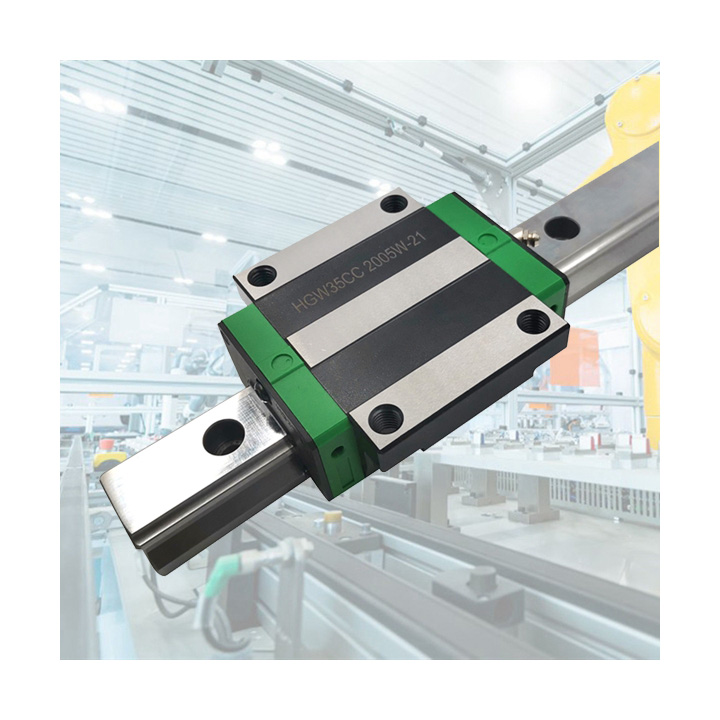

Product name:high precise linear guide for automatic system HGW45CC
Part No : HGW45CC， HGW45CCZ0C, HGW45CCZAC, HGW45CCZ0H
Model Size : 45 mm
Load Type: Heavy load
Block Mounting: Top or bottom
Block: Standard type block
Preload Class: Light Preload , Medium Preload
Precision code：C,H
Dynamic load rating:103.800N
Static load rating:146.710N
Static moment:1.980Nm
Static moment:1.550Nm
Static moment:1.550Nm

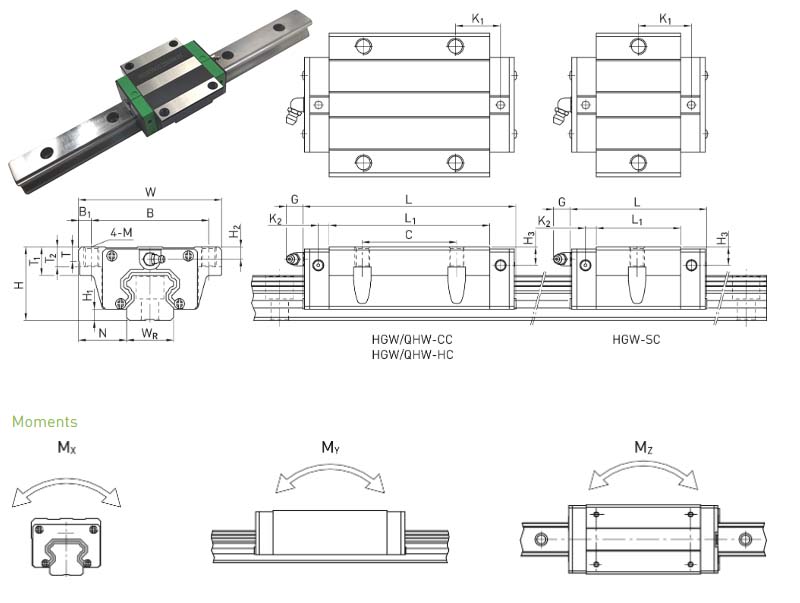

| H | Total height | 60 | mm |
| H1 | 9.5 | mm | |
| N | 37.5 | mm | |
| W | Block width | 120 | mm |
| B | 100 | mm | |
| B1 | 10 | mm | |
| C | 80 | mm | |
| L1 | 97 | mm | |
| L | Block length | 139.4 | mm |
| K1 | 13 | mm | |
| K2 | 10 | mm | |
| G | 12.9 | mm | |
| M | M12 | ||
| T | 15.1 | mm | |
| T1 | 22 | mm | |
| T2 | 15 | mm | |
| H2 | 8.5 | mm | |
| H3 | 20.5 | mm | |
| Mass | 2.79 | kg |
