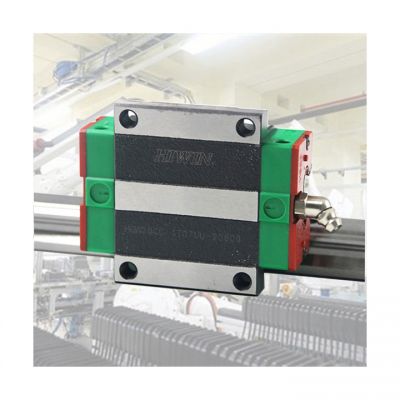

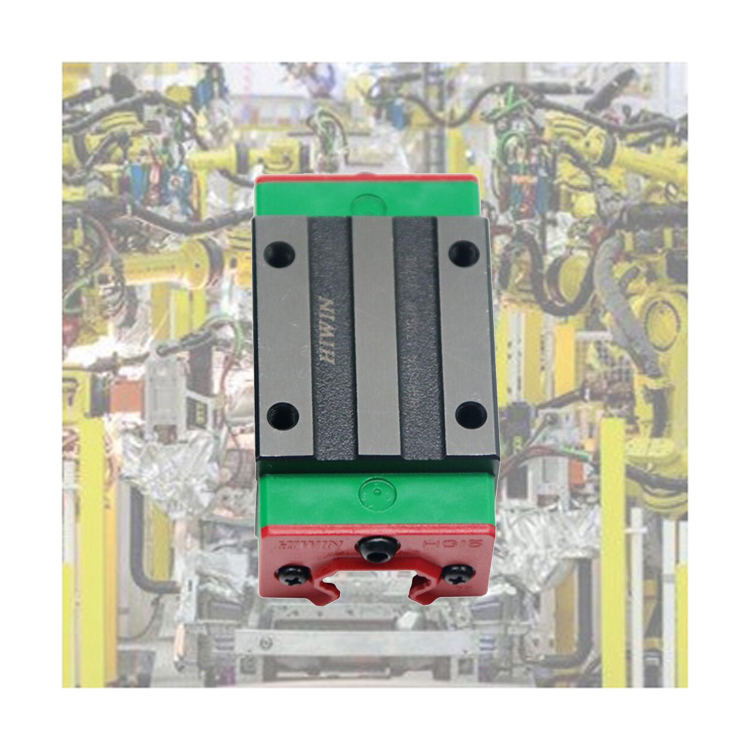

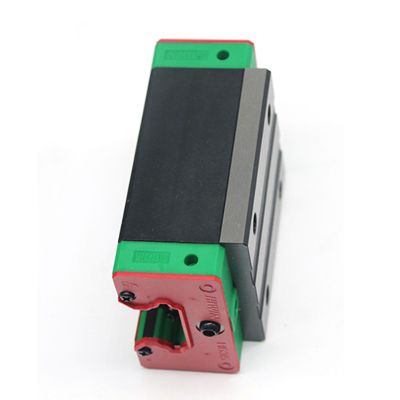

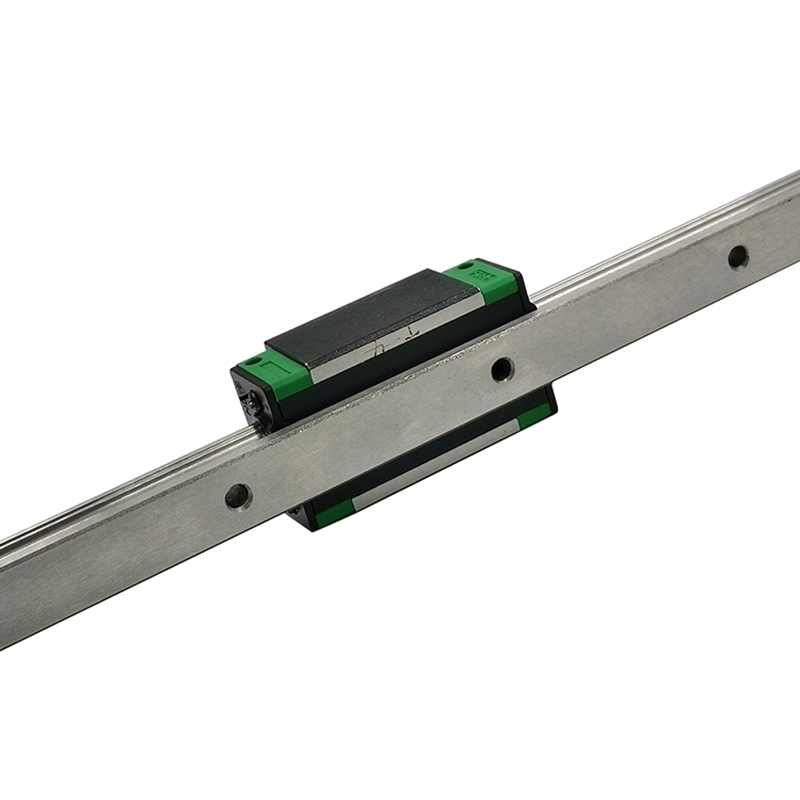

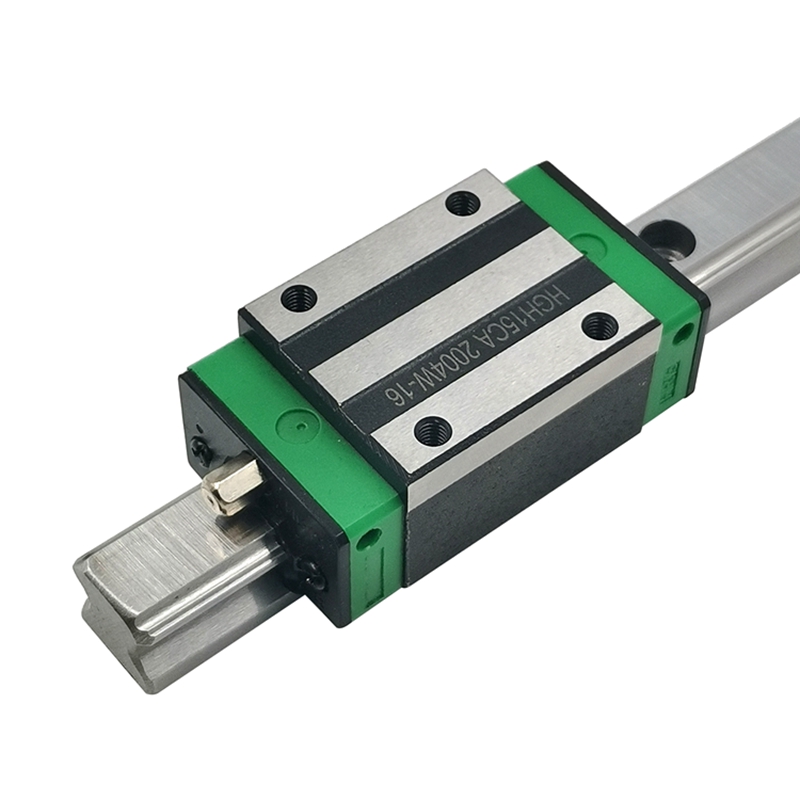

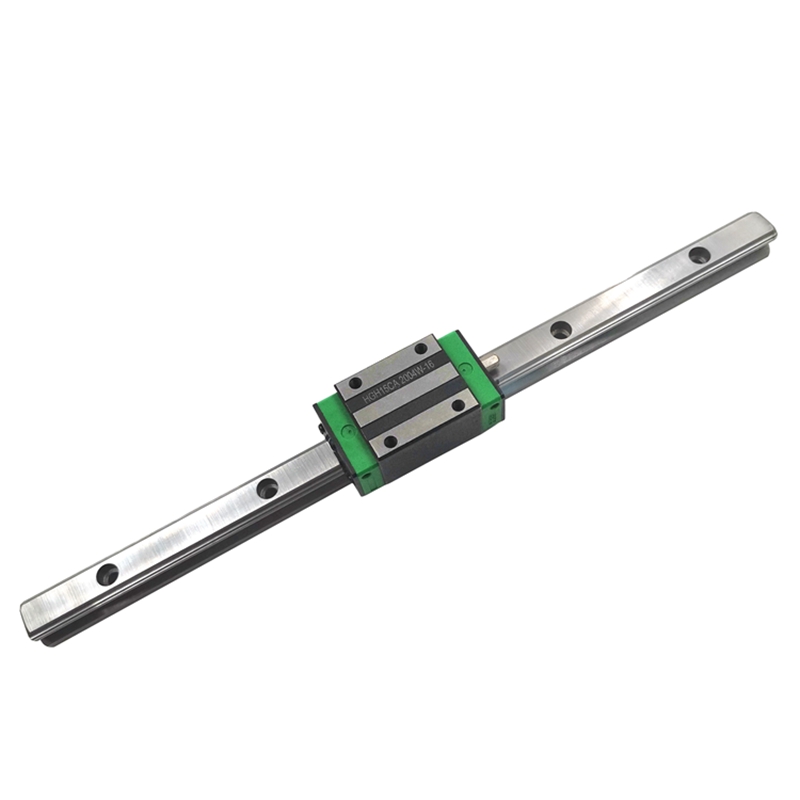

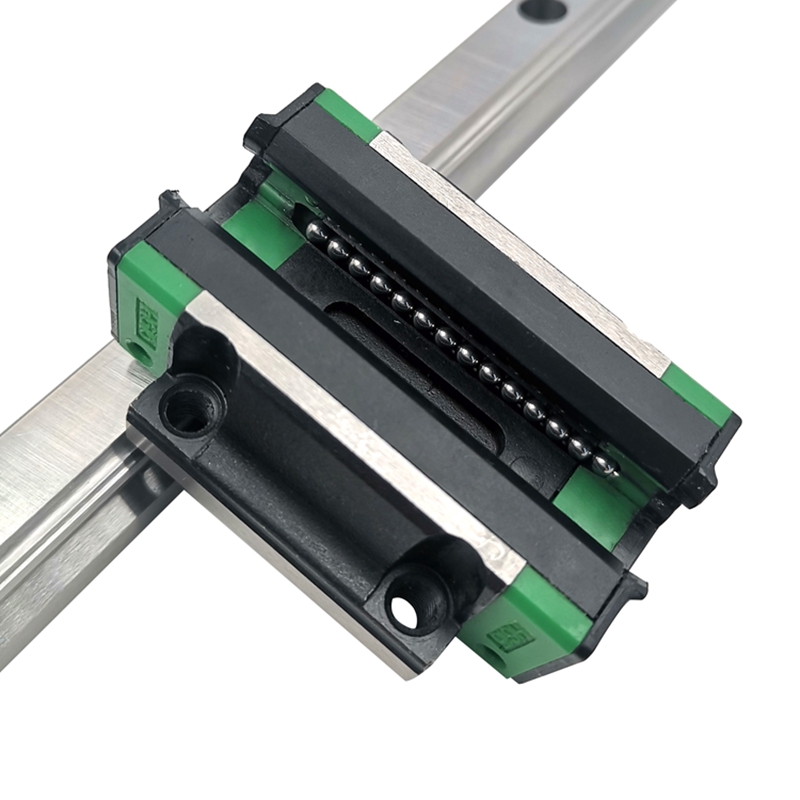

Product name: HIWIN hg15 hiwin hgh15ca linear guide price runner block
Series: HG
Block type: Square type
Model size: 15
Load type: Heavy load
Block mounting type: Mounting From Top
Preload code: Z0, ZA
Precision code: C,H
Applicable rails：HGR15

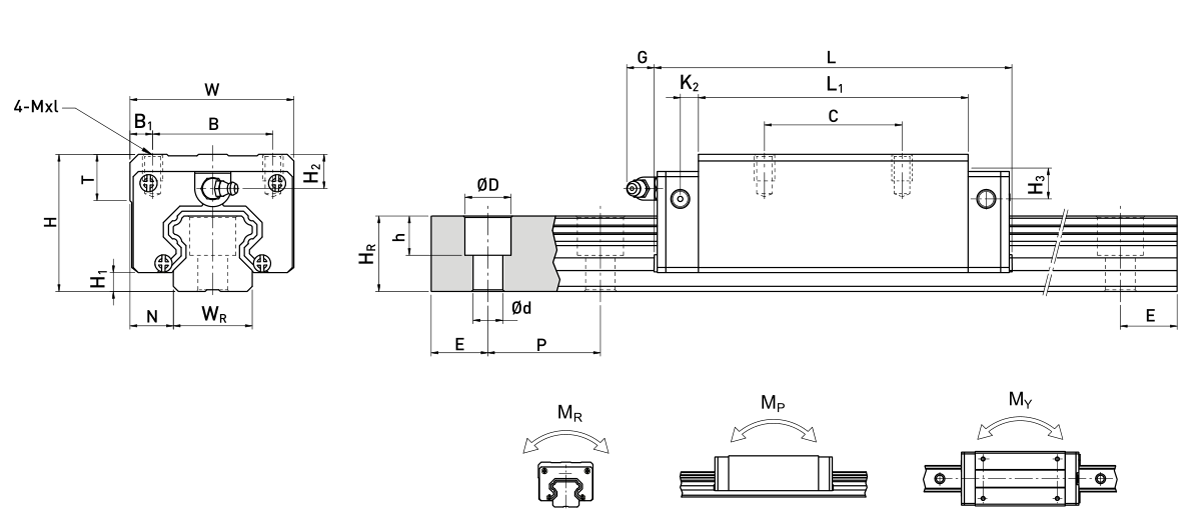

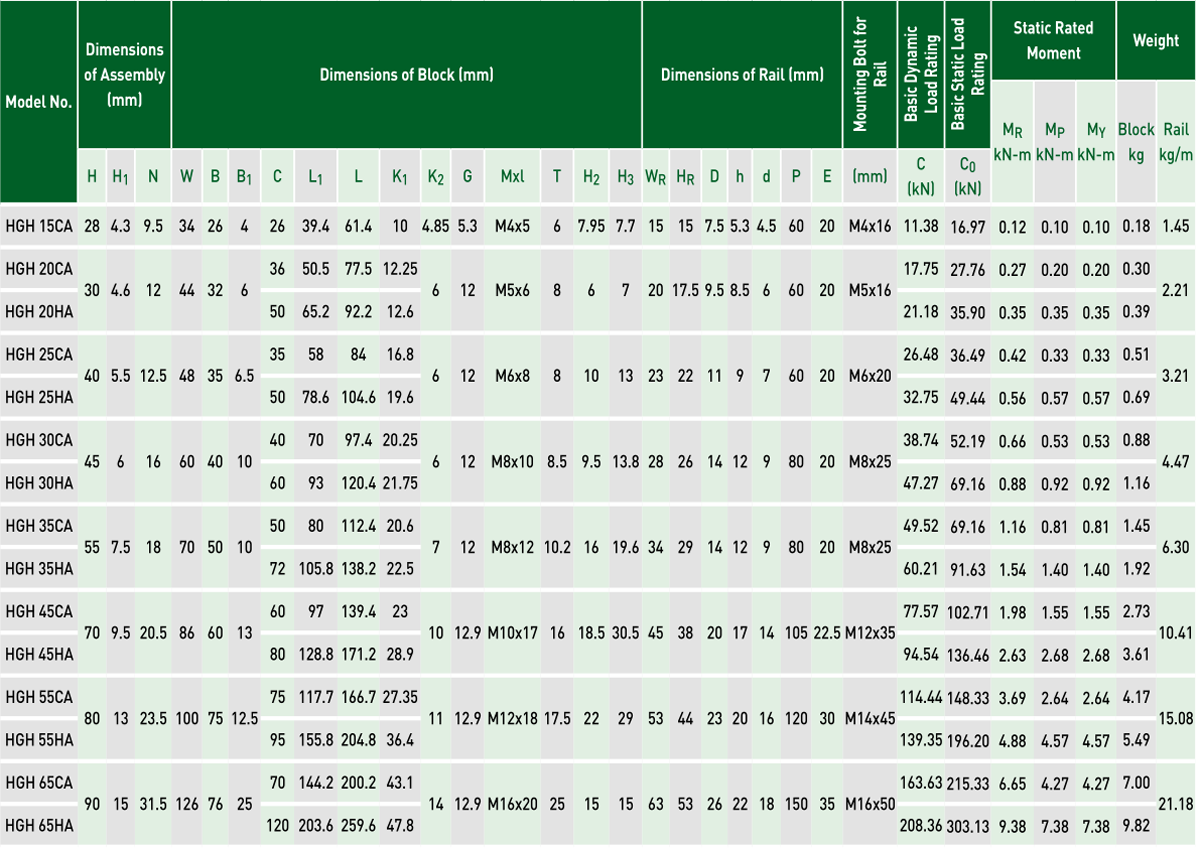

| H | Total height | 28 | mm |
| H1 | 4.3 | mm | |
| N | 9.5 | mm | |
| W | Block width | 34 | mm |
| B | 26 | mm | |
| B1 | 4 | mm | |
| C | 26 | mm | |
| L1 | 39.4 | mm | |
| L | Block length | 61.4 | mm |
| K1 | 10 | mm | |
| K2 | 4.85 | mm | |
| G | 5.3 | mm | |
| M | M4 | ||
| l | 5 | mm | |
| T | 6 | mm | |
| H2 | 7.95 | mm | |
| H3 | 7.7 | mm | |
| Mass | 0.18 | kg |
