MGN-C/MGN-H series

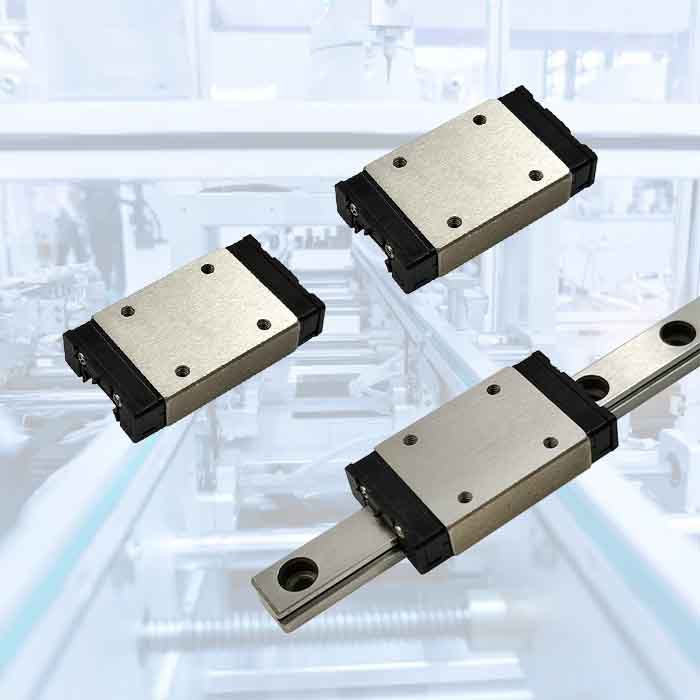

cnc linear guide guide rail MGN7H

Details of MGN7H

Product name:cnc linear guide guide rail MGN7H

Series:MGN

Size:7

Block No:MGN7H, MGN7HZFC, MGN7HZ0C, MGN7HZ0H, MGN7HZ1C, MGN7HZ1H

Block Type: Long

Block preload:Light Clearance(ZF), Very Light Preload(Z0),  Light Preload (Z1)

Precision code/Accuracy Classes: C,H

Class Code Preload Accuracy
Light Clearance ZF Clearance 4~10μm C
Very light preload Z0 0 C-P
Light preload Z1 0.02C C-P

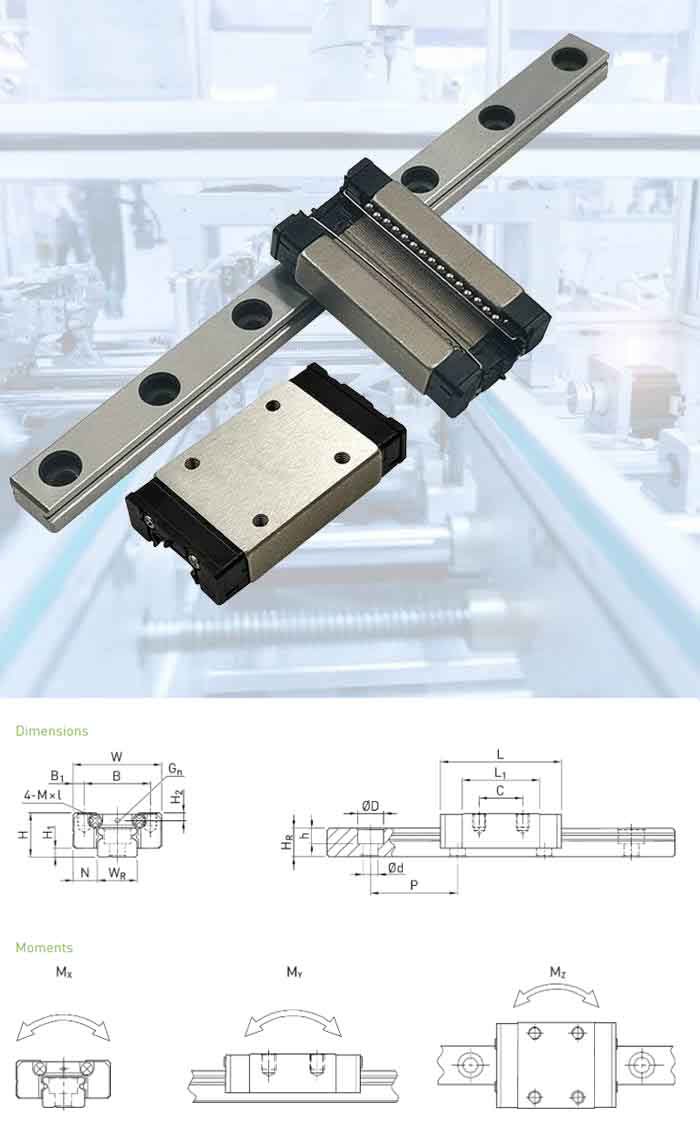

Datasheet of MGN7H



H Total height 8 mm
H1   1.5 mm
N   5 mm
W Block width 17 mm
B   12 mm
B1   2.5 mm
C   13
L1   21.8 mm
L Block length 30.8 mm
Gn   Ø1.2
M   M2 mm
l   2.5 mm
H2   1.5 mm
  Mass 0.02 kg
