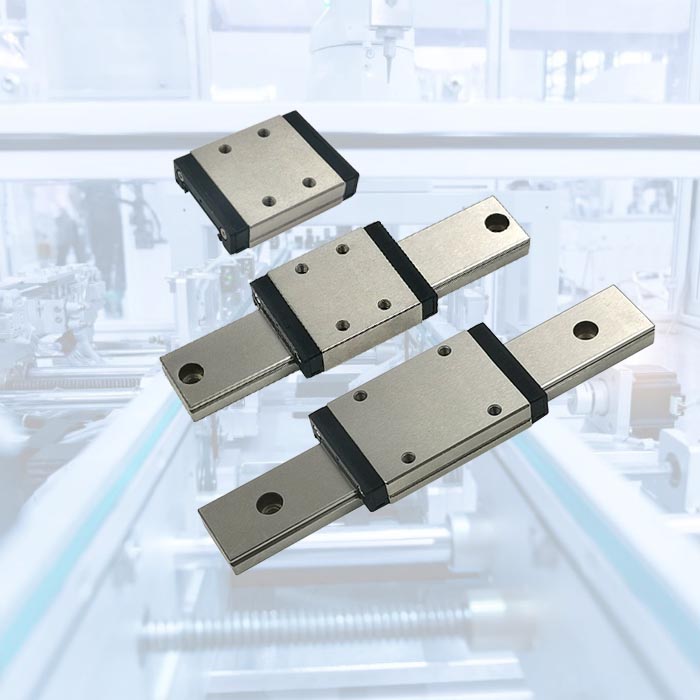

Product name:equivalent hiwin mgw9 linear guide
Series:MGW
Size:9
Block No:MGW9C, MGW9CZFC, MGW9CZ0C, MGW9CZ0H, MGW9CZ1C, MGW9CZ1H, MGW9HZFC, MGW9HZ0C, MGW9HZ0H, MGW9HZ1C, MGW9HZ1H
Block Type: Standard
Block preload:Light Clearance(ZF), Very Light Preload（Z0), Light Preload (Z1)
Precision code/Accuracy Classes: C,H

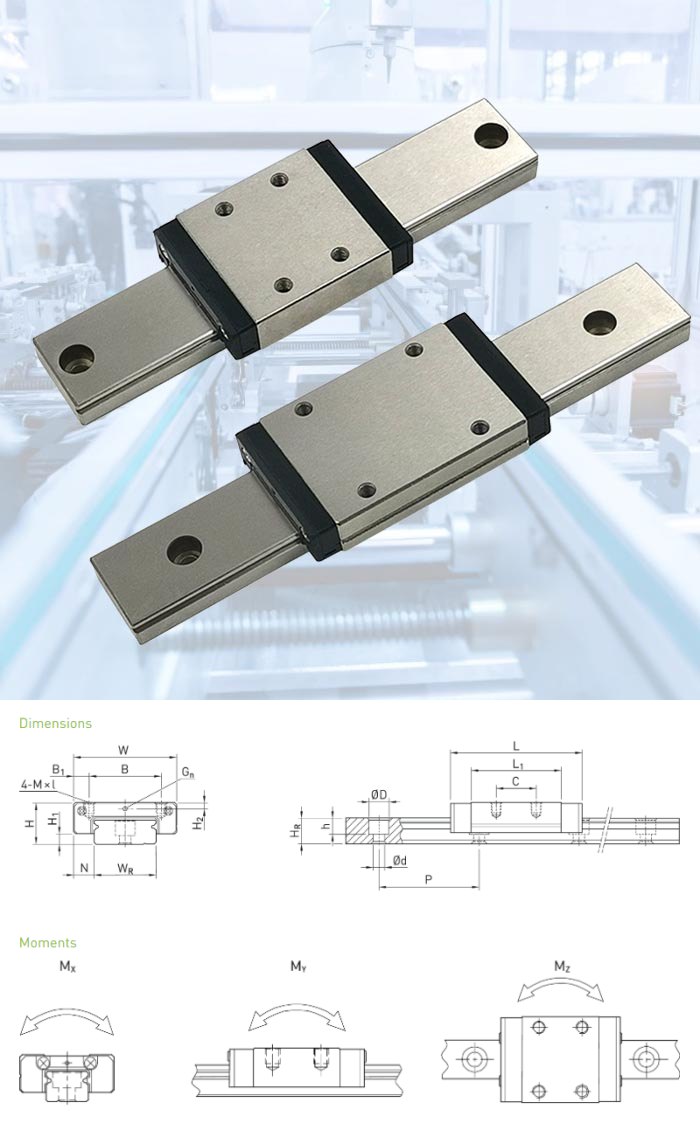

| H | Total height | 12 | mm |
| H1 | 2.9 | mm | |
| N | 6 | mm | |
| W | Block width | 30 | mm |
| B | 21 | mm | |
| B1 | 4.5 | mm | |
| C | 12 | ||
| L1 | 27.5 | mm | |
| L | Block length | 39.3 | mm |
| Gn | Ø1.4 | ||
| M | M3 | mm | |
| l | 3 | mm | |
| H2 | 2.4 | mm | |
| Mass | 0.04 | kg |
| H | Total height | 12 | mm |
| H1 | 2.9 | mm | |
| N | 6 | mm | |
| W | Block width | 30 | mm |
| B | 23 | mm | |
| B1 | 3.5 | mm | |
| C | 24 | ||
| L1 | 38.5 | mm | |
| L | Block length | 50.7 | mm |
| Gn | Ø1.4 | ||
| M | M3 | mm | |
| l | 3 | mm | |
| H2 | 2.4 | mm | |
| Mass | 0.06 | kg |
