Product Description

EGH-SA/EGH-CA series

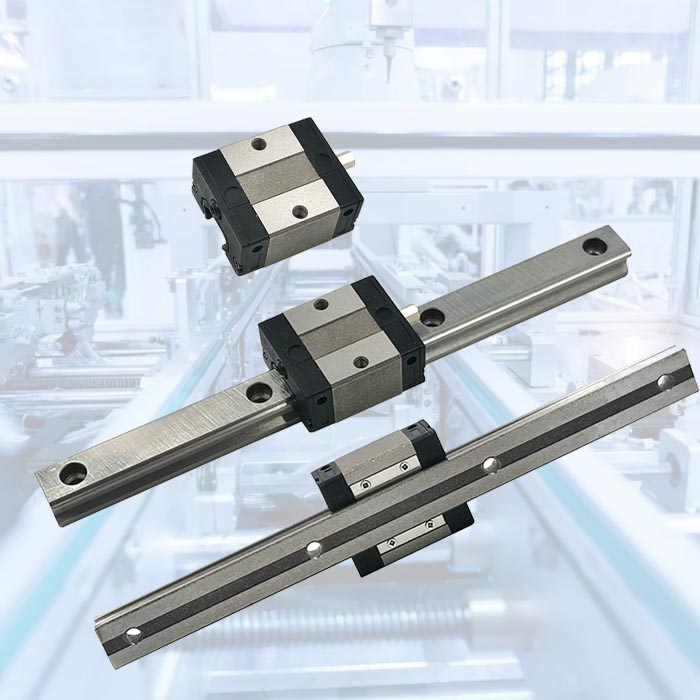

equivalent hiwin brand block bearing egh15sa linear guide bearing

Details of egh15sa

Product name:equivalent hiwin brand block bearing egh15sa linear guide bearing

Part No : EGH15SA, EGH15SAZ0C, EGH15SAZAC, EGH15SAZBC,EGH15SAZ0H, EGH15SAZAH, EGH15SAZBH

Series: EG series

Block Type: Square type

Model Size : 15 mm

Load Type: Medium load

Block Mounting: Mounting from Top

Block: Standard type block

Preload Class: Very Light Preload (Z0), Light Preload (ZA) , Medium Preload (ZB)

Precision code:C,H

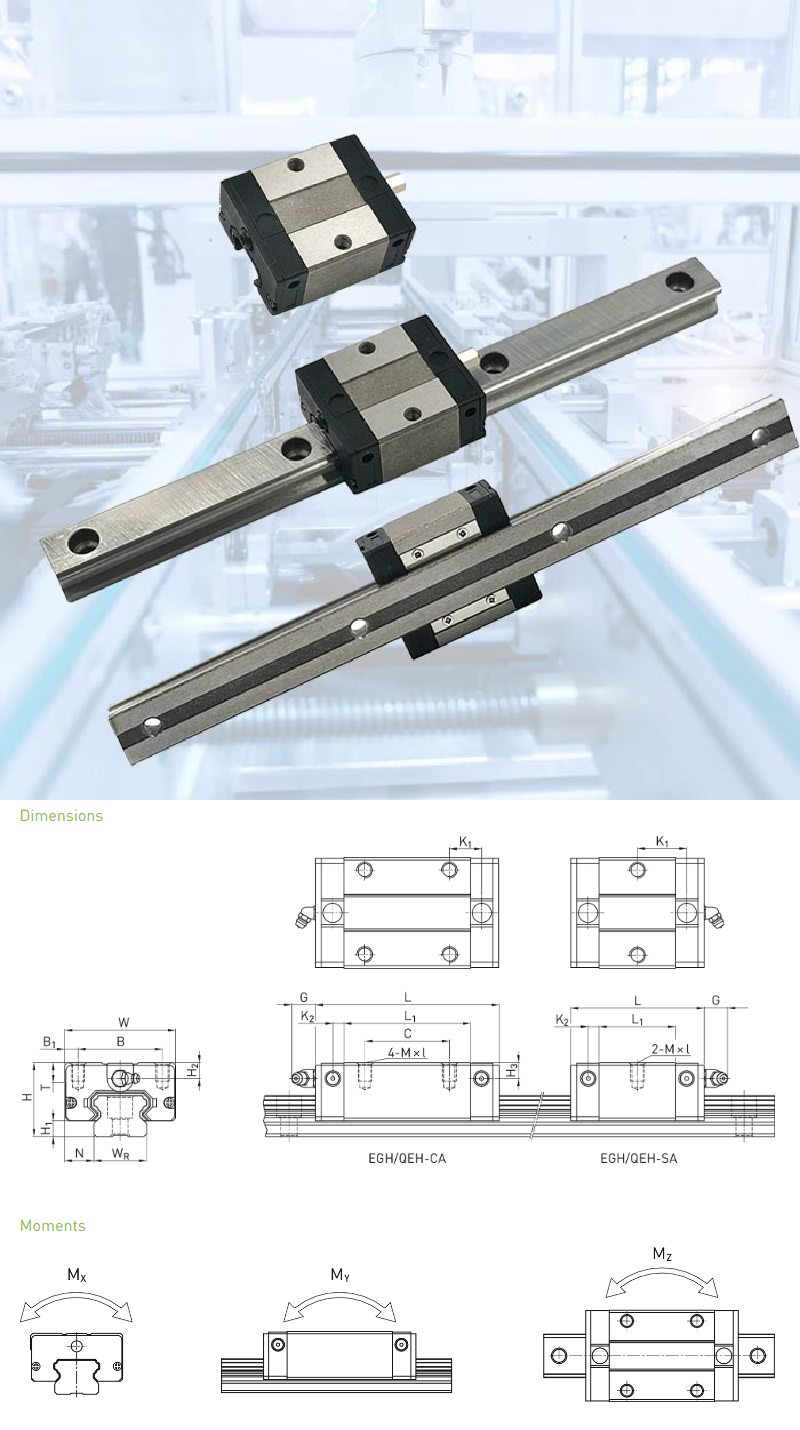

Datasheet of egh15sa



H Total height 24 mm
H1   4.5 mm
N   9.5 mm
W Block width 34 mm
B   26 mm
B1   4 mm
L1   23.1 mm
L Block length 40.1 mm
K1   14.8 mm
K2   3.5 mm
G   5.7 mm
M   M4
l   6 mm
T   6 mm
H2   5.5 mm
H3   6 mm
  Mass 0.09 kg
