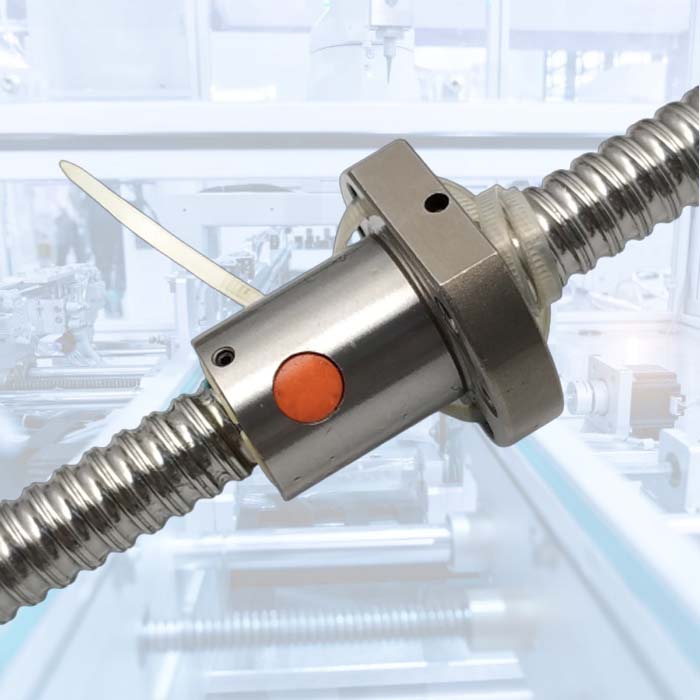

ball screw sfu1204

ball screw sfu1204

Specifications:
Brand: FON
Manufacturing Process: Rolled Thread
Precision: C7 Grade ( We also can provide C5 Grade, please contact us )
Material: GCr15 steel
Model: SFU1204

1. With ball motion, no crawling phenomenon of sliding motion.
2. Positive and negative rotation, can provide left and right rotation butt, high-precision positioning.
3. Absorb shock, compensations for radial, angular and axial deviations
4. Clockwise and counterclockwise rotation characteristics are exactly the same.
5. Hinged or stop-screw fixed coupling, can be processed according to customer requirements.

Customizable lengths:
We can provide any length that you want, and please let us know for what lengths are suitable for you then we will calculate the total costs for you as soon as possible.
If you need to according to your drawings end machining, please tell us before order.

Application:
Ball screws are used in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack.
Because its small friction drag, they are also used in machine tools, robots and precision assembly equipment.
High precision ball screws are used in steppers for semiconductor manufacturing and so on.

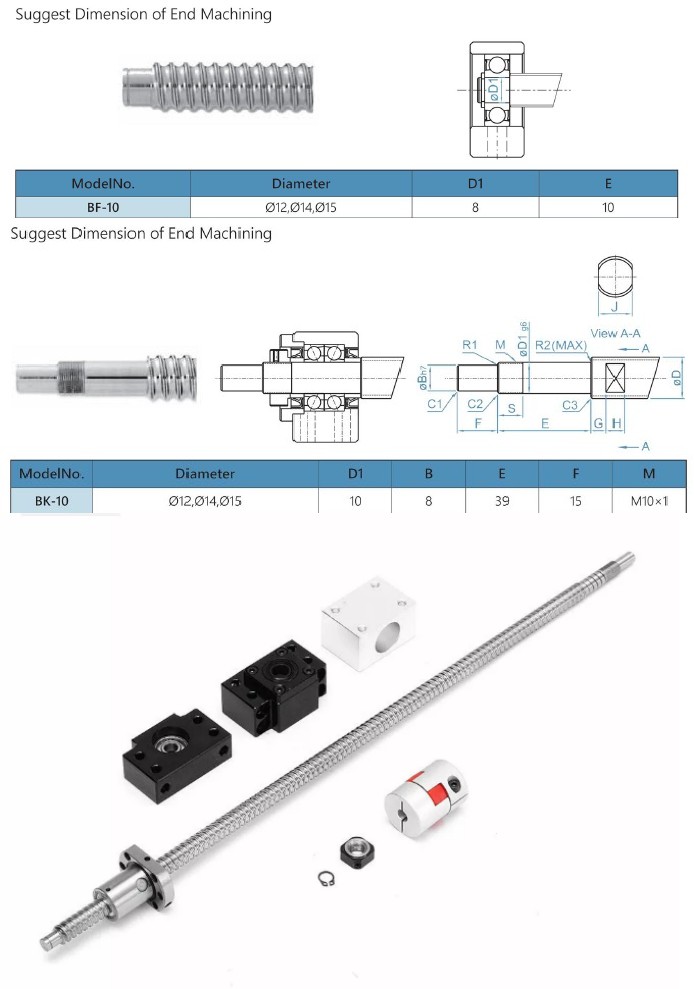

ball screw sfu1204 suggest dimension of end machining
