cnc 1605
cnc 1605

cnc 1605

Product Tags :
Product Description

cnc 1605

  1. Grade: C7,C5
    2. Diameter: 12mm,16mm,20mm,25mm,32mm,40mm,50mm,63mm,80mm
    3. Standard Model :SFU/DFU/SFI/DFI SFU1204/1605/1610/2005/2010/2505/2510/3205/3210/4005/4010/5005/5010/5020/6310/6320/8010/8020
    4. Certification: ISO9001, SGS, CTI, ROHS
    5.Pitch
    pitch 4mm: SFU1204,
    pitch 5mm: SFU1605, SFU2005, SFU2505, SFU3205, SFU4005, SFU5005
    pitch 10mm: SFU1610, SFU2010, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310,
    double nut: DFU1605, DFU2005, DFU2505, DFU3205, DFU3210, DFU4005, DFU4010, DFU5010, DFU6310,
    big pitch: SFE1616,SFE1632,SFE2020,SFE2040,SFE2525,SFE2550,SFE3232,SFE3264,SFE4040, SFE5050

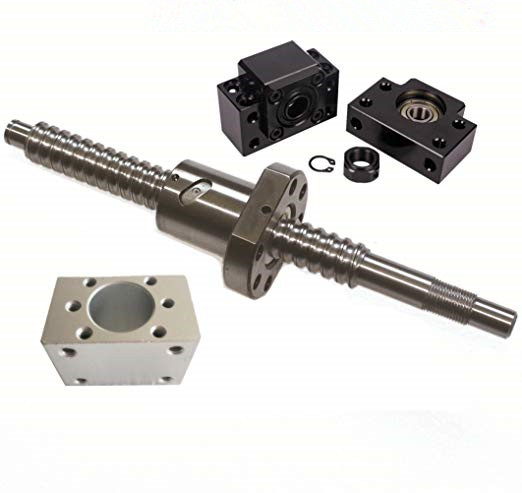

    ball screw parts: Ball screw nut, nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available

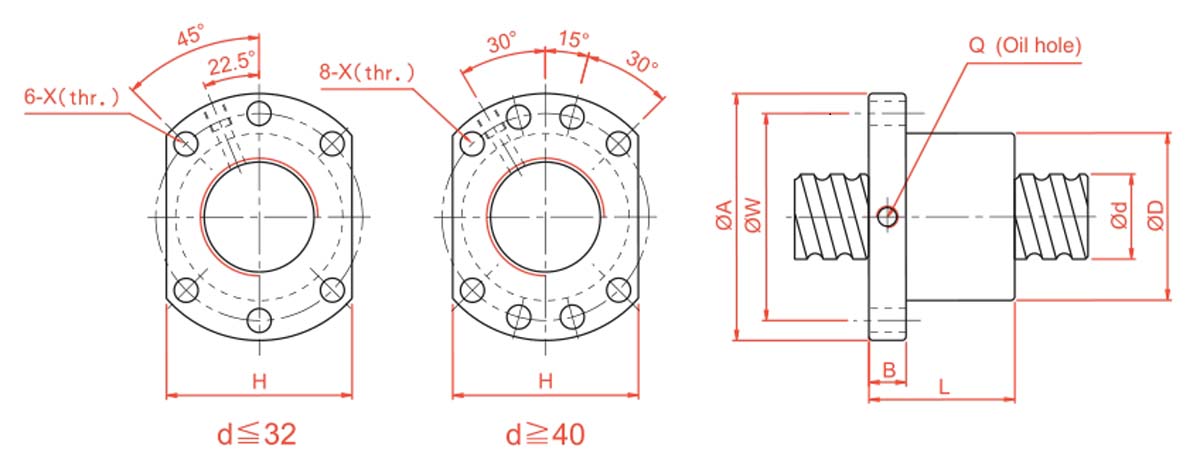

Datasheet of cnc 1605



Model No d i Da Dimension Loading rating K
kgf/μm
D A B L W H X Q n Ca(kgf) Coa(kgf)
SFU1605-4 16 5 3.175 28 48 10 45 38 40 5.5 M6 1X4 1380 3052 32

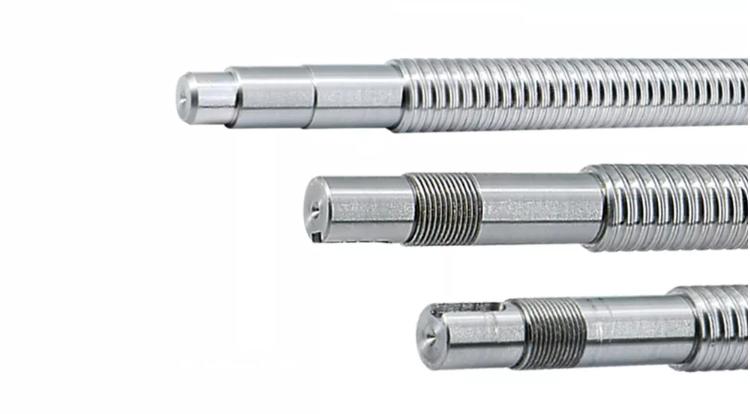

CNC 1605 end machining
