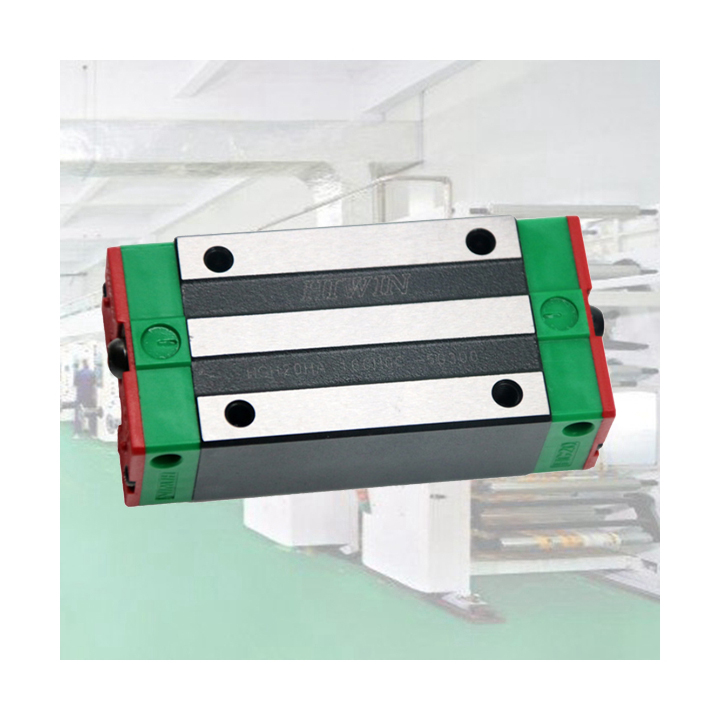

Product name: hgh30ha hiwin hgh35ha linear guides price
Series: HG
Block type: Square type
Model size: 35
Load type: Heavy load
Block mounting type: Mounting From Top
Preload code: Z0, ZA
Precision code: C,H
Applicable rails：HGR35

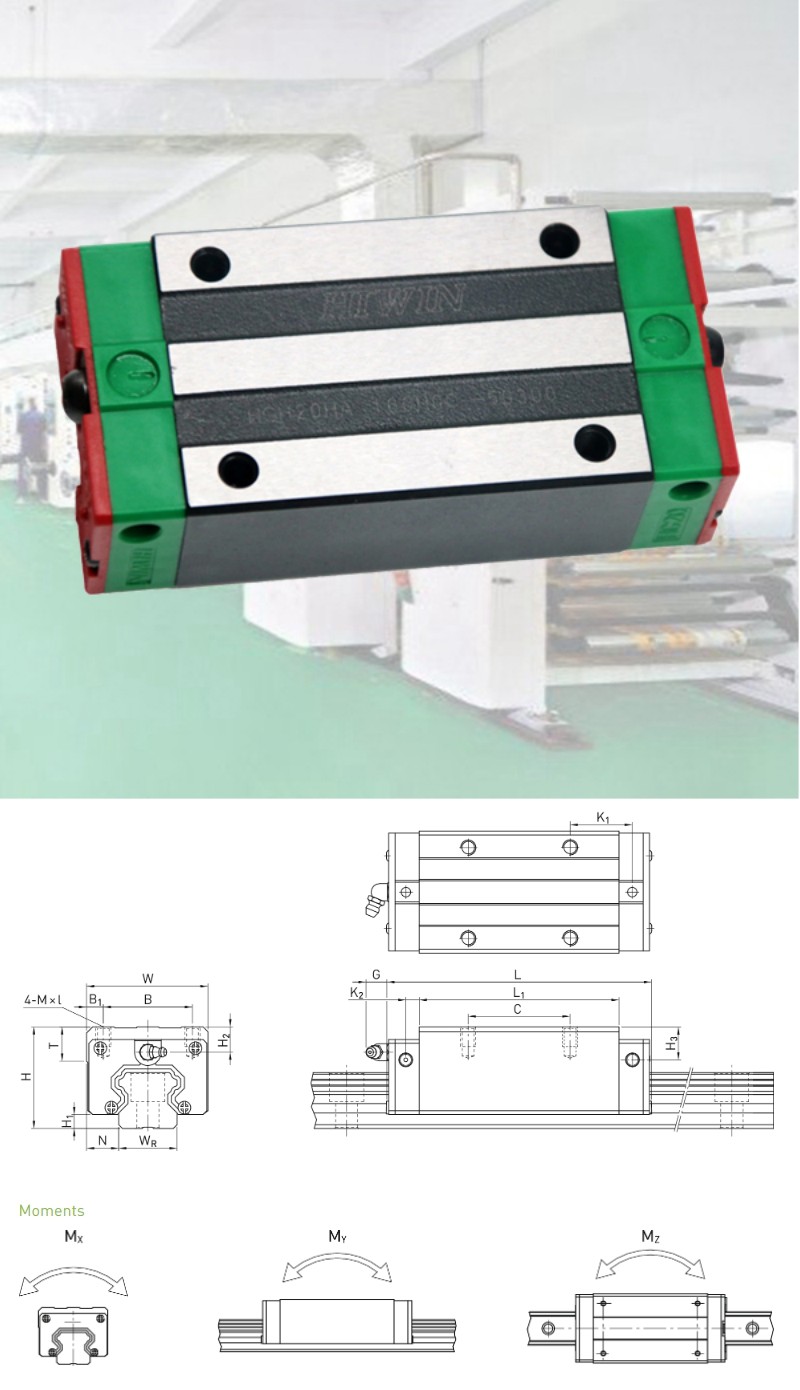

| H | Total height | 55 | mm |
| H1 | 7.5 | mm | |
| N | 18 | mm | |
| W | Block width | 70 | mm |
| B | 50 | mm | |
| B1 | 10 | mm | |
| C | 72 | mm | |
| L1 | 105.8 | mm | |
| L | Block length | 138.2 | mm |
| K1 | 22.5 | mm | |
| K2 | 7 | mm | |
| G | 12 | mm | |
| M | M8 | ||
| l | 12 | mm | |
| T | 10.2 | mm | |
| H2 | 16 | mm | |
| H3 | 19.6 | mm | |
| Mass | 1.92 | kg |
