Features of mini mgn series

Tiny and light weight, suitable for miniature equipment.
All materials for block and rail, including rolling balls and ball retainers, are in special grade of stainless steel for anti-corrosion purpose.
Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy.
Steel balls will be held by miniature retainer to avoid balls from falling out even when the blocks are removed from the rail installation.
Interchangeable types are available in certain precision grades.

Construction of mini mgn series

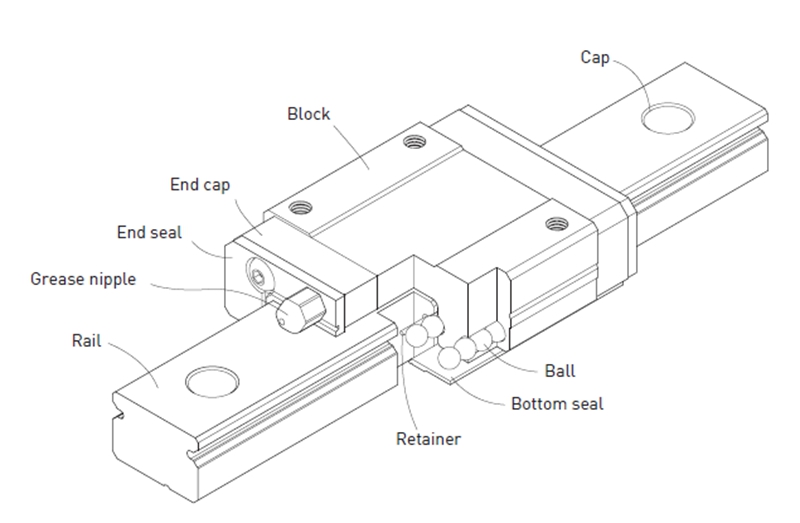

Rolling circulation system: Block, rail, end cap and retainer
Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.
Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)

Application

MGN/MGW series is available for various applications, such as semiconductor equipments, PCB /IC equipments, medication, robotics, measuring equipments, automation equipments, and other miniature sliding machinery.

Model Number mini mgn series

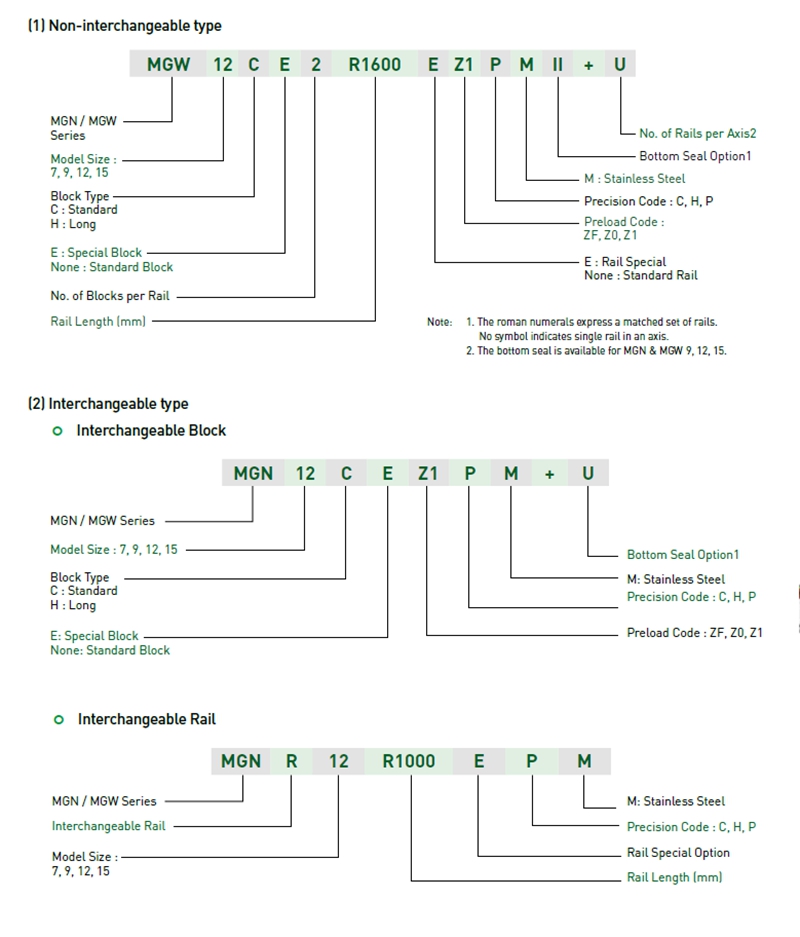

MGN and MGW series linear guideway can be classified into non interchangeable and interchangeable types, which are the same size.The interchangeable type is more convenient due to replaceable rails; however, the precision is less than non-interchangeable type. With strict dimension and quality control, the interchangeable type linear guideways would be a rather suitable choice for customers when rails don’t need to be paired. The model number contains information of the size, type, accuracy, preload, and so on.

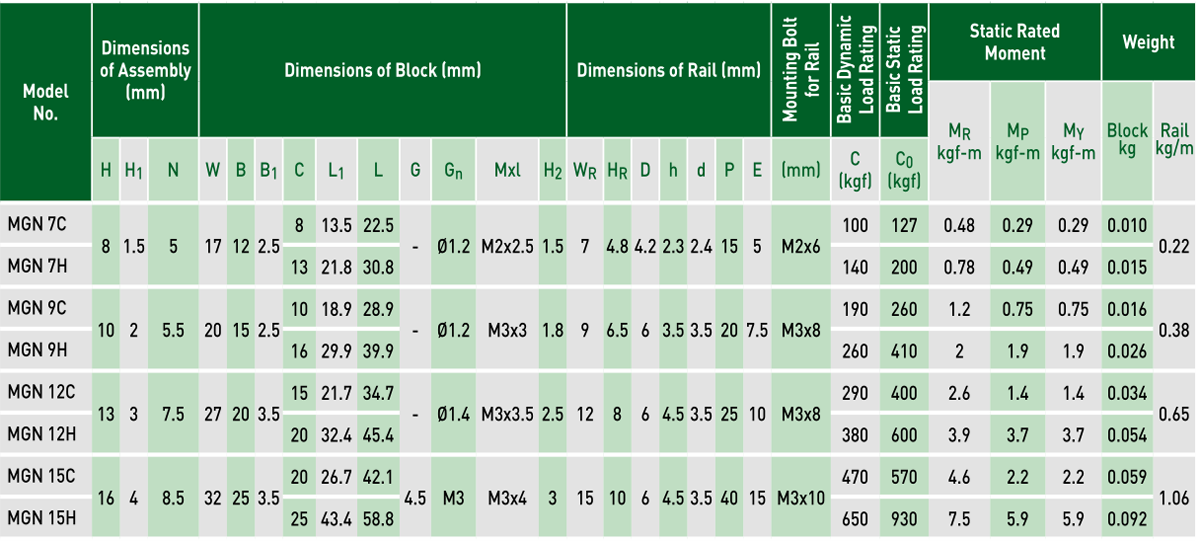

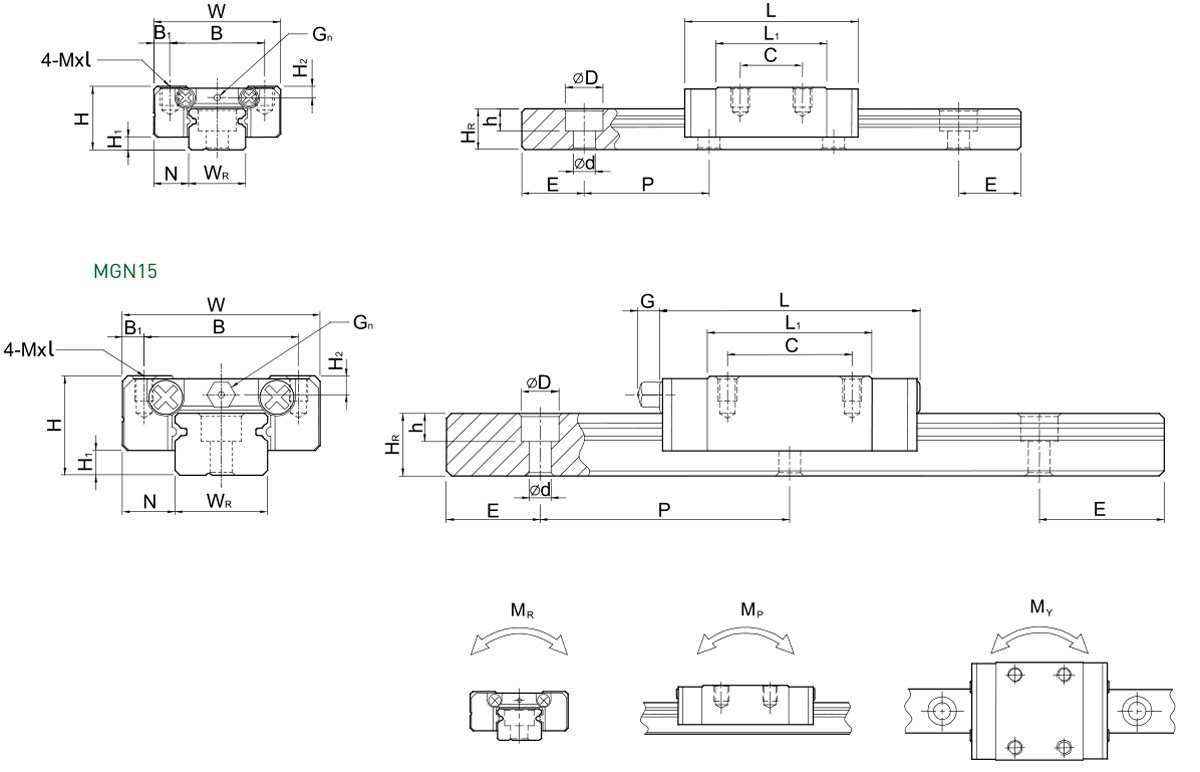

Datasheet of mini mgn series

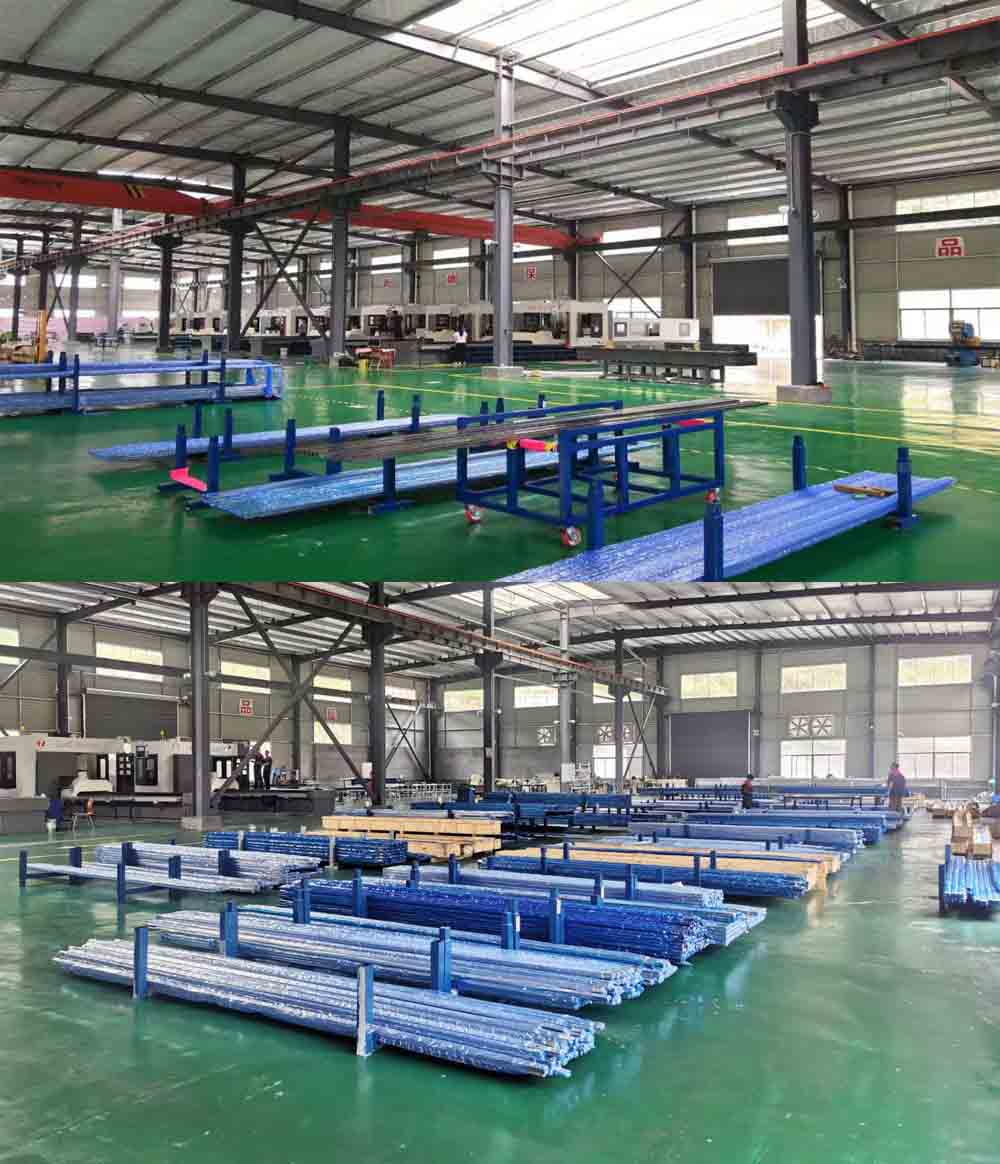

Our Factory
