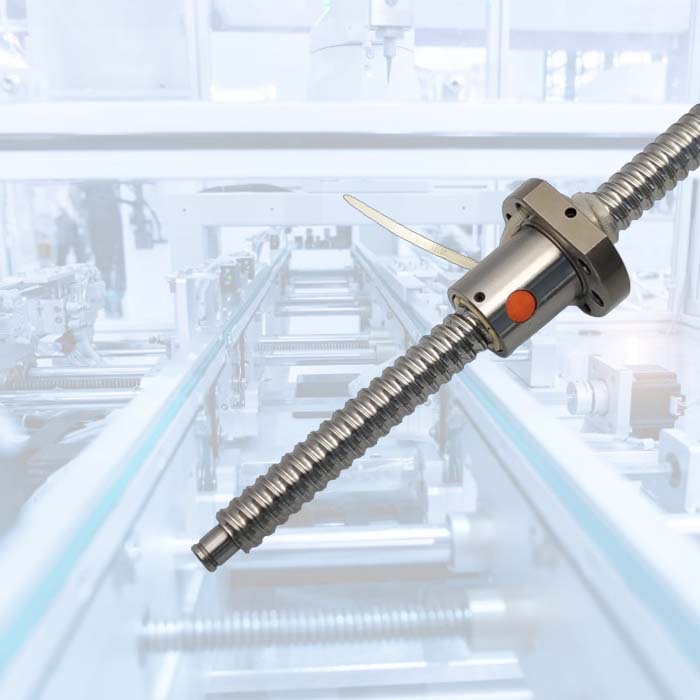

Guide width or diameter: 12MM
Model number: rm1204
Precision rating: C7
Applicable industries: Manufacturing Plant
Manufacturing process: Rolled Thread
Material: GCr15
Product name: rm1204
Shaft diameter: 12mm
Pitch: 4mm
Ball screw nut: single
Used for: cnc machine

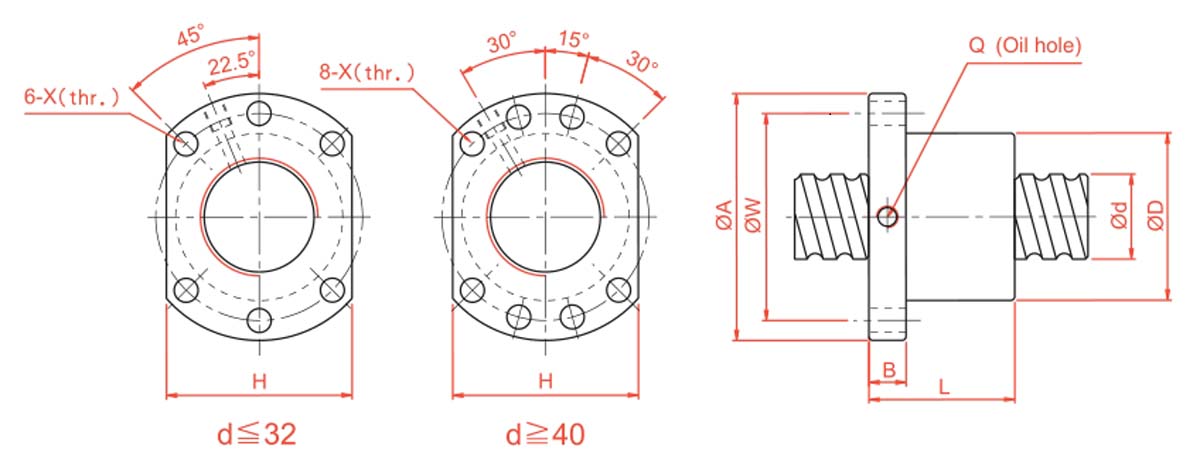

| Model No | d | i | Da | Dimension | Loading rating | K kgf/μm |
|||||||||
| D | A | B | L | W | H | X | Q | n | Ca(kgf) | Coa(kgf) | |||||
| SFU1204-4 | 12 | 4 | 2.5 | 24 | 40 | 10 | 40 | 32 | 30 | 4.5 | 1X4 | 902 | 1884 | 26 | |
