2005 ball screw rm2005

2005 ball screw rm2005

Specifications:

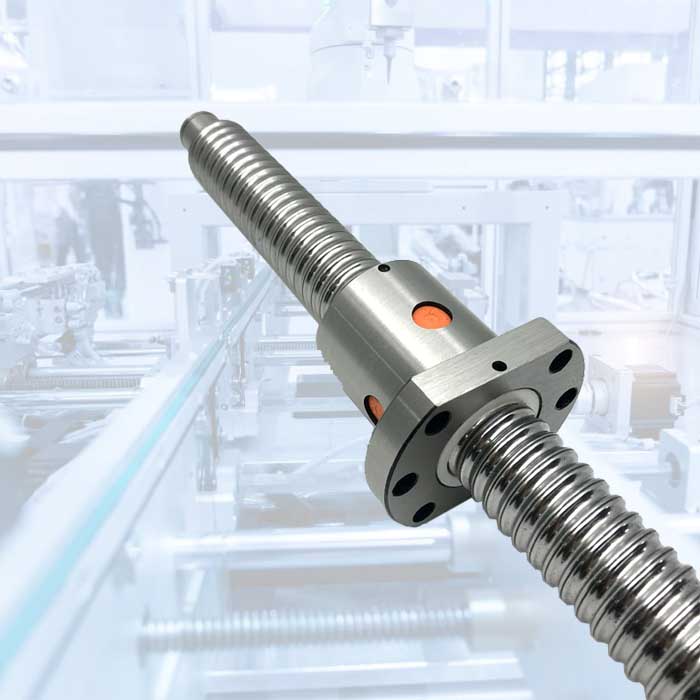

Product name:2005 ball screw rm2005
Brand: FON
Manufacturing Process: Rolled Thread
Precision: C7 Grade ( We also can provide C5 Grade, please contact us )
Material: GCr15 steel
Model: SFU2005

Customizable lengths:
We can provide any length that you want, and please let us know for what lengths are suitable for you then we will calculate the total costs for you as soon as possible.
If you need to according to your drawings end machining, please tell us before order.

2005 ball screw application

1.Optical measuring instrument

2.Precise gauge in opitical experiment

3.Precision fine tunning optical stage

4.Mcro-hole EDM, PCB drilling machine

5.Measuring instruments

6.Operation mechanism

7.Survey device. Quantitative movement

8.CNC machine tool

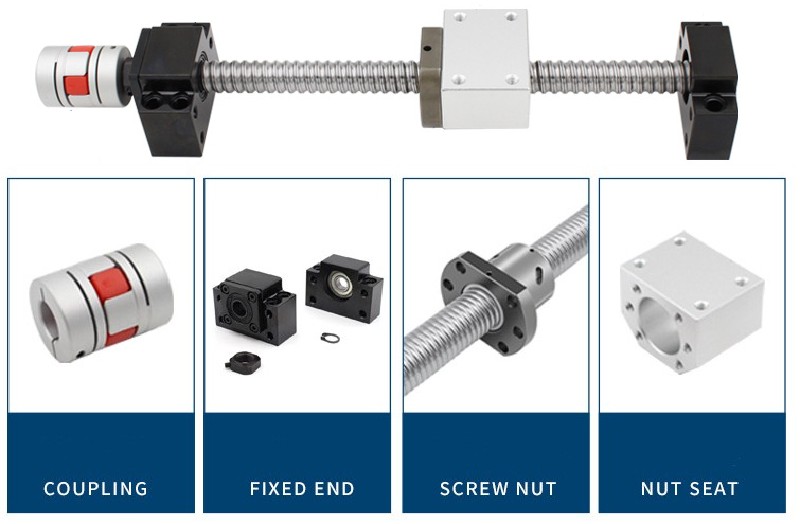

We can also supply parts of ball screw

 2005 ball screw and nut, fixed end,nut seat/nut housing and coupling

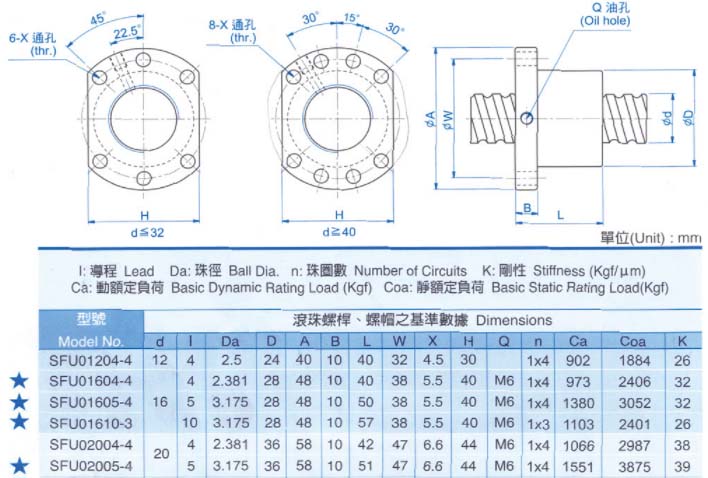

Datasheet for 2005 ball screw
