sfu2005 ball screw with sfur 2005 ball nut

sfu2005 ball screw with sfur 2005 ball nut

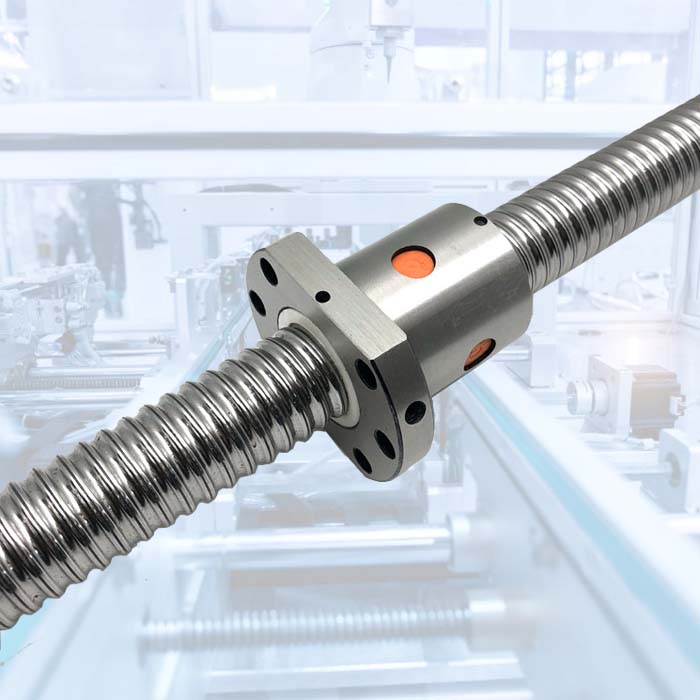

A ball screw is a mechanical linear actuator that translates rotational motion to linear motion. They are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. And it has the accuracy rating of the C7 level with 20mm ball screw diameter. Ball screw flange nut SFU2005 with outer diameter of 38mm.

Specifications of Ball Screw Rod
Model No.: SFU2005
Accuracy Rating: C7 Rolled Ball Screw
Diameter of the Ball Screw Rod: 20mm
Ball Diameter  : 3.175mm

Specifications of SFU2005 Flange Nut
Nut Material: Bearing Steel
Flange Nut Outer Dia.: 38mm

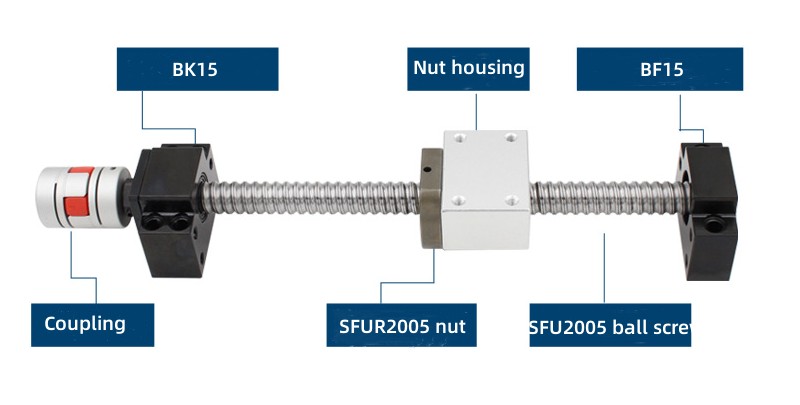

One set sfu2005 include below item

SFU2005 lead screw x1

SFU2005 Nut x1

2005 Nut housing x1

BK15 holder x1

BF15 support seat x1

Coupling x1

Datasheet of sfu2005 ball screw
