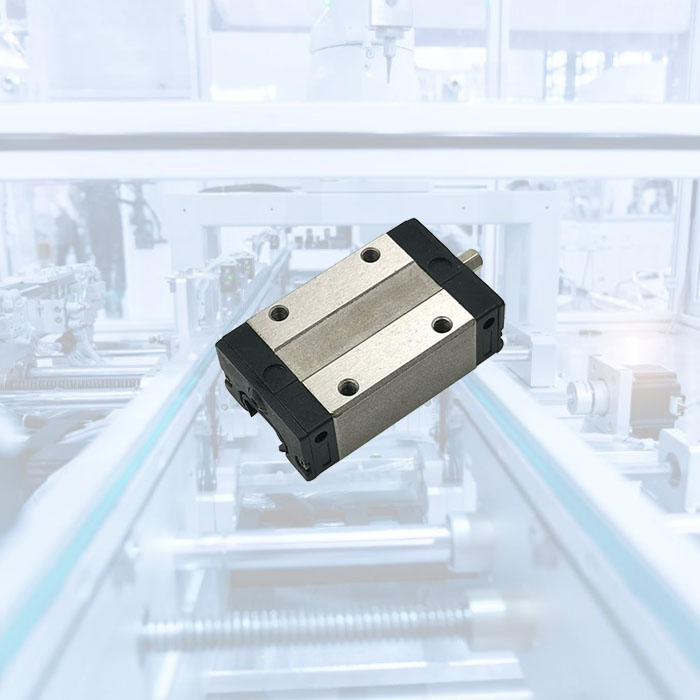

Product name:15mm linear guide and slides EGH15CA
Part No : EGH15CA, EGH15CAZ0C, EGH15CAZAC, EGH15CAZBC,EGH15CAZ0H, EGH15CAZAH, EGH15CAZBH
Series: EG series
Block Type: Square type
Model Size : 15 mm
Load Type: Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Very Light Preload (Z0), Light Preload (ZA) , Medium Preload (ZB)
Precision code：C,H

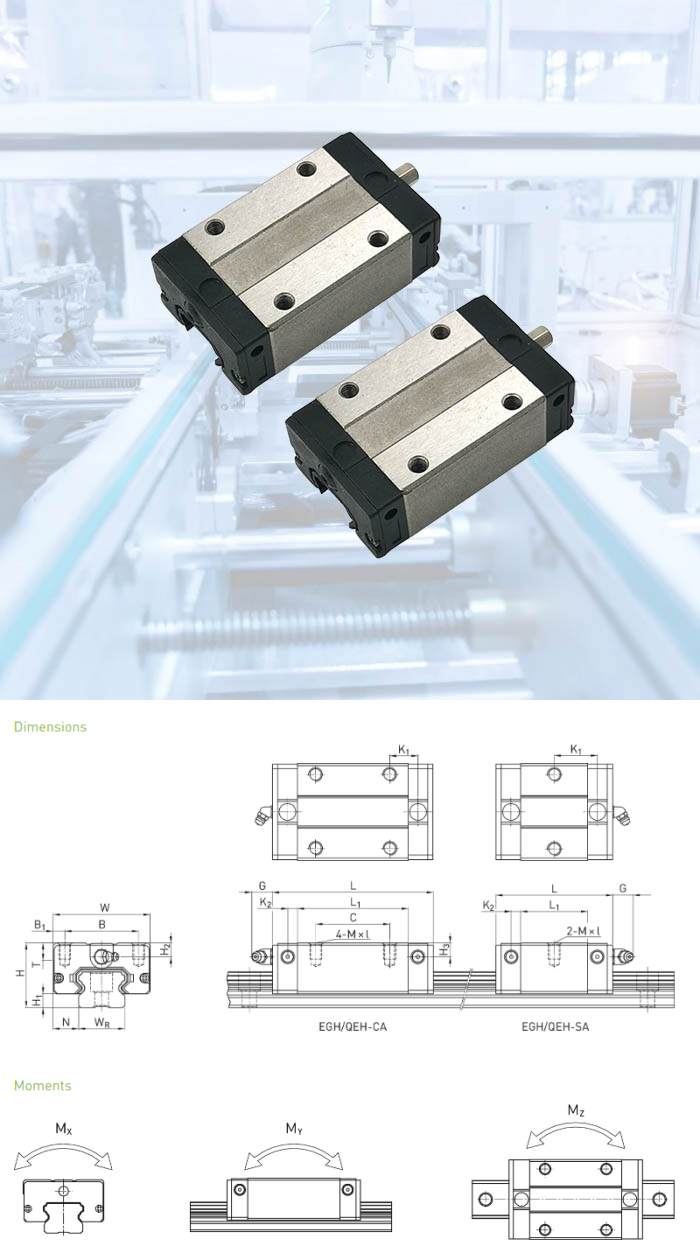

| H | Total height | 24 | mm |
| H1 | 4.5 | mm | |
| N | 9.5 | mm | |
| W | Block width | 34 | mm |
| B | 26 | mm | |
| B1 | 4 | mm | |
| C | 26 | mm | |
| L1 | 39.8 | mm | |
| L | Block length | 56.8 | mm |
| K1 | 10.15 | mm | |
| K2 | 3.5 | mm | |
| G | 5.7 | mm | |
| M | M4 | ||
| l | 6 | mm | |
| T | 6 | mm | |
| H2 | 5.5 | mm | |
| H3 | 6 | mm | |
| Mass | 0.15 | kg |
