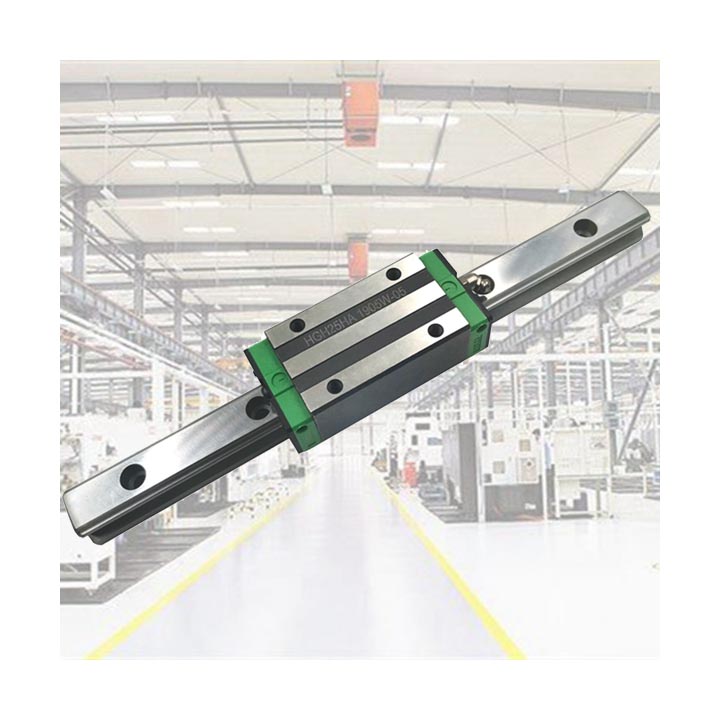

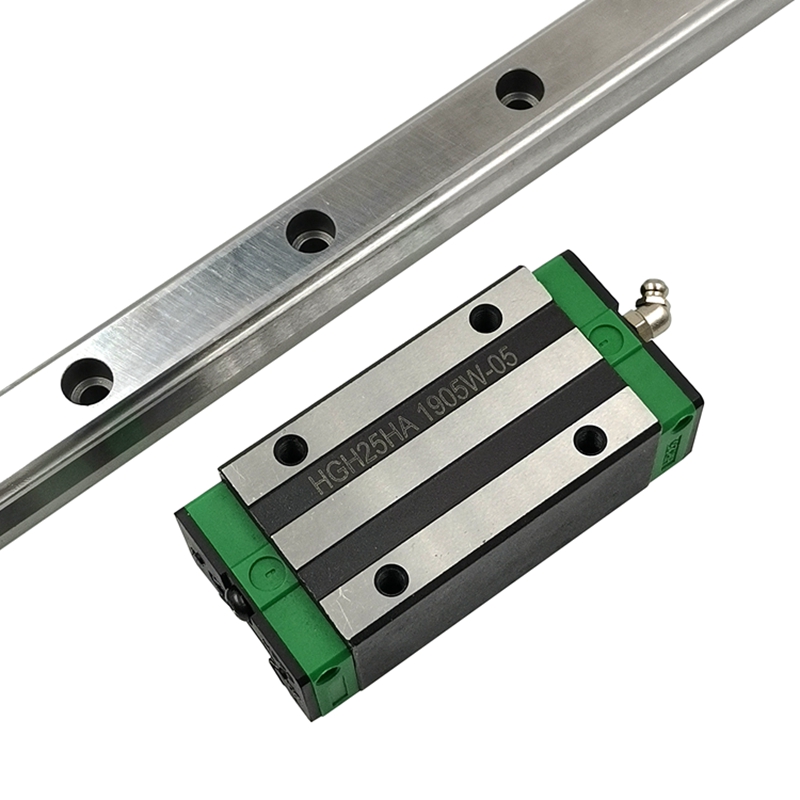

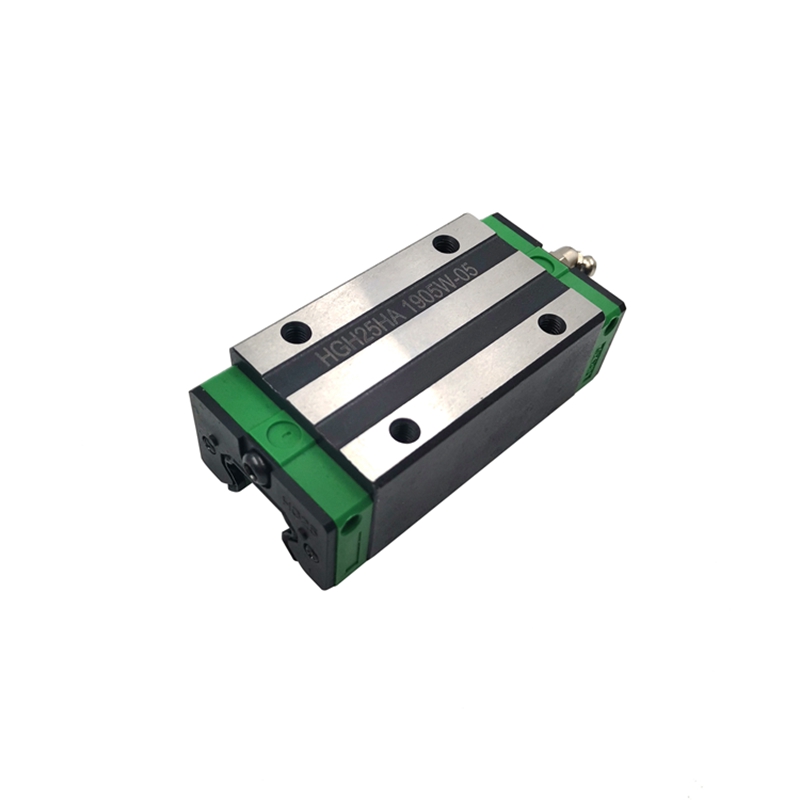

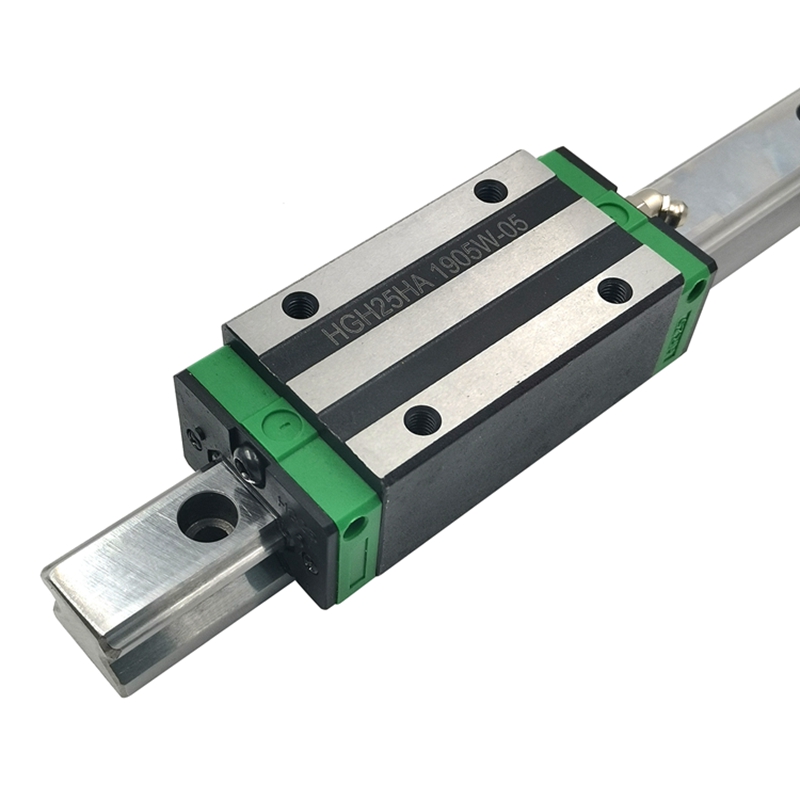

Part No : HGH25HA, HGH25HAZ0C, HGH25HAZAC, HGH25HAZ0H
Series: HG series
Block Type: Square type
Model Size : 25 mm
Load Type: Super heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Light Preload (0-0.02 C), Medium Preload (0.05-0.07 C)

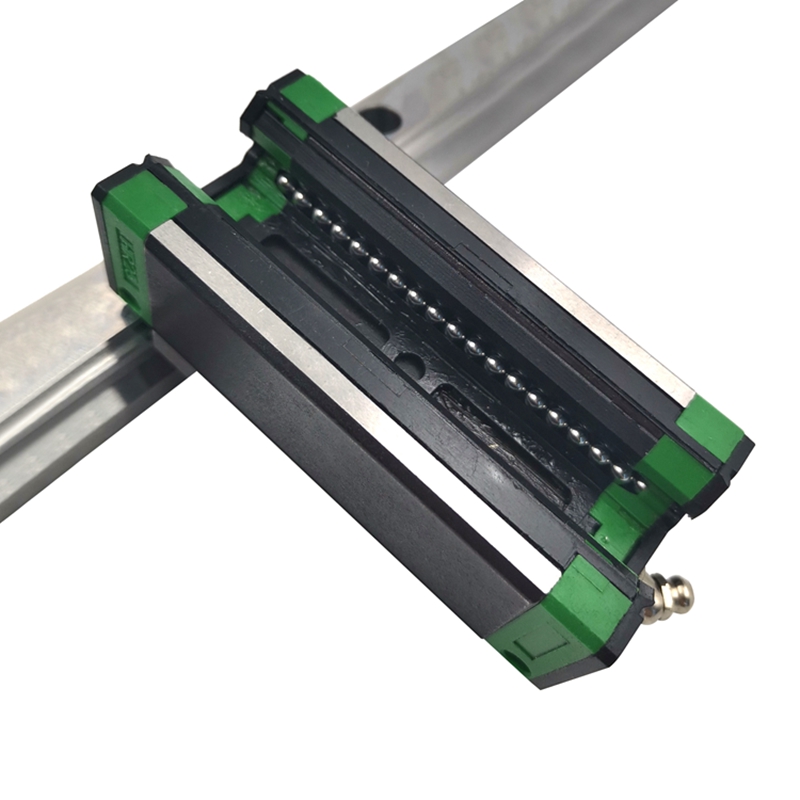

Linear displacement system on a guide that uses the circulation of balls in its interior for its displacement.
Rollers are the elements that slide on the rails and that support loads. Carriages are components in which the skids can be fixed to form more complex guidance systems.

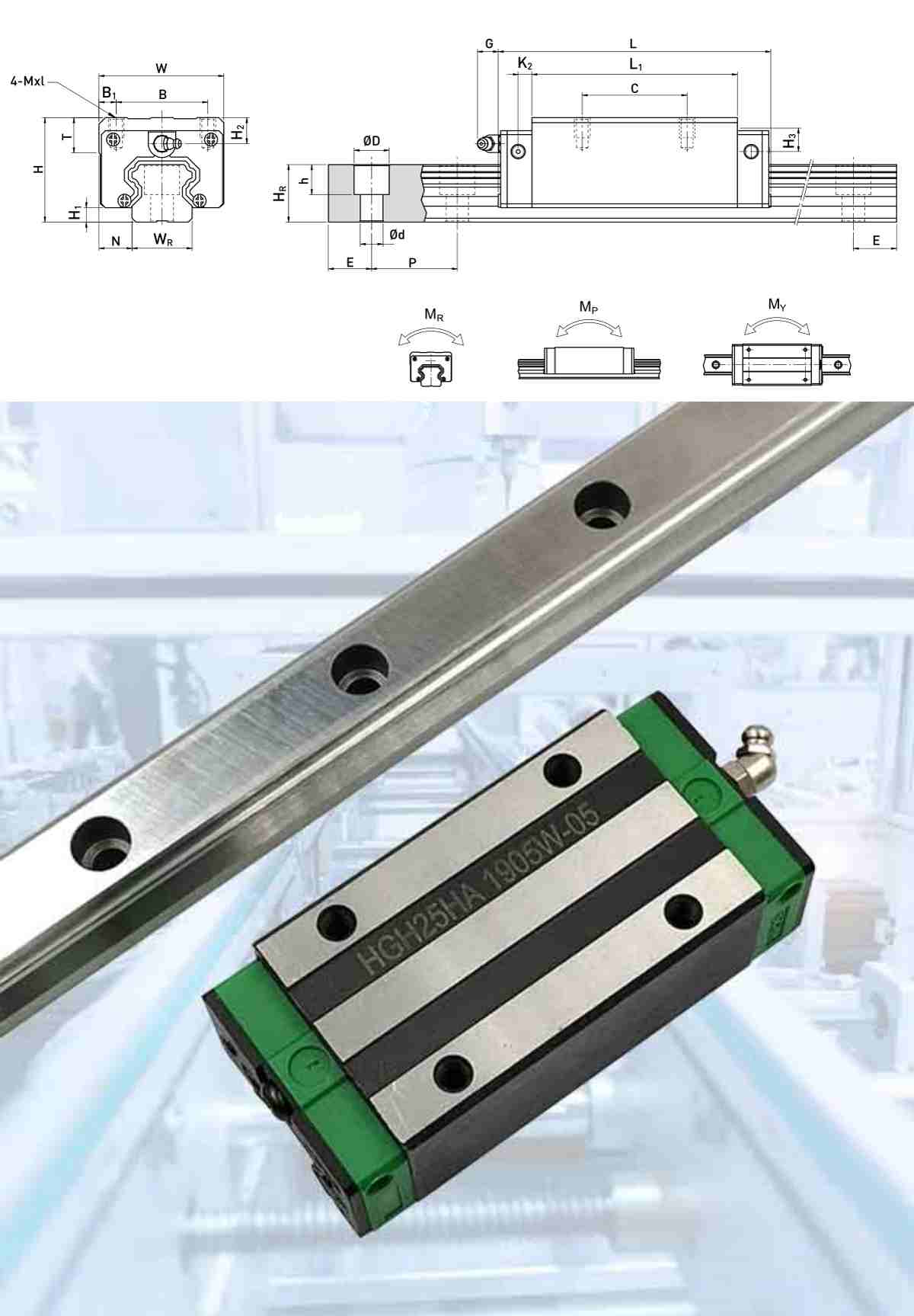

| H | Total height | 40 | mm |
| H1 | 5.5 | mm | |
| N | 12.5 | mm | |
| W | Block width | 48 | mm |
| B | 35 | mm | |
| B1 | 6.5 | mm | |
| C | 50 | mm | |
| L1 | 78.6 | mm | |
| L | Block length | 104.6 | mm |
| K1 | 18.5 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M6 | ||
| l | 8 | mm | |
| T | 8 | mm | |
| H2 | 10 | mm | |
| H3 | 9 | mm | |
| Mass | 0.69 | kg |
