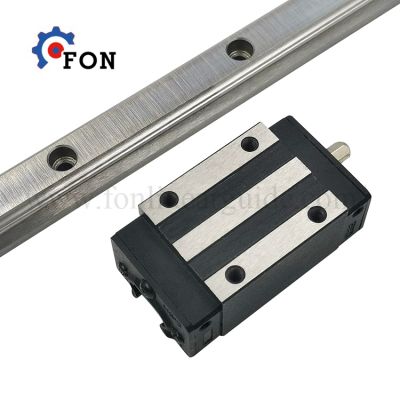

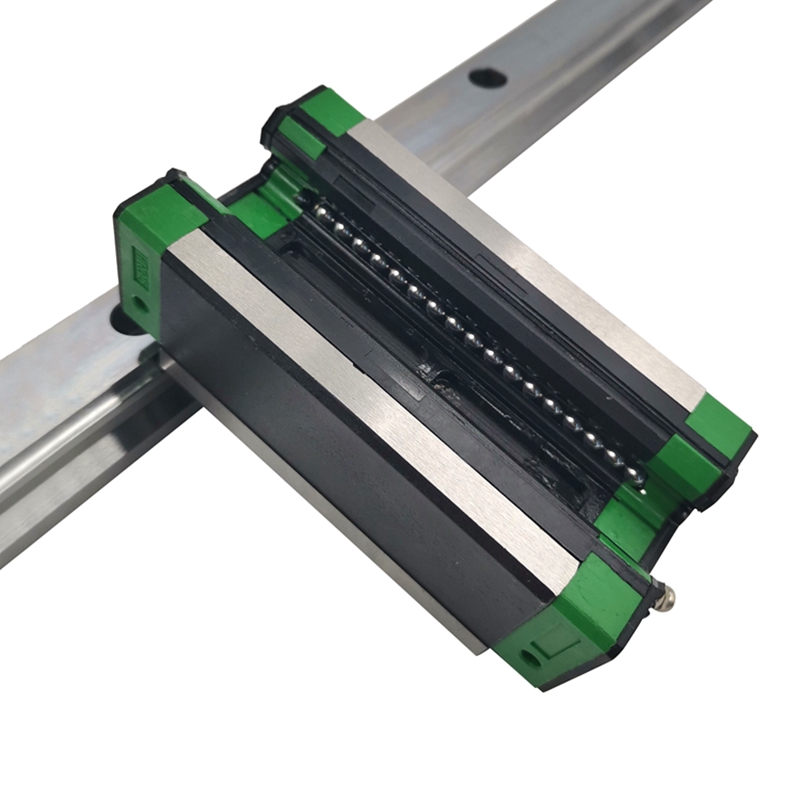

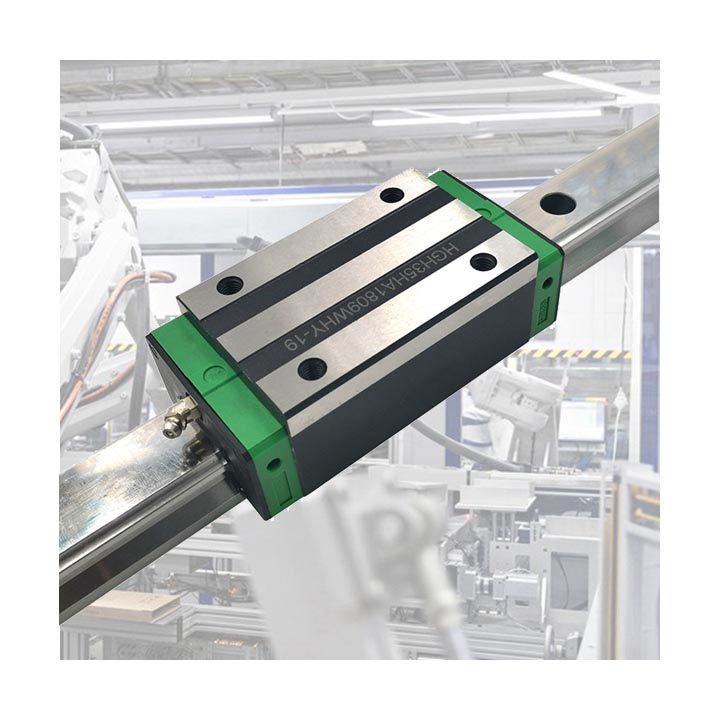

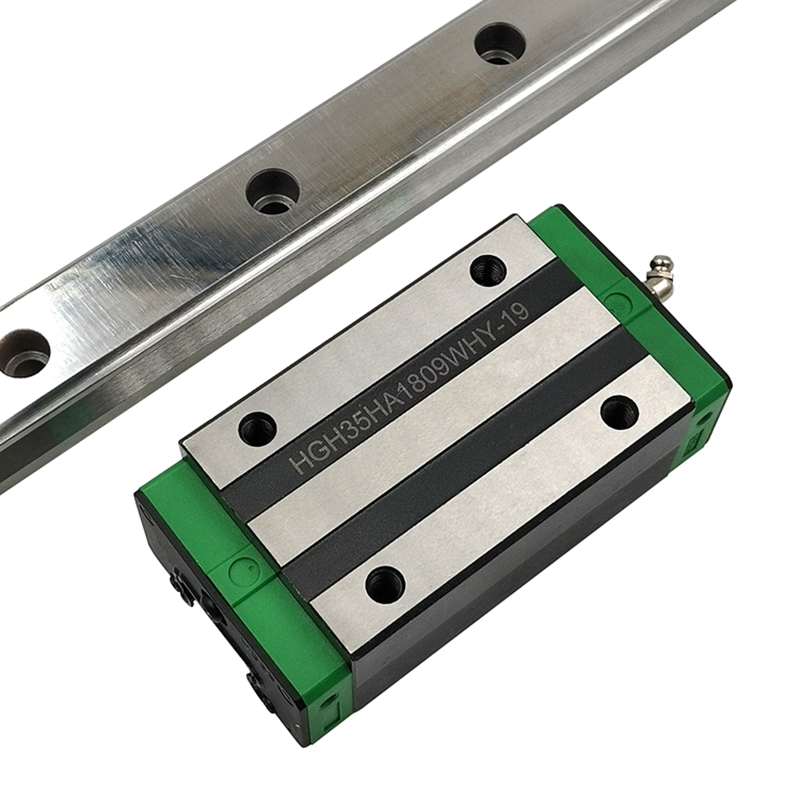

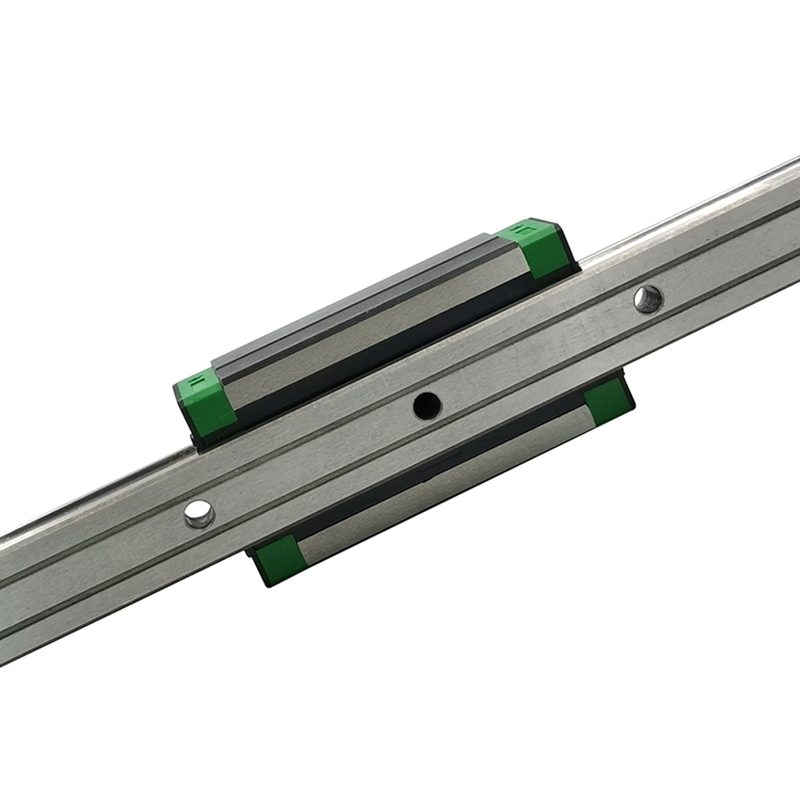

Part No:HGH45HA, HGH45HAZ0C, HGH45HAZAC,HGH45HAZ0H, HGH45HAZAH
Series: HG series
Block Type: Square type
Model Size : 45 mm
Load Type: Super heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Light Preload (0-0.02 C), Medium Preload (0.05-0.07 C)
Precision code:C or H
Dust Protection:Standard preotection (End seal and bottom seal)
Block height:60.5mm
Block width:86mm
Block length:171.2mm
Mass:3.61kg

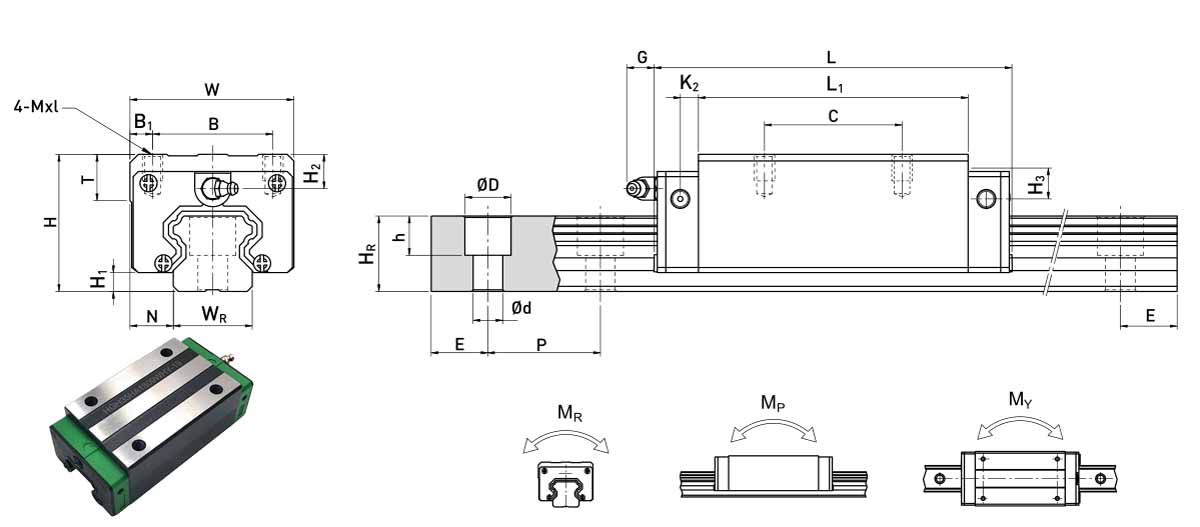

| H | Total height | 70 | mm |
| H1 | 9.5 | mm | |
| N | 20.5 | mm | |
| W | Block width | 86 | mm |
| B | 60 | mm | |
| B1 | 13 | mm | |
| C | 80 | mm | |
| L1 | 128.8 | mm | |
| L | Block length | 171.2 | mm |
| K1 | 28.9 | mm | |
| K2 | 10 | mm | |
| G | 12.9 | mm | |
| M | M10 | ||
| l | 17 | mm | |
| T | 16 | mm | |
| H2 | 18.5 | mm | |
| H3 | 30.5 | mm | |
| Mass | 3.61 | kg |
