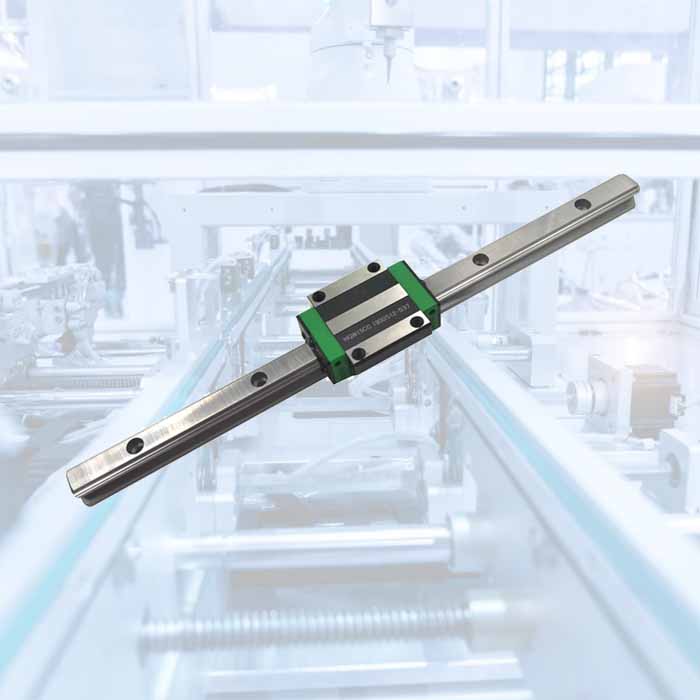

Brand:FON
Part No : HGW15CC, HGW15CCZ0C, HGW15CCZAC, HGW15CCZ0H, HGW15CCZAH
Series: HG series
Block Type: Flange type
Model Size : 15 mm
Load Type: Heavy load
Block Mounting: Top or Bottom
Block: Standard type block
Preload Class: Light Preload , Medium Preload
Precision code：C,H
Dust Protection Standard preotection (End seal and bottom seal)

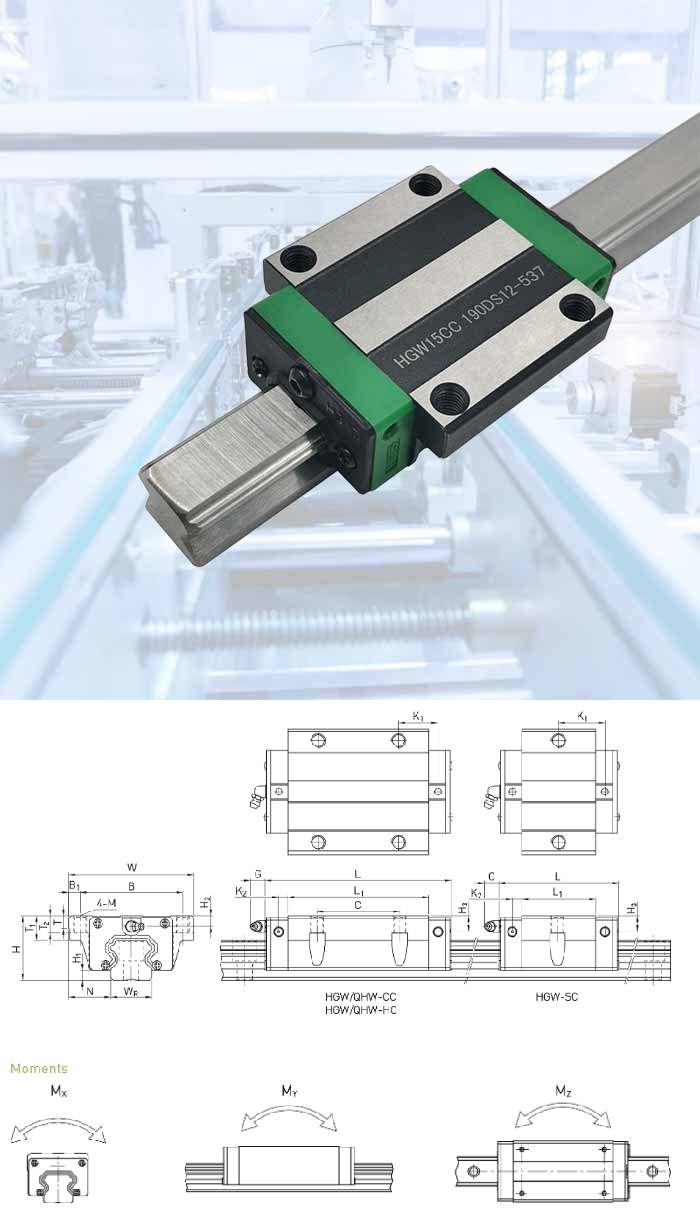

| H | Total height | 24 | mm |
| H1 | 4.3 | mm | |
| N | 16 | mm | |
| W | Block width | 47 | mm |
| B | 38 | mm | |
| B1 | 4.5 | mm | |
| C | 30 | mm | |
| L1 | 39.4 | mm | |
| L | Block length | 61.4 | mm |
| K1 | 8 | mm | |
| K2 | 4.85 | mm | |
| G | 5.3 | mm | |
| M | M5 | ||
| T | 6 | mm | |
| T1 | 8.9 | mm | |
| T2 | 7 | mm | |
| H2 | 3.95 | mm | |
| H3 | 3.7 | mm | |
| Mass | 0.17 | kg |
