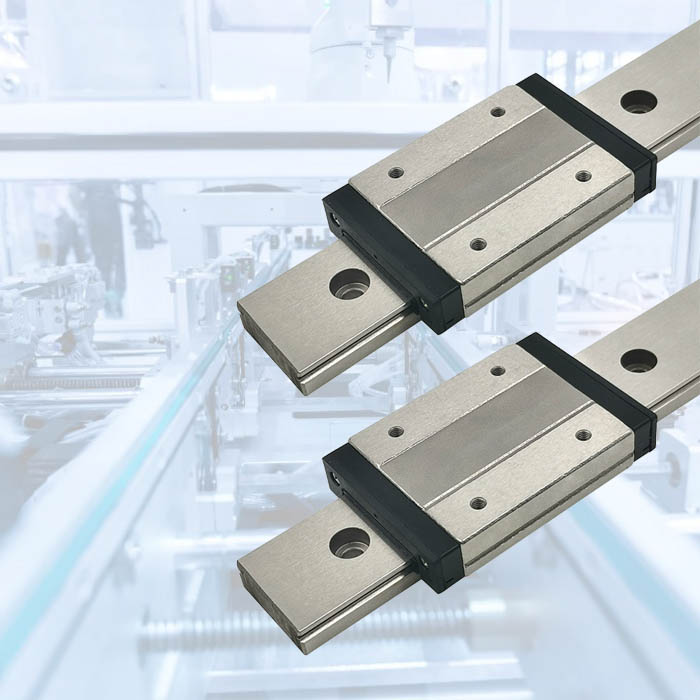

Product name:equivalent hiwin rail linear block MGW12H
Series:MGW
Size:12
Block No:MGW12H, MGW12HZFC, MGW12HZ0C, MGW12HZ0H, MGW12HZ1C, MGW12HZ1H
Block Type: Long
Block preload:Light Clearance(ZF), Very Light Preload（Z0), Light Preload (Z1)
Precision code/Accuracy Classes: C,H

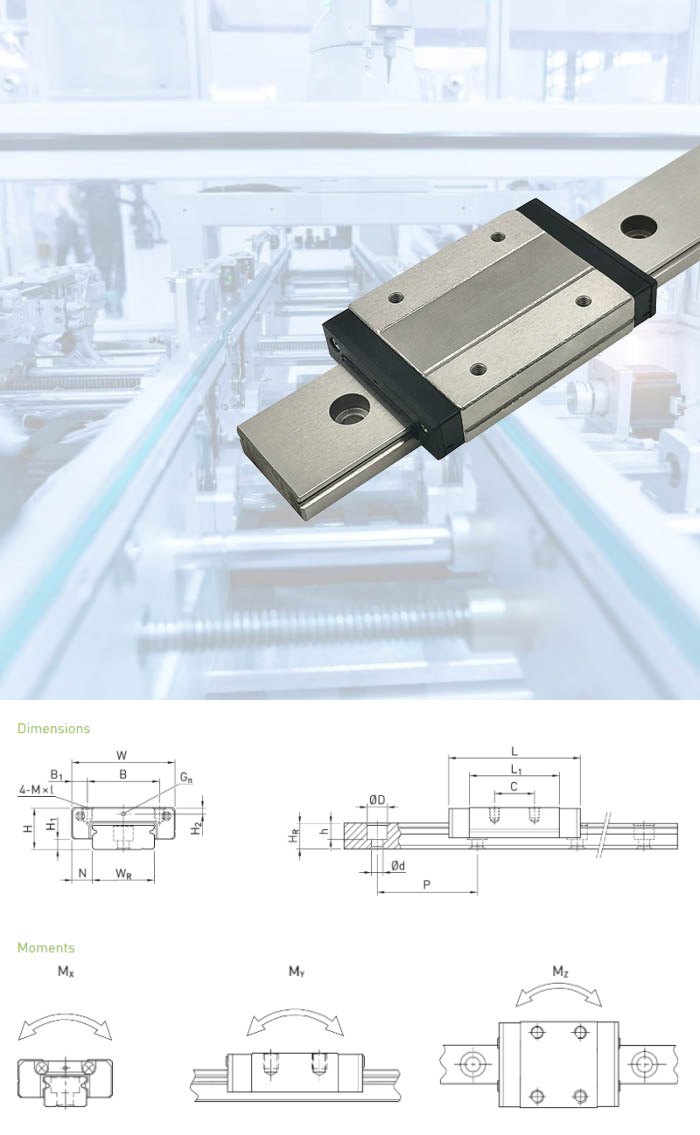

| H | Total height | 14 | mm |
| H1 | 3.4 | mm | |
| H1 | With bottom seal | 2.6 | mm |
| N | 8 | mm | |
| W | Block width | 40 | mm |
| B | 28 | mm | |
| B1 | 6 | mm | |
| C | 28 | ||
| L1 | 45.6 | mm | |
| L | Block length | 60.4 | mm |
| Gn | Ø2 | ||
| M | M3 | mm | |
| l | 3.6 | mm | |
| H2 | 2.8 | mm | |
| Mass | 0.1 | kg |
