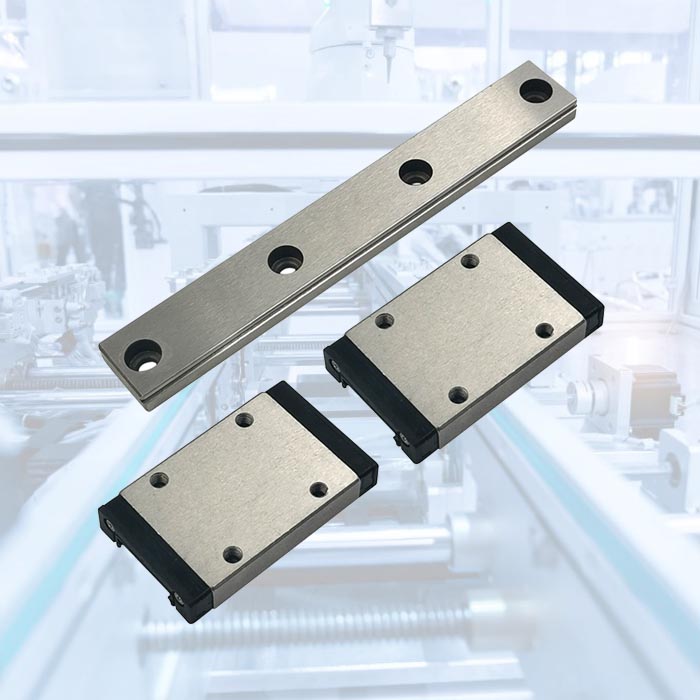

Product name:linear slide rail guide MGW7H
Series:MGW
Size:7
Block No:MGW7H, MGW7HZFC, MGW7HZ0C, MGW7HZ0H, MGW7HZ1C, MGW7HZ1H
Block Type: Long
Block preload:Light Clearance(ZF), Very Light Preload（Z0), Light Preload (Z1)
Precision code/Accuracy Classes: C,H

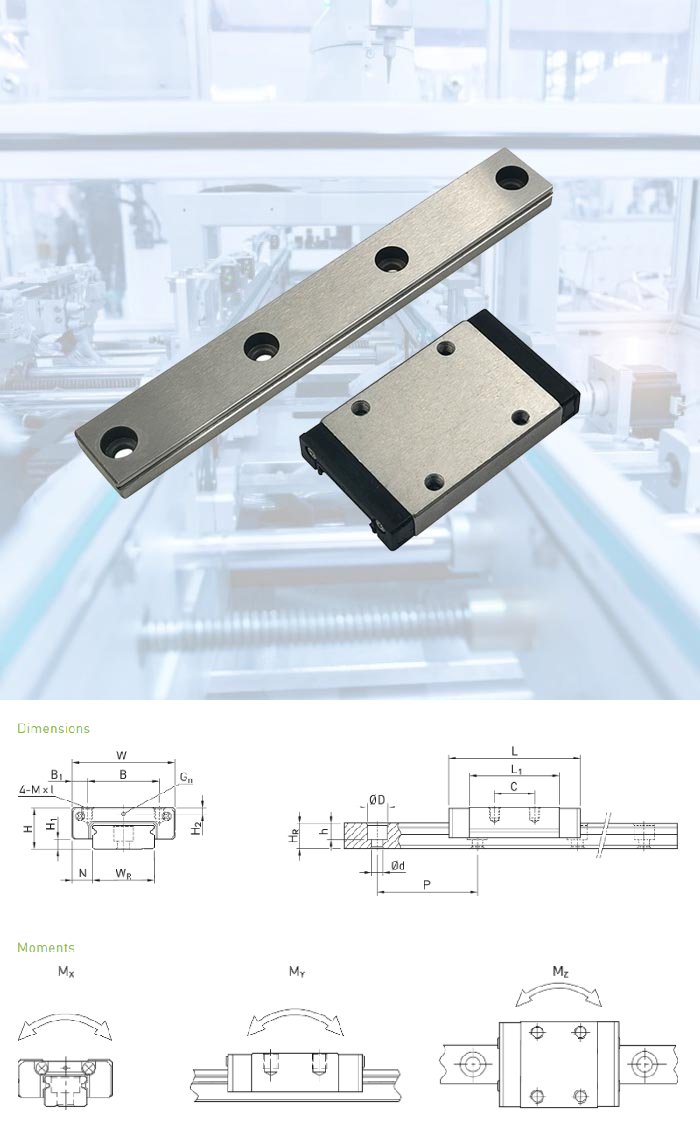

| H | Total height | 9 | mm |
| H1 | 1.9 | mm | |
| N | 5.5 | mm | |
| W | Block width | 25 | mm |
| B | 19 | mm | |
| B1 | 3 | mm | |
| C | 19 | ||
| L1 | 30.8 | mm | |
| L | Block length | 41 | mm |
| Gn | Ø1.2 | ||
| M | M3 | mm | |
| l | 3 | mm | |
| H2 | 1.85 | mm | |
| Mass | 0.03 | kg |
