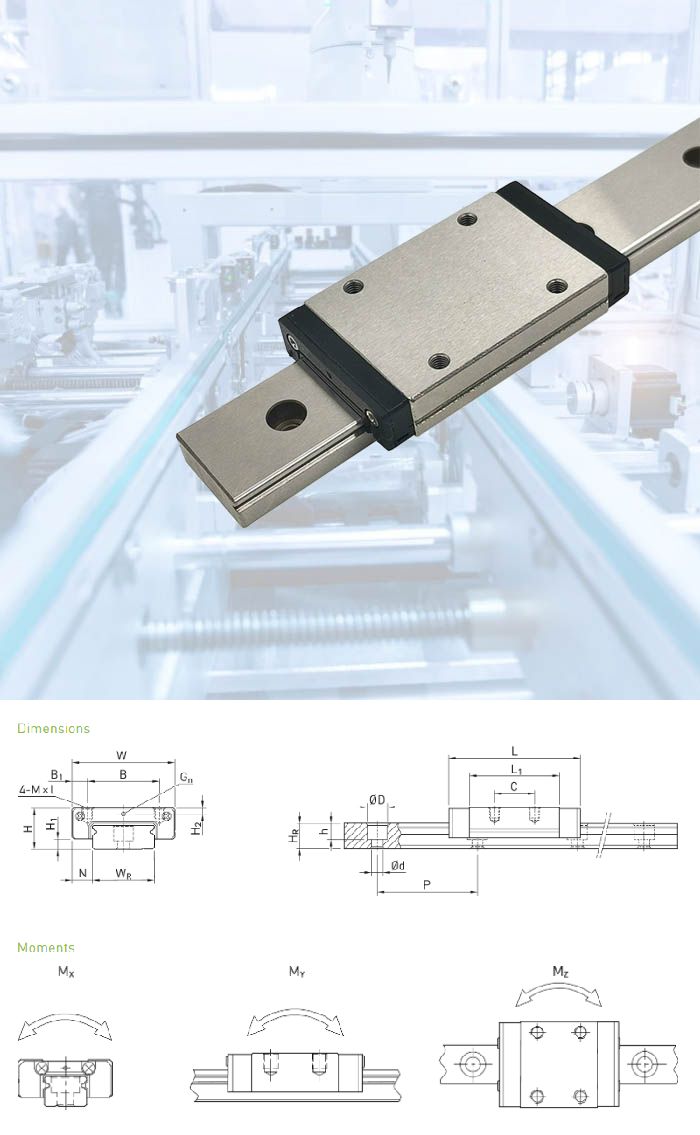

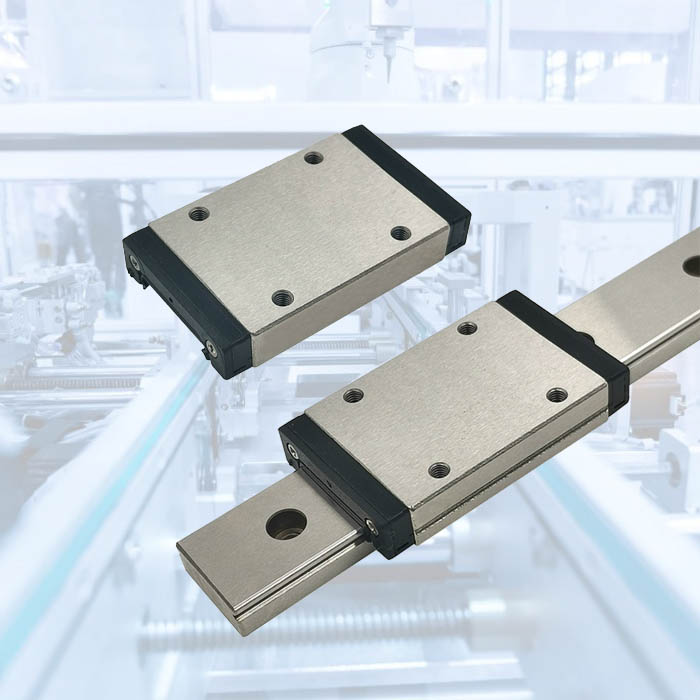

Product name:CNC linear rail guide MGW9H
Series:MGW
Size:9
Block No:MGW9H, MGW9HZFC, MGW9HZ0C, MGW9HZ0H, MGW9H7CZ1C, MGW9HZ1H
Block Type: Long
Block preload:Light Clearance(ZF), Very Light Preload（Z0), Light Preload (Z1)
Precision code/Accuracy Classes: C,H
| H | Total height | 12 | mm |
| H1 | 2.9 | mm | |
| N | 6 | mm | |
| W | Block width | 30 | mm |
| B | 23 | mm | |
| B1 | 3.5 | mm | |
| C | 24 | ||
| L1 | 38.5 | mm | |
| L | Block length | 50.7 | mm |
| Gn | Ø1.4 | ||
| M | M3 | mm | |
| l | 3 | mm | |
| H2 | 2.4 | mm | |
| Mass | 0.06 | kg |
