egh20 20mm hiwin linear guide linear slide rail

Features of egh20 20mm hiwin linear guide

The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited. The retainer is designed to hold the balls in the block even when it is removed from the rail.

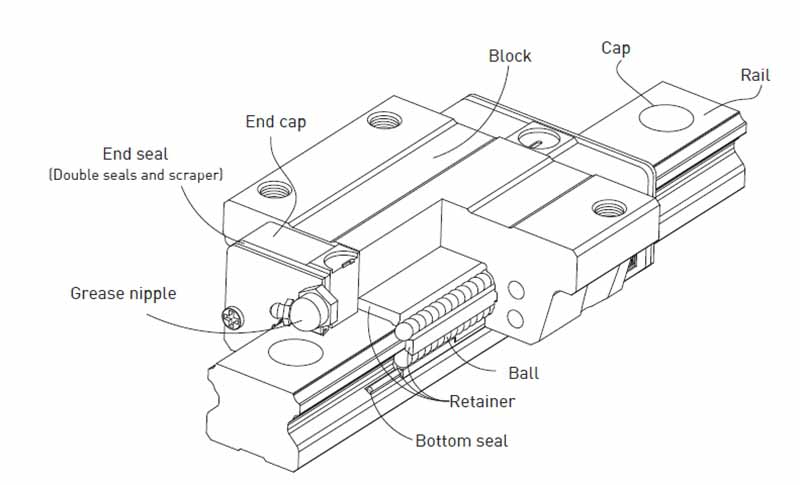

Construction of EG Series

Rolling circulation system: Block, rail, end cap and retainer
Lubrication system: Grease nipple and piping Joint
Dust protection system: End seal, bottom seal, cap and scraper

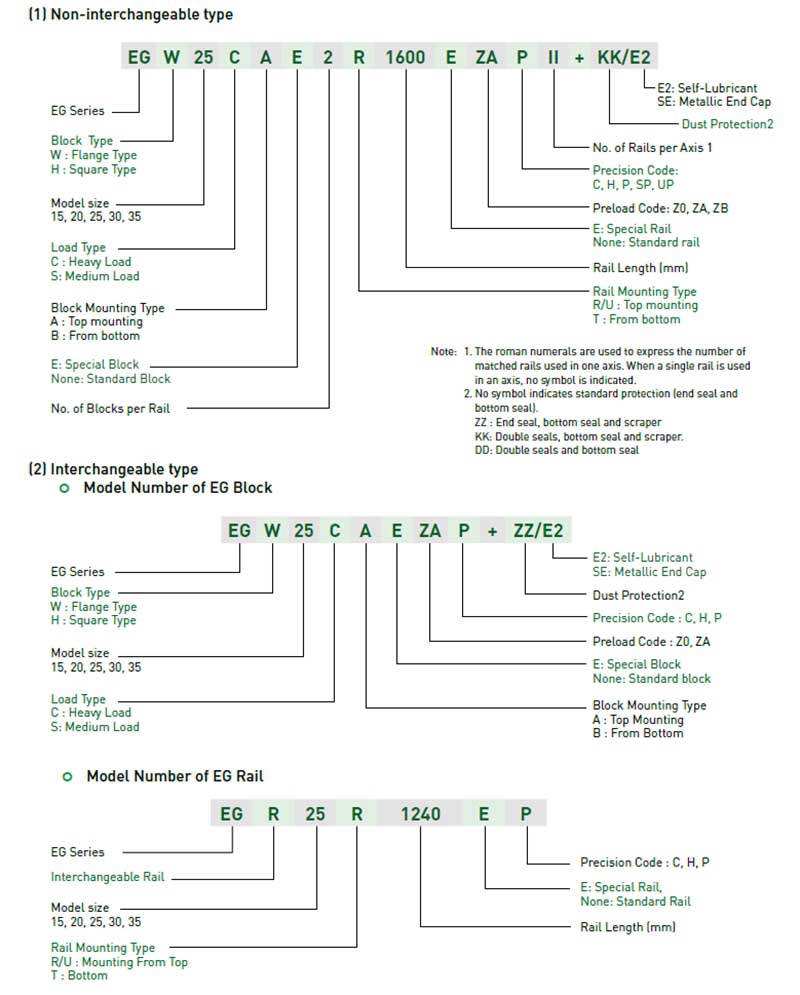

Model Number of EG Series egh20 20mm hiwin linear guide

EG series linear guideways are classified into non-interchangeable and interchangeable types. The sizes of these two types are the same as one another. The main difference is that the interchangeable type of blocks and rails can be freely exchanged and they can maintain P-class accuracy. Because of strict dimensional control, the interchangeable type linear guideways are a wise choice for customers when rails do not need to be matched for an axis. The model number of the EG series identifies the size, type, accuracy class, preload class, etc.

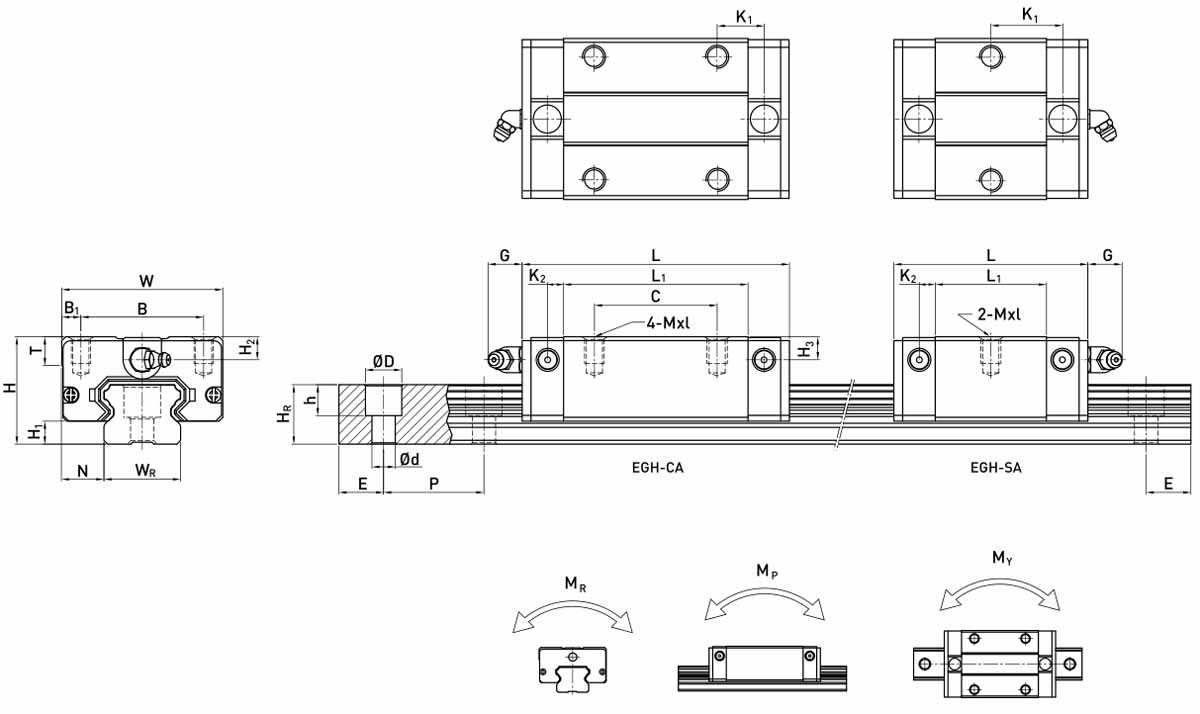

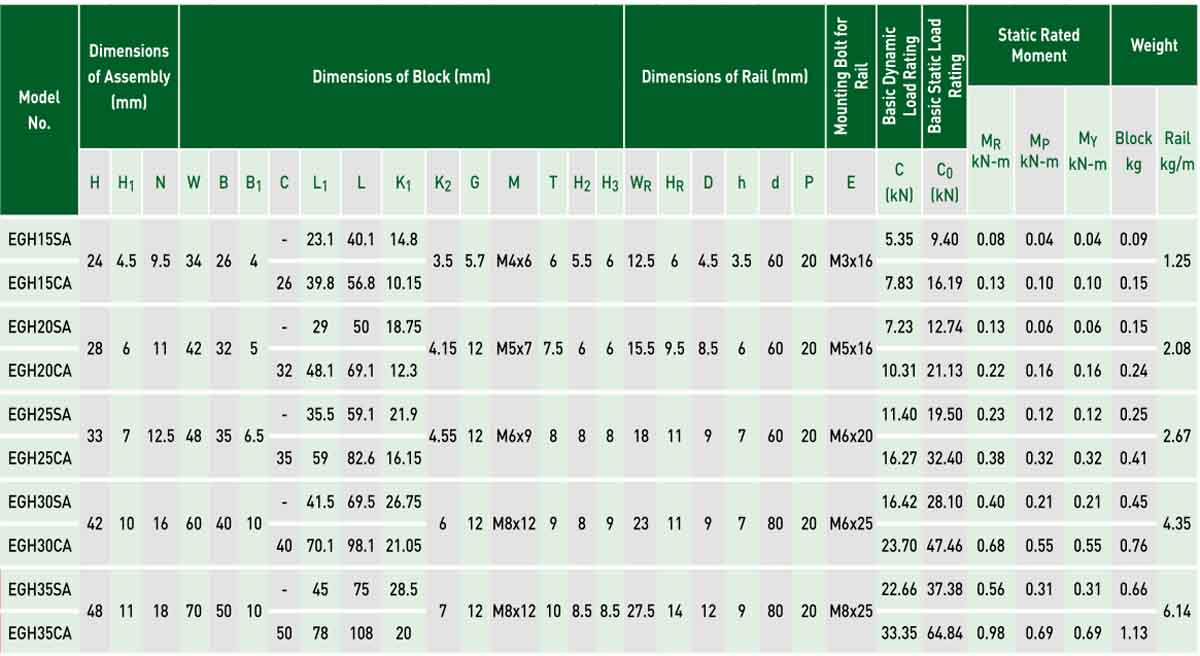

Datasheet of egh20 20mm hiwin linear guide

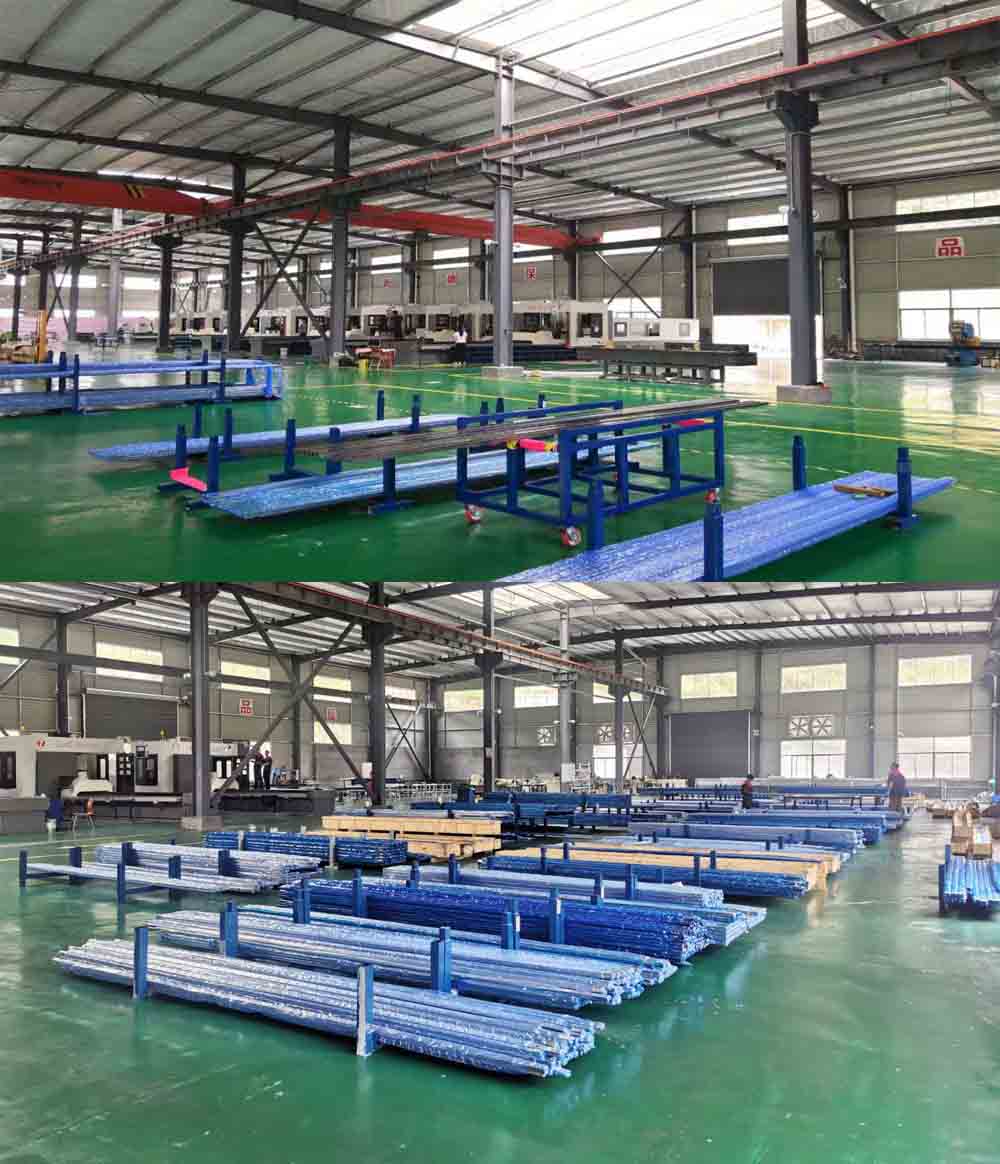

Our Factory
