Product Name:cnc machine guide rail EGR25 EG25 EGR25R
Series: EG
Rail Type: Interchangeable Rail
Model size: 25
Rail Mounting Type: R- Mounting From Top
Rail Length: according to customer request
Precision Code: C,H

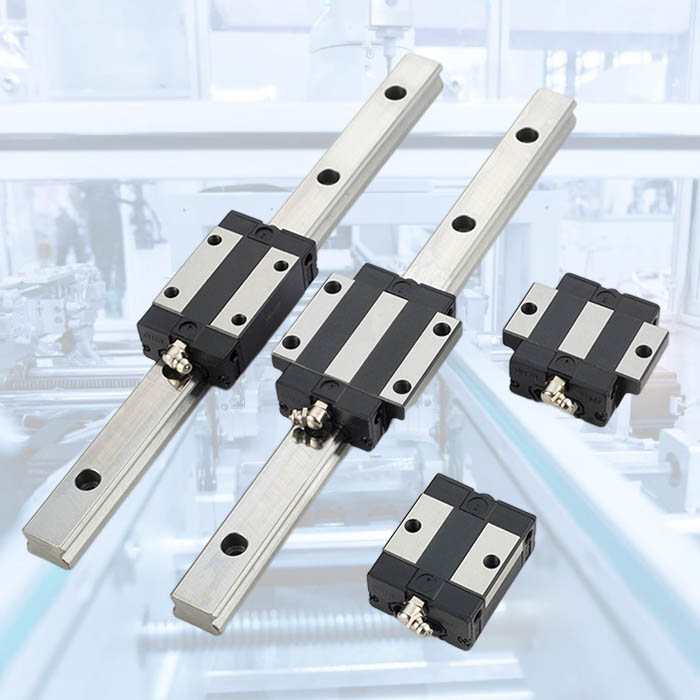

Suitable block: EGH25, EGW25

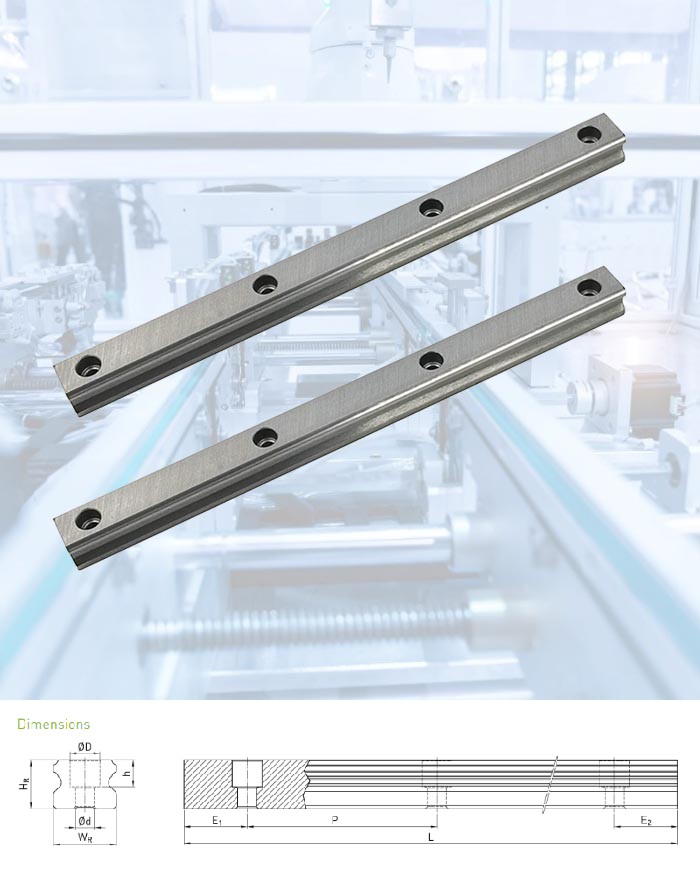

| WR | Rail width | 23 | mm |
| HR | Rail height | 18 | mm |
| D | 11 | mm | |
| h | 9 | mm | |
| d | 7 | mm | |
| P | Hole pitch | 60 | mm |
| Lmax | Max. length (E1 = E2 = P/2) | 3.900 | mm |
| Lmin | Min. length | 76 | mm |
| E1/2 min | 8 | mm | |
| E1/2 max | 52 | mm | |
| Weight | 2.67 | kg/m |
