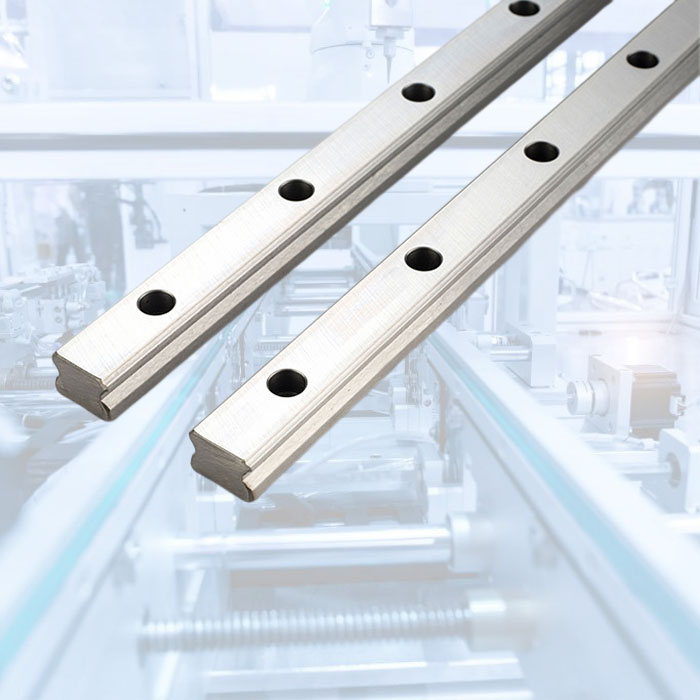

Product Name:cnc linear rail 600mm EGR15 EG15 EGR15R
Series: EG
Rail Type: Interchangeable Rail
Model size: 15
Rail Mounting Type: R- Mounting From Top
Rail Length: according to customer request
Precision Code: C,H
Suitable block: EGH15, EGW15

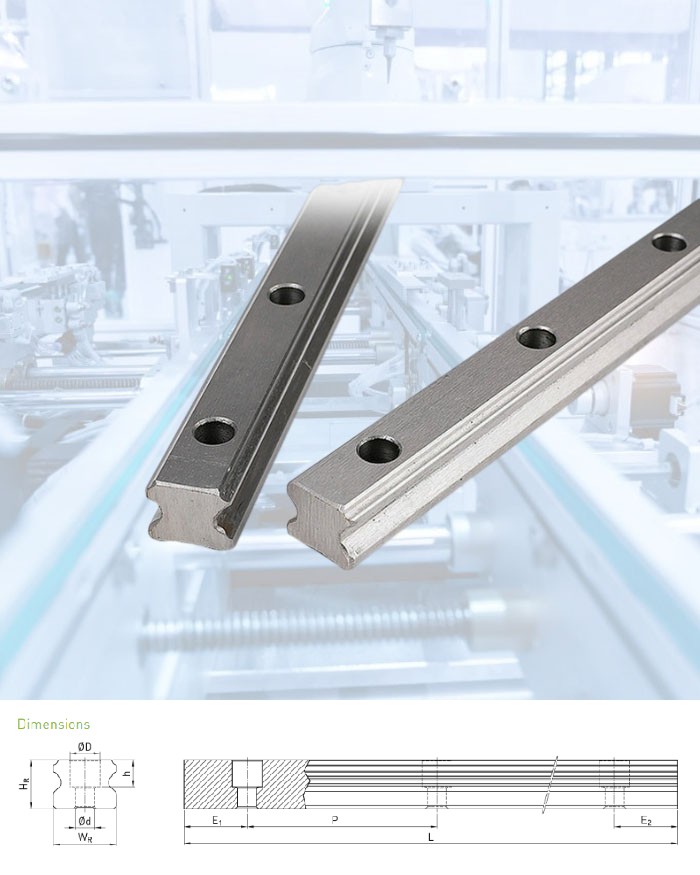

| WR | Rail width | 15 | mm |
| HR | Rail height | 12.5 | mm |
| D | 6 | mm | |
| h | 4.5 | mm | |
| d | 3.5 | mm | |
| P | Hole pitch | 60 | mm |
| Lmax | Max. length (E1 = E2 = P/2) | 3.900 | mm |
| Lmin | Min. length | 70 | mm |
| E1/2 min | 6 | mm | |
| E1/2 max | 54 | mm | |
| Weight | 1.25 | kg/m |
