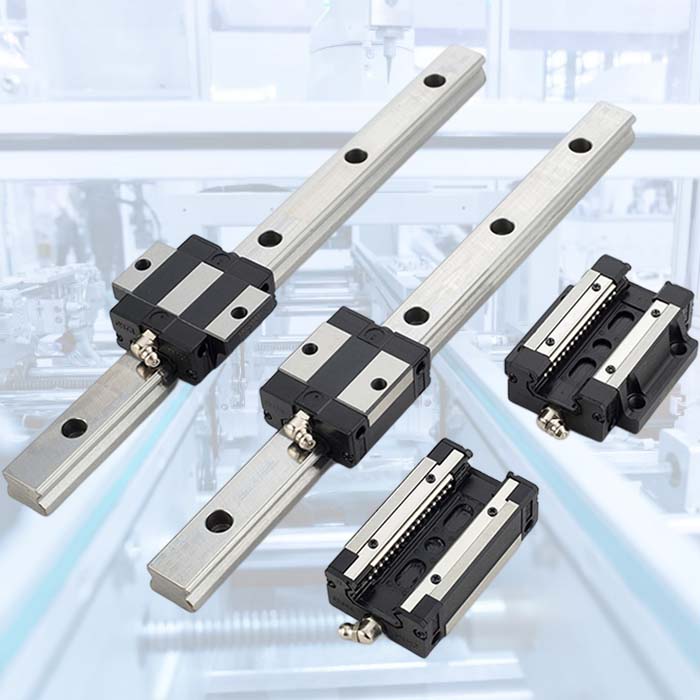

Product Name:linear rail 2200mm EGR30 EG30 EGR30R
Series: EG
Rail Type: Interchangeable Rail
Model size: 30
Rail Mounting Type: R- Mounting From Top
Rail Length: according to customer request
Precision Code: C,H
Suitable block: EGH30, EGW30

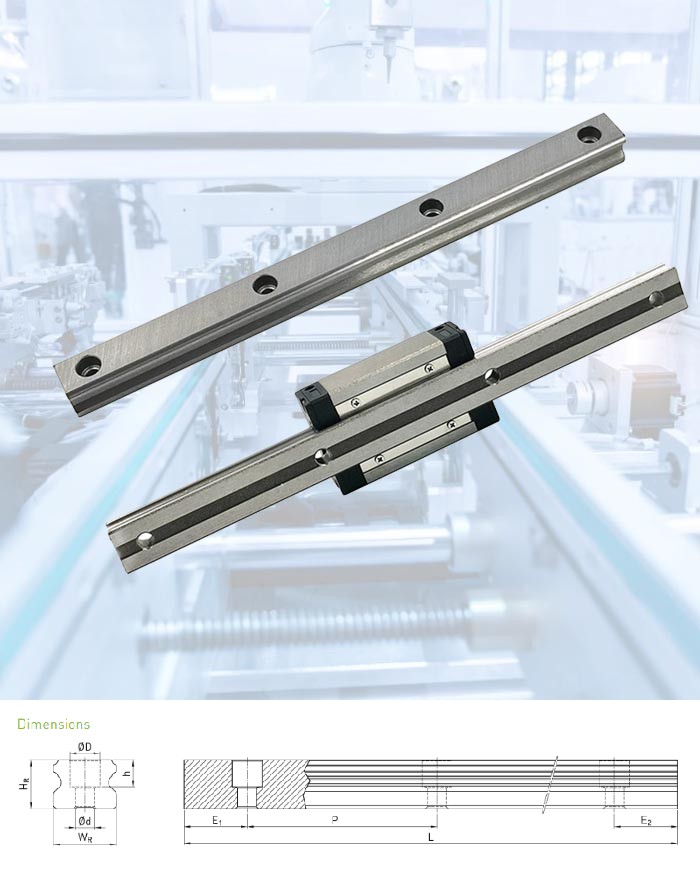

| WR | Rail width | 28 | mm |
| HR | Rail height | 23 | mm |
| D | 11 | mm | |
| h | 9 | mm | |
| d | 7 | mm | |
| P | Hole pitch | 80 | mm |
| Lmax | Max. length (E1 = E2 = P/2) | 3.920 | mm |
| Lmin | Min. length | 76 | mm |
| E1/2 min | 9 | mm | |
| E1/2 max | 71 | mm | |
| Weight | 4.35 | kg/m |
