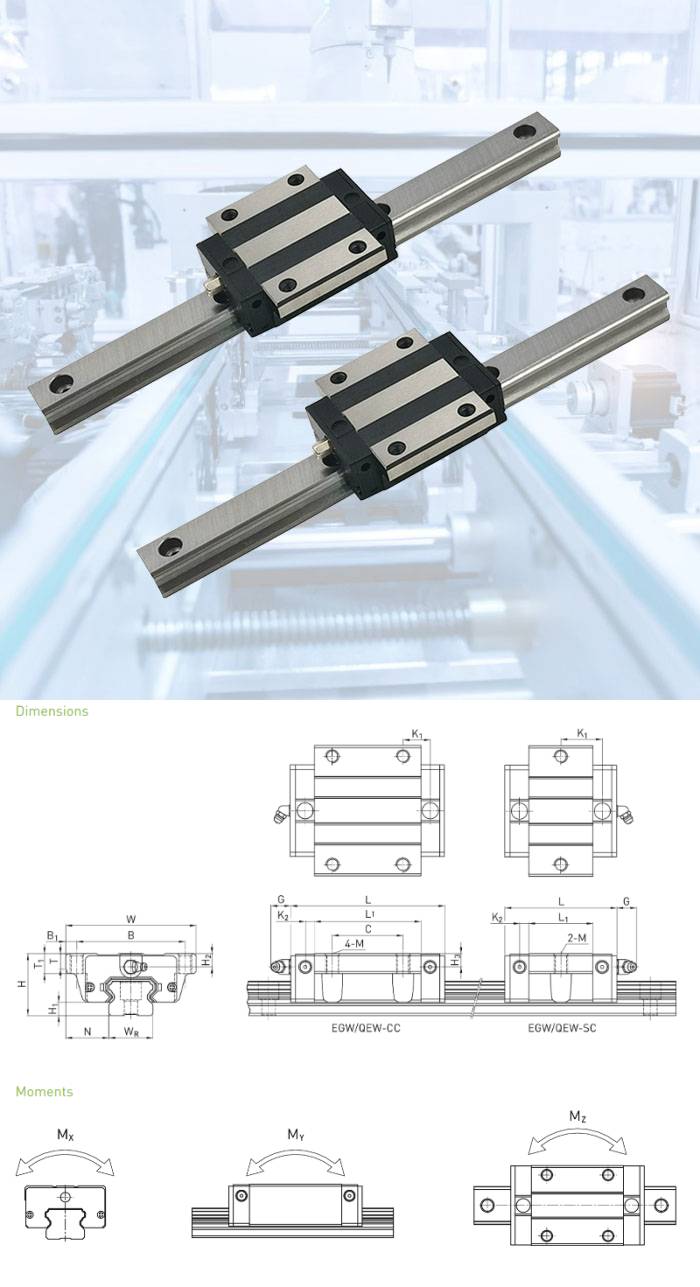

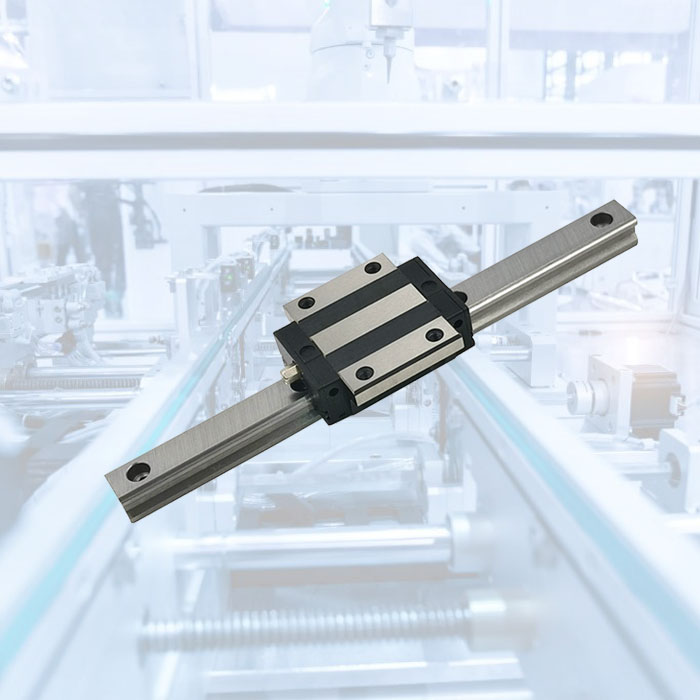

Product name:linear guide heavy load carriage block EGW20CA
Part No : EGW20CA, EGW20CAZ0C, EGW20CAZAC, EGW20CAZBC, EGW20CAZ0H, EGW20CAZAH, EGW20CAZBH
Series: EG series
Block Type: Flange type
Model Size : 20 mm
Load Type: Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Very Light Preload (Z0), Light Preload (ZA) , Medium Preload (ZB)
Precision code：C,H
| H | Total height | 28 | mm |
| H1 | 6 | mm | |
| N | 19.5 | mm | |
| W | Block width | 59 | mm |
| B | 49 | mm | |
| B1 | 5 | mm | |
| C | 32 | mm | |
| L1 | 49.1 | mm | |
| L | Block length | 69.1 | mm |
| K1 | 12.3 | mm | |
| K2 | 4.15 | mm | |
| G | 12 | mm | |
| M | M6 | ||
| T | 7 | mm | |
| T1 | 9 | mm | |
| H2 | 6 | mm | |
| H3 | 6 | mm | |
| Mass | 0.32 | kg |
