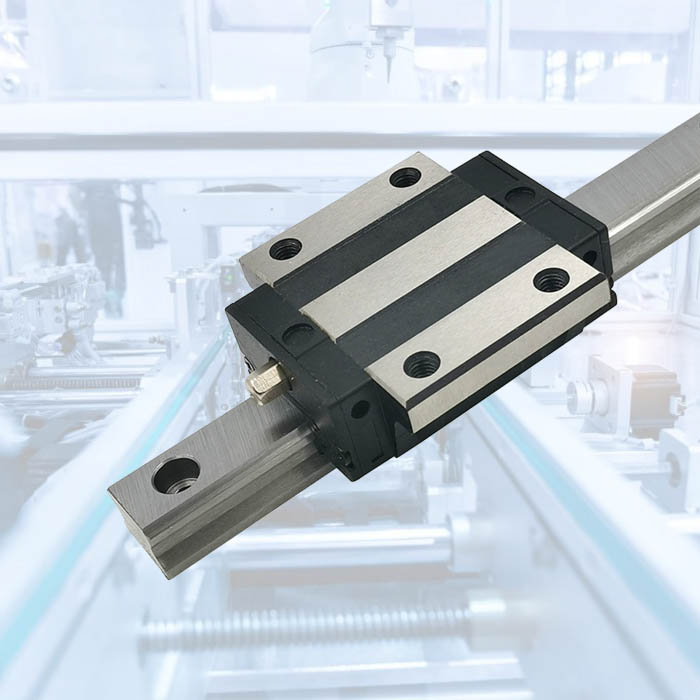

Product name:linear slide rail block EGW30CA
Part No : EGW30CA, EGW30CAZ0C, EGW30CAZAC, EGW30CAZBC, EGW30CAZ0H, EGW30CAZAH, EGW30CAZBH
Series: EG series
Block Type: Flange type
Model Size : 30 mm
Load Type: Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Very Light Preload (Z0), Light Preload (ZA) , Medium Preload (ZB)
Precision code：C,H

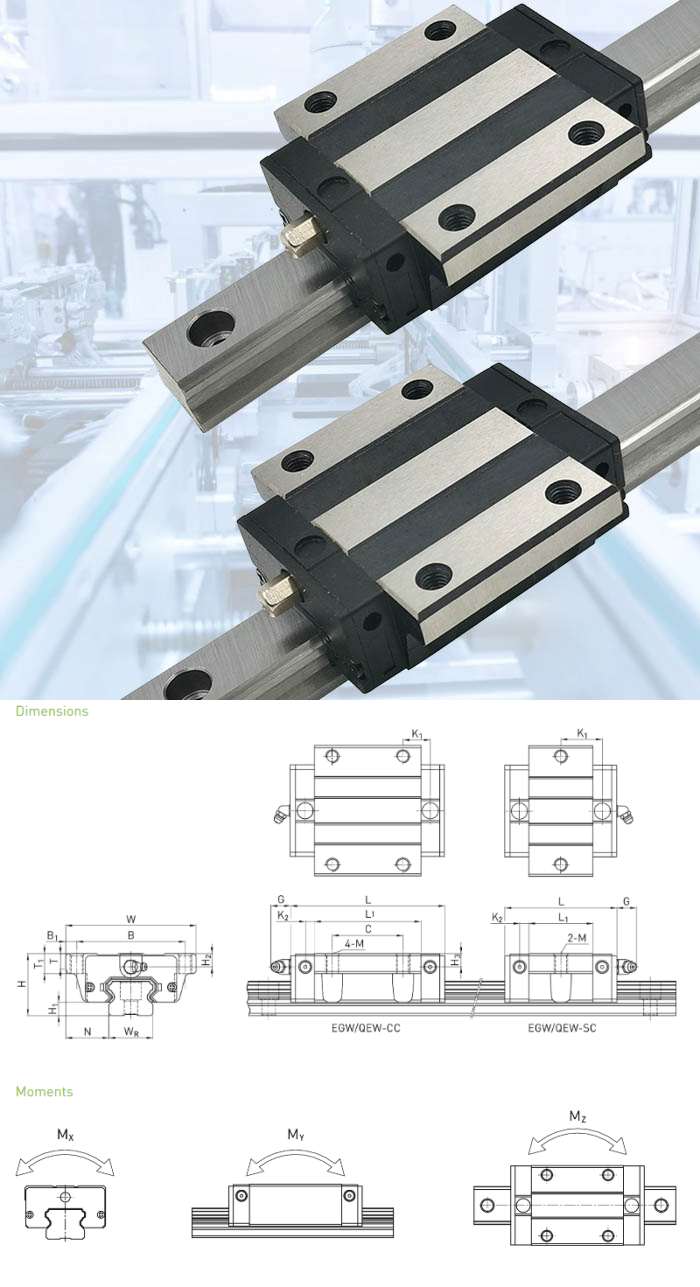

| H | Total height | 42 | mm |
| H1 | 10 | mm | |
| N | 31 | mm | |
| W | Block width | 90 | mm |
| B | 72 | mm | |
| B1 | 9 | mm | |
| C | 40 | mm | |
| L1 | 70.1 | mm | |
| L | Block length | 98.1 | mm |
| K1 | 21.05 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M10 | ||
| T | 7 | mm | |
| T1 | 10 | mm | |
| H2 | 8 | mm | |
| H3 | 9 | mm | |
| Mass | 1.04 | kg |
