Product name:china linear guide manufacturer EGW25CA
Part No : EGW25CA, EGW25CAZ0C, EGW25CAZAC, EGW25CAZBC, EGW25CAZ0H, EGW25CAZAH, EGW25CAZBH
Series: EG series
Block Type: Flange type
Model Size : 25 mm
Load Type: Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Very Light Preload (Z0), Light Preload (ZA) , Medium Preload (ZB)
Precision code：C,H

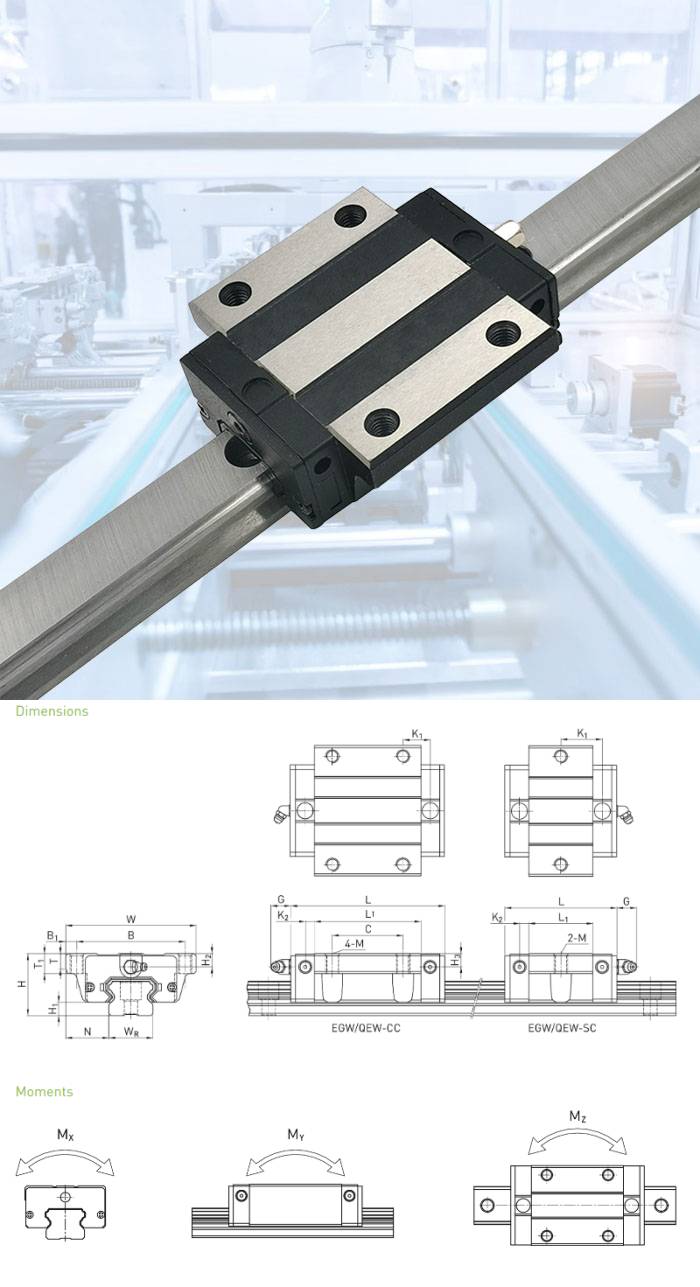

| H | Total height | 33 | mm |
| H1 | 7 | mm | |
| N | 25 | mm | |
| W | Block width | 73 | mm |
| B | 60 | mm | |
| B1 | 6.5 | mm | |
| C | 35 | mm | |
| L1 | 59 | mm | |
| L | Block length | 82.6 | mm |
| K1 | 16.15 | mm | |
| K2 | 4.55 | mm | |
| G | 12 | mm | |
| M | M8 | ||
| T | 7.5 | mm | |
| T1 | 10 | mm | |
| H2 | 8 | mm | |
| H3 | 8 | mm | |
| Mass | 0.59 | kg |
