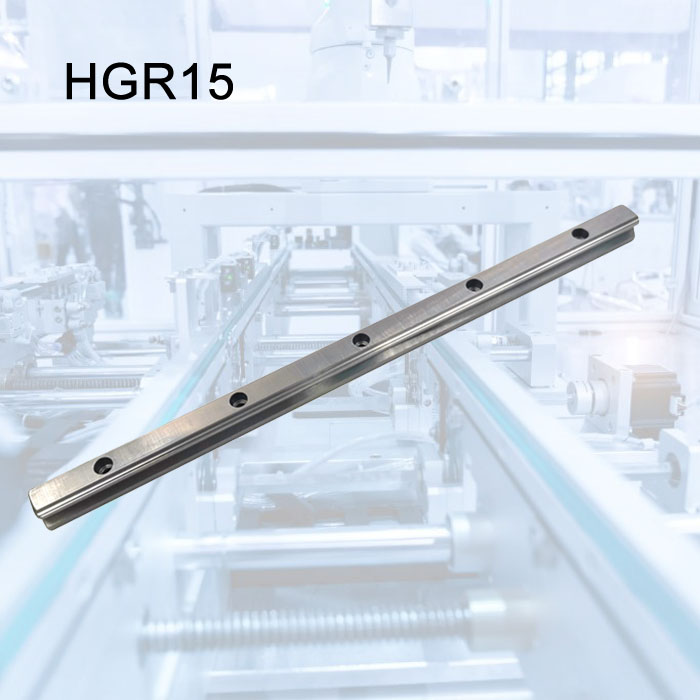

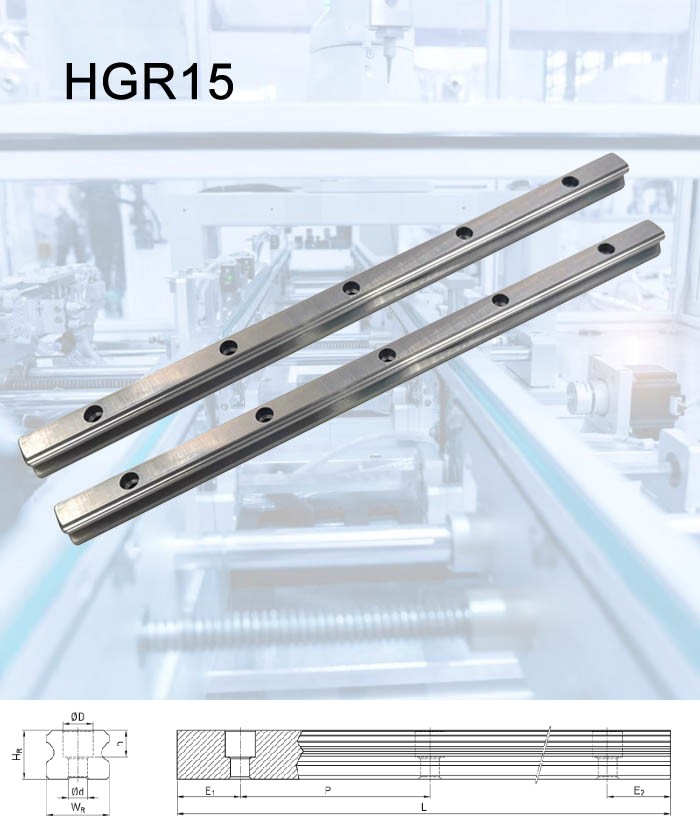

Product Name:linear rail 500mm HGR15 HG15 block HGH20 HGW20
Series: HG
Rail Type: Interchangeable Rail
Model size: 15
Rail Mounting Type: Mounting From Top
Rail Length: according to customer request
Precision Code: C,H
Suitable block: HGH15, HGW15
| WR | Rail width | 15 | mm |
| HR | Rail height | 15 | mm |
| D | 7.5 | mm | |
| h | 5.3 | mm | |
| d | 4.5 | mm | |
| P | Hole pitch | 60 | mm |
| Lmax | Max. length (E1 = E2 = P/2) | 3.900 | mm |
| Lmin | Min. length | 72 | mm |
| E1/2 min | 6 | mm | |
| E1/2 max | 54 | mm | |
| Weight | 1.45 | kg/m |
