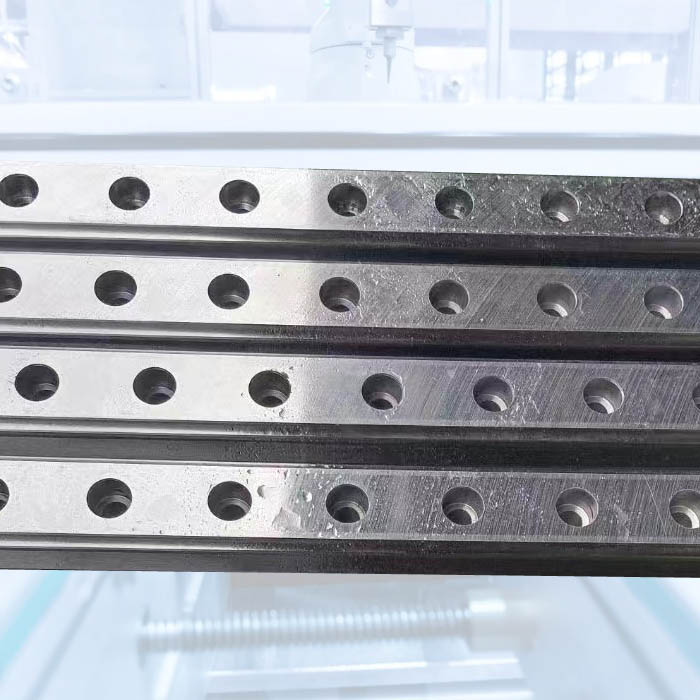

Product Name:cnc machine guide rail 45mm rail HGR45 HG45 HGH45 HGW45
Series: HG
Rail Type: Interchangeable Rail
Model size: 45
Rail Mounting Type: Mounting From Top
Rail Length: according to customer request
Precision Code: C,H
Suitable block: HGH45, HGW45

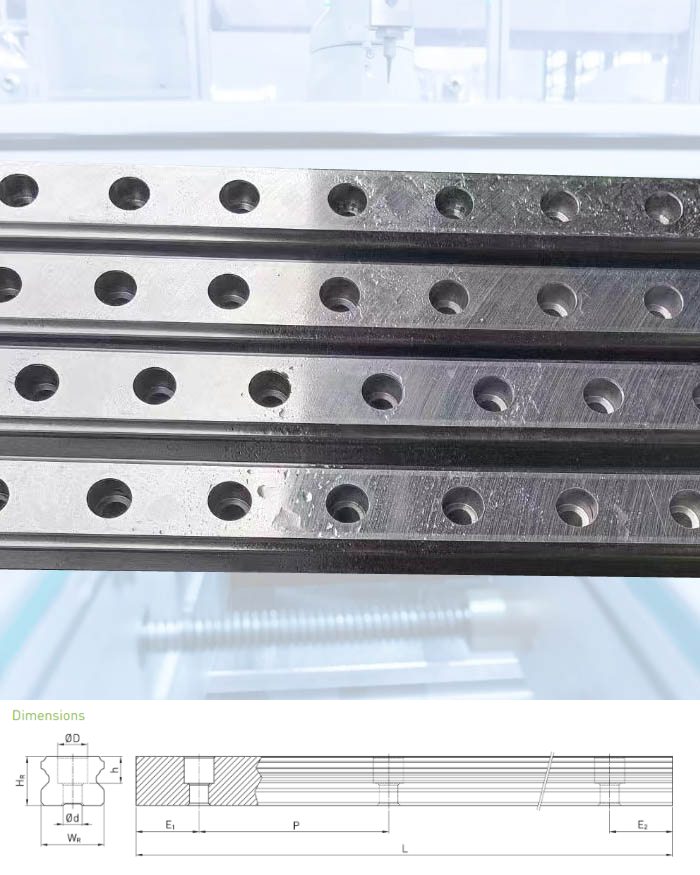

| WR | Rail width | 45 | mm |
| HR | Rail height | 38 | mm |
| D | 20 | mm | |
| h | 17 | mm | |
| d | 14 | mm | |
| P | Hole pitch | 105 | mm |
| Lmax | Max. length (E1 = E2 = P/2) | 3.885 | mm |
| Lmin | Min. length | 129 | mm |
| E1/2 min | 12 | mm | |
| E1/2 max | 93 | mm | |
| Weight | 10.41 | kg/m |
