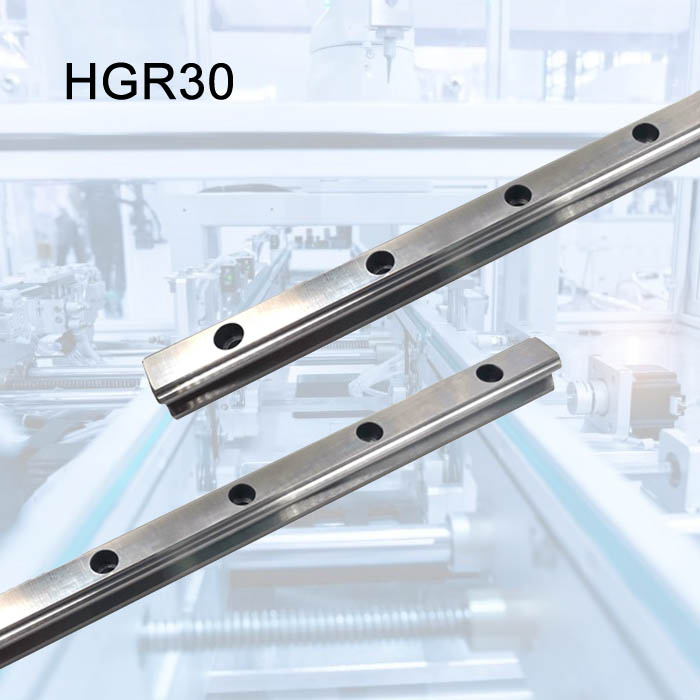

Product Name:30mm linear rail slider HGR30 HG30 HGH30 HGW30
Series: HG
Rail Type: Interchangeable Rail
Model size: 30
Rail Mounting Type: Mounting From Top
Rail Length: according to customer request
Precision Code: C,H
Suitable block: HGH30,HGW30

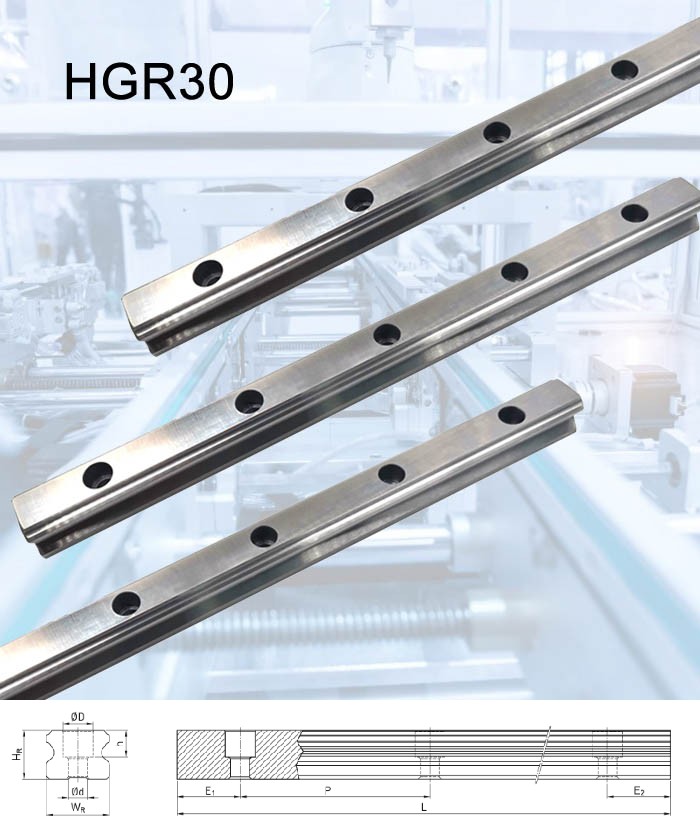

| WR | Rail width | 28 | mm |
| HR | Rail height | 26 | mm |
| D | 14 | mm | |
| h | 12 | mm | |
| d | 9 | mm | |
| P | Hole pitch | 80 | mm |
| Lmax | Max. length (E1 = E2 = P/2) | 3.920 | mm |
| Lmin | Min. length | 98 | mm |
| E1/2 min | 9 | mm | |
| E1/2 max | 71 | mm | |
| Weight | 4.47 | kg/m |
