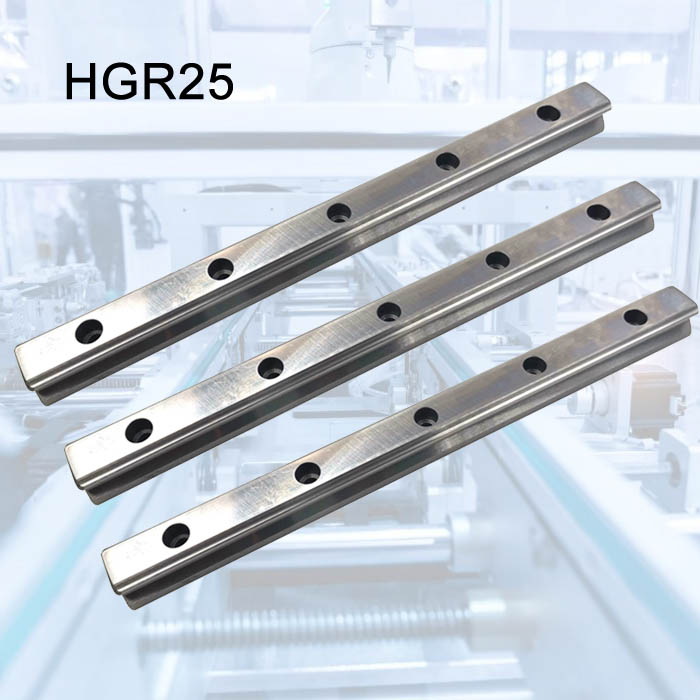

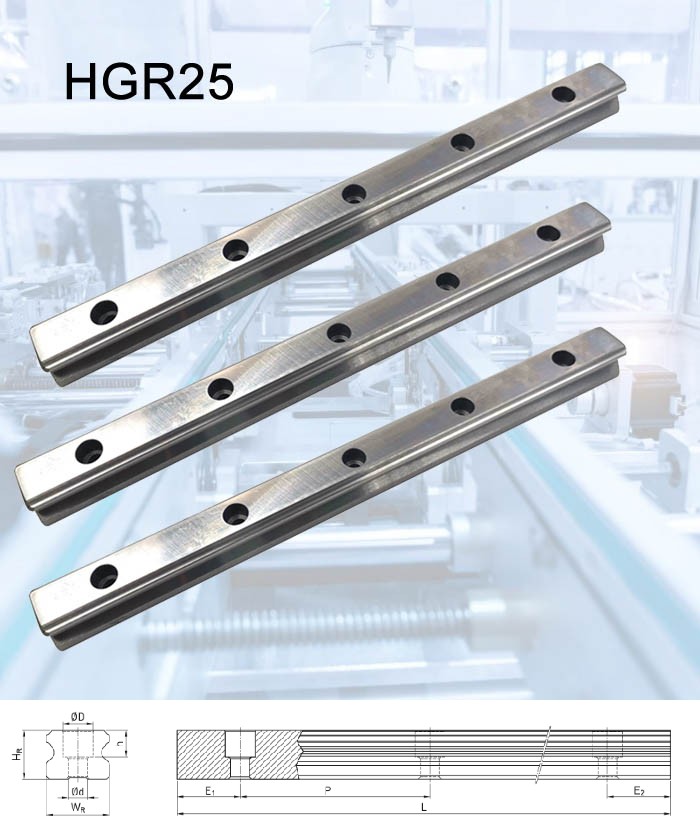

Product Name:25mm linear guide cnc rail HGR25 HG25 HGH25 HGW25
Series: HG
Rail Type: Interchangeable Rail
Model size: 25
Rail Mounting Type: Mounting From Top
Rail Length: according to customer request
Precision Code: C,H
Suitable block: HGH25,HGW25
| WR | Rail width | 23 | mm |
| HR | Rail height | 22 | mm |
| D | 11 | mm | |
| h | 9 | mm | |
| d | 7 | mm | |
| P | Hole pitch | 60 | mm |
| Lmax | Max. length (E1 = E2 = P/2) | 3.900 | mm |
| Lmin | Min. length | 76 | mm |
| E1/2 min | 8 | mm | |
| E1/2 max | 52 | mm | |
| Weight | 3.21 | kg/m |
